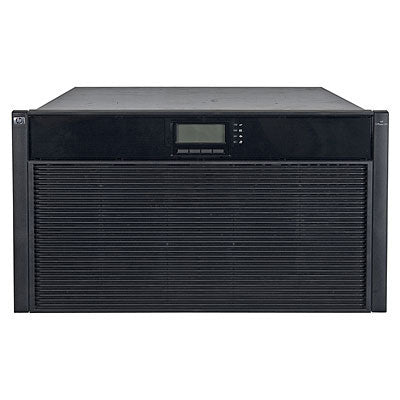

HPE R12000 uninterruptible power supply (UPS) 12 kVA 12000 W 2 AC outlet(s)

12000 Va, 12000 W, 6U, Black

Description

Does your power protection strategy need to meet the same high standards as your IT hardware? HP Rack-mountable Uninterruptable Power Systems focus on the three critical areas for uninterruptable power in dense data center environments: power density, superior battery management and serviceability. Combining unity rating with more true wattage in smaller form factors, the HP Rack-mountable UPS is highly dense. The On-line On Demand hybrid technology optimizes efficiency and heat output during general operation. All HP Rack-mountable UPSs ship with the free HP Power Protector Software that incorporates Enhanced Battery Management, an exclusive patented technology that doubles battery service life, which lowers your costs. Hot-swappable batteries and intelligent automatic bypass for continuous power improve serviceability.

Power Density, Battery Management and Serviceability
- HP Rack-mountable Uninterruptable Power Systems provide up to 12,000 watts (W) of power in a 6-U rack form factor. This equates to 2 KW per U space, which leads the industry in power density.
- HP Rack-mountable UPSs offer the ability to automatically correct for over/under voltages protecting valuable equipment
- The HP Rack-mountable Uninterruptable Power Systems incorporate Enhanced Battery Management: an exclusive, patented technology that doubles battery service life, extends battery recharge time, and provides advance notice of pending battery failure
- HP Rack-mountable Uninterruptable Power Systems Enhanced Battery Management, gives you a lower total cost of ownership by receiving the best in the industry protection for your critical equipment
- HP Rack-mountable Uninterruptable Power Systems have a uniquely designed architecture, consisting of separate, hot swappable battery and electronics modules. The built-in intelligent automatic bypass feature offers continuous power to the connected load even if the modules are being replaced.

Enhanced System Flexibility with HP Option Cards
Enhanced System Flexibility with HP Option Cards: The UPS R3000 XR models are equipped with a standard serial communications port via an internal slot. This option slot supports two option cards, the Six Port Card and the SNMP / Serial Port Card. These option cards seamlessly integrate into the back of the R3000 XR and provide increased system flexibility.

Specifications

Power
Output power	12000 W
Input operation voltage (min)	380 V
Input operation voltage (max)	415 V
Output operation voltage (max)	400 V
Efficiency	97%
Emergency Power Off (EPO)	Yes
Output power capacity	12 kVA
Performance
Number of phases	3
LED indicators	Yes
Features
Output power	12000 W
Input operation voltage (min)	380 V
Input operation voltage (max)	415 V
Output operation voltage (max)	400 V
Efficiency	97%
Emergency Power Off (EPO)	Yes
Output power capacity	12 kVA
Input frequency	50/60 Hz
Number of phases	3
Ports & interfaces
AC outlets quantity	2 AC outlet(s)
AC outlet types	IEC 309 516C6
Number of output IEC jumpers	2
Battery
Typical backup time at half load	13 min
Typical backup time at full load	5 min
Hot-swap battery	Yes
Design
Rack capacity	6U
Form factor	Rackmount
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	10 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3300 m
Packaging data
Package dimensions (WxDxH)	635 x 965 x 1169 mm
Package weight	182 kg
Weight & dimensions
Weight	61 kg
Width	441 mm
Package weight	182 kg
Height	261 mm
Depth	660 mm
Other features
Number of phases	3
Package dimensions (WxDxH)	635 x 965 x 1169 mm
