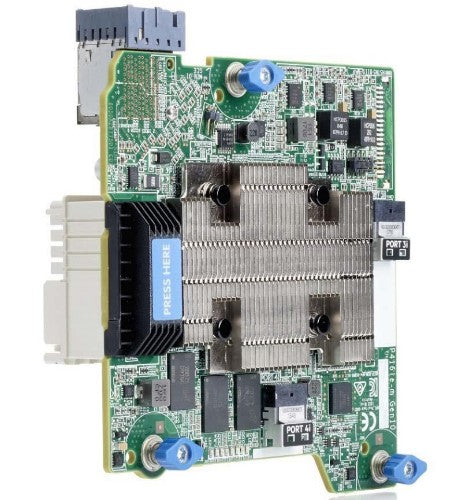

HPE SmartArray P416ie-m SR Gen10 RAID controller PCI Express x8 3.0 12 Gbit/s

Smart Array P416ie-m SR Gen10 (8 Int 8 Ext Lanes/2GB Cache) 12G SAS Mezzanine Controller

Description

Are you looking for an enterprise-level controller to maximize performance and storage capacity and to connect to the HPE Synergy D3940 Gen10 Storage Module? The HPE Smart Array P416ie-m SR Gen10 Controller, supporting 12 Gb/s SAS and PCIe 3.0, provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. It has eight internal SAS lanes and eight external SAS lanes, allowing connection to the SAS or SATA drives in the Synergy compute module and to the drives inside the HPE Synergy D3940. This controller supports Mixed Mode operations of RAID and HBA simultaneously, and offers encryption for data-at rest on any drive. The HPE Smart Array Gen10 controllers are supported by the HPE Smart Storage Battery, which supports multiple devices and is sold separately.

Features

Increased Performance for Faster Data Insights
- The HPE Smart Array P416ie-m SR Gen10 Controller is an enterprise-class controller that increases performance in messaging, database, or general server applications and delivers 12 Gb/s SAS connectivity on HPE Synergy Gen10 Compute Modules when connected to 12 Gb/s internal storage devices.
- Increases performance with 2 GB Flash-Backed Write Cache and reduces latency in write-intensive applications that require heavy logging such as databases.
- Enhances performance in storage environments where data is read repeatedly from a large number of SSDs by using HPE SSD Smart Path to create a faster I/O path between the controller and SSD.
- Accelerate access to data by up to 4X in HDD environments by caching hot data onto SSDs with HPE Smart Array SR SmartCache (optional license).

Built-in Reliability and Security
- The HPE Smart Array P416ie-m SR Gen10 Controller protects data-at-rest on any drive attached to the controller with HPE Smart Array SR Secure Encryption (optional license).
- Complies with regulations for sensitive data, such as HIPAA and Sarbanes-Oxley with HPE Smart Array SR Secure Encryption—IUT with expected FIPS 140-2 Level 1 validation complete in 2018.
- Preserve data integrity with HPE SmartSSD Wear Gauge, which alerts you to potential drive issues before a drive fails.
- Long-term data retention with 2 GB Flash-Backed Write Cache for improved data reliability.

Improved Efficiency and Storage Management
- The HPE Smart Array P416ie-m SR Gen10 Controller has increased flexibility with Mixed Mode which operates in RAID and HBA simultaneously.
- Delivers data migration between Synergy Compute Modules and the HPE Synergy D3940 Storage Module.

Specifications

Ports & interfaces
Supported storage drive interfaces	SAS, Serial ATA
External SAS ports	8
Internal SAS ports	8
Host interface	PCI Express x8
PCI Express slots version	3.0
Performance
RAID levels	0, 1, 1 ADM, 5, 6, 10, 50, 60
Data transfer rate	12 Gbit/s
Compatible products	Synergy 480 Gen10 Synergy 660 Gen10 Synergy D3940 Gen10
Harmonized System (HS) code	84733080
Data transmission
Data transfer rate	12 Gbit/s
Technical details
RAID levels	0, 1, 1 ADM, 5, 6, 10, 50, 60
Logistics data
Harmonized System (HS) code	84733080
