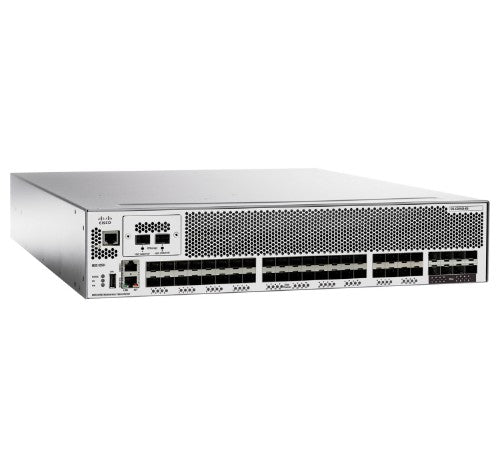

HPE SN6500C Managed 2U Metallic

SN6500C 16Gb FC/FCIP/FCoE Multi-service Switch

Description

Do you need a multiservice switch that supports multiple protocols?

The HPE C-series SN6500C 16Gb FC/FCIP/FCoE Multiservice Switch (Cisco MDS 9250i) is a flexible switch for deploying SAN extension solutions, distributed intelligent fabric services and cost-effective multiprotocol connectivity for open systems. It offers advanced capabilities available only to director class switches. With up to forty 16 Gb Fibre Channel ports, two 10 Gigabit Ethernet IP storage services ports, and eight 10GbE FC over Ethernet (FCoE) ports in a fixed 2U form factor, it is an ideal multiservice switch for department or remote branch office SANs . It connects both existing FC networks and protects your current SAN switch investments. SAN Extension over IP is enabled on the two fixed 10GbE IP storage services ports, enabling FC over IP (FCIP) and compression without the need for additional licenses. Using the eight FCoE ports, the switch attaches directly to FCoE and FC storage devices.

Features

High Density SAN Consolidation with Integrated Multiprotocol Support
- The HPE C-series SN6500C 16 Gb FC/FCIP/FCoE Multiservice Switch ships in a base offering of twenty 16 Gb Fibre Channel (FC) ports for high-performance SAN connectivity, two 10GbE IP storage service ports and eight 10GbE FCoE ports. The base version is scalable to forty 16 Gb FC ports.
- The switch connects to native FC SANs for investment protection as well as offering a single compact solution for native FC gateway opportunities with FCoE (Converged Fabric), enabling unified network fabric connectivity.

Remote SAN Extension with High-Performance FCIP
- The HPE C-series SN6500C 16 Gb FC/FCIP/FCoE Multiservice Switch provides FCIP support for business continuity and disaster recovery either as a standalone device as well as an FCIP SAN extension switch for MDS 9700 series (HPE SN8500C) Directors.
- This switch breaks the distance barriers of current Fibre Channel (FC) solutions with support for FCIP, enabling interconnection of SAN islands over extended distances.
- You will get dramatically enhanced hardware-based FCIP compression performance for both high-bandwidth and low-bandwidth links, which provides immediate cost saving for expensive WAN infrastructure. Used with other hardware based encryption it provides high-performance SAN extension capabilities.
- The HPE C-series SN6500C 16Gb Multiservice Switch supports hardware-based IPsec encryption for improved transmission security of sensitive data over extended distances. Hardware enablement of IPsec helps to provide high throughput.

Comprehensive Robust Network Security and Optimization
- The HPE C-series SN6500C 16 Gb FC/FCIP/FCoE Multiservice Switch supports hardware-based data compression and tape acceleration to enhance remote backup operations and allow more data to be transferred over WAN connections more cost effectively. Shift your budget from operations to innovation.
- The switch supports a variety of security features to support protection of your customer data. A variety of security techniques are supported such as encryption, switch authentication, data integrity, hardware-enforced zoning and more across multiprotocol connectivity.
- The HPE C-series SN6500C 16Gb Multiservice Switch offers a highly available solution that protects data from unauthorized access and keeps data private while meeting regulatory compliance and avoiding financial consequences of a security breach.

Specifications

Optical fiber
Fiber optic connector	SFP+
Technical details
Form factor	2U
Product colour	Metallic
Rack mounting	Yes
Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	No
Fiber ports quantity	40
Fiber optic connector	SFP+
Console port	RS-232
Network
Auto-sensing	Yes
Networking standards	IEEE 802.1Q, IEEE 802.3
Ethernet LAN data rates	10000 Mbit/s
10G support	Yes
Data transmission
Switching capacity	536 Gbit/s
Security
Security algorithms	256-bit AES
Authentication type	RADIUS
Protocols
Management protocols	SNMP 3
Design
Form factor	2U
Product colour	Metallic
Rack mounting	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	300 W
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 75 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Operating altitude	-60 - 2000 m
Weight & dimensions
Width	437.4 mm
Depth	543.6 mm
Height	97.5 mm
Weight	10.2 kg
Other features
Ethernet LAN data rates	10000 Mbit/s
