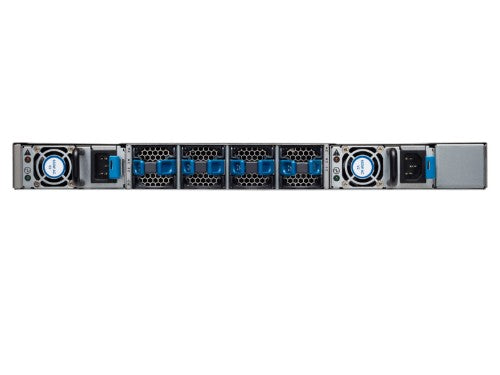

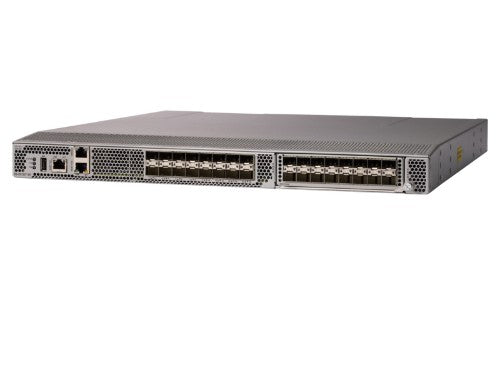

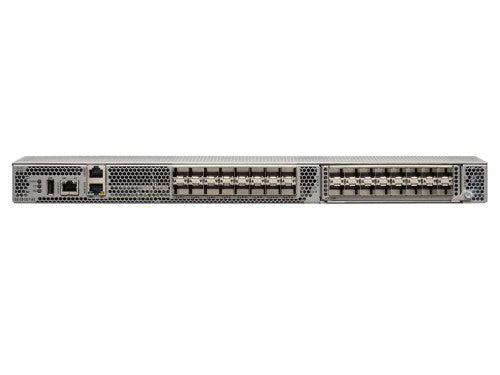

HPE SN6610C Managed 1U Grey

SN6610C 32Gb 8-port 16Gb Short Wave SFP+ Fibre Channel Switch

Description

Are you looking for a high performance Fibre Channel switch for the modern storage area network? The HPE StoreFabric SN6610C Fibre Channel Switch delivers 32 Gbps Fibre Channel (FC) switching providing high-speed FC connectivity from the server rack to the SAN core. It empowers midsize, enterprise and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the dual benefits of greater bandwidth and consolidation. The switch offers state-of-art analytics and telemetry capability built into its ASIC platform. For increased flexibility, the HPE StoreFabric SN6610C Fibre Channel Switch scales from 8- to 32-ports. Additionally, investing in this switch for the lower-speed (8 or 16 Gbps) server rack gives you the flexibility to upgrade to 32 Gbps performance in the future.

Features

High Performance for All-flash Arrays and Virtualized Workloads
- The HPE StoreFabric SN6610C Fibre Channel Switch provides consistent 32 Gbps low-latency performance across every FC port on the switch.
- Delivers increased performance with an aggregate bandwidth of 1024 Gbps for growing and dynamic workloads.
- Delivers the same outstanding availability and reliability as previous generation HPE StoreFabric SN6010C Fibre Channel Switch by providing optional redundancy on all major components such as power supplies and fans.
- Provides visibility into each virtual machine logged into the fabric through HBAs capable of priority tagging the Virtual Machine Identifier (VMID) on every FC frame.
- On-board hardware that protects the entire system from malicious attacks by limiting access to critical components such as the bootloader, system image loader and Joint Test Action Group (JTAG) interface.

Investment Protection
- The HPE StoreFabric SN6610C Fibre Channel Switch provides an option to deploy as few as eight 32 Gbps Fibre Channel (FC) ports which can grow from 8 ports to 16 ports, and thereafter with a port expansion module. Expanding up to a maximum of 32 ports.
- Configurable with 16 Gb FC SFP+ or 32 Gb FC SFP+ optics to accommodate your budget while being fully prepared for tomorrow.
- Lower initial investment and power consumption for entry-level configurations of up to 8 ports compared to a fully loaded 32-port switch.

Intelligent Network Services for Modern SAN
- The HPE StoreFabric SN6610C Fibre Channel Switch supports slow-drain detection and isolation, VSAN technology, access control lists for hardware-based intelligent frame processing, smartzoning and other various services.
- Includes VSAN technology provides a cost-effective way to consolidate resources while providing high resiliency to potential fabric disruptions.
- Provides powerful Representational State Transfer (REST) and NX-API capabilities to enable flexible and rapid programming of utilities for the SAN.

Easy Manageability
- The HPE StoreFabric SN6610C Fibre Channel Switch provides intelligent diagnostics tools such as inter-switch link diagnostics, read diagnostic parameters, protocol decoding, network analysis tools, and others for improved reliability, faster problem resolution, and reduced service costs.
- Consolidate separate physical SAN fabrics into one large fabric for ease of management and reduced total cost of ownership.
- Cisco Data Center Network Manager (Essentials Edition) software, included with switch, provides a centralized management tool with task-based wizards. Additional advanced features are available with the DCNM licensed version, sold separately.

Specifications

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fiber ports quantity	8
Fiber optic connector	SFP+
Network
Auto-sensing	Yes
Data transmission
MAC address table	0 entries
Switching capacity	1024 Gbit/s
Security
SSH/SSL support	Yes
Security algorithms	128-bit AES
Authentication type	RADIUS
Protocols
Management protocols	SNMP 1, SNMP 3, SMI-S, SSH, SSH-2, CLI
Design
Form factor	1U
Product colour	Grey
Rack mounting	Yes
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	650 W
Number of power supply units	2
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Operating altitude	-60 - 2000 m
Weight & dimensions
Width	435.9 mm
Depth	415 mm
Height	43.7 mm
Optical fiber
Fiber optic connector	SFP+
Technical details
Form factor	1U
Product colour	Grey
Rack mounting	Yes
