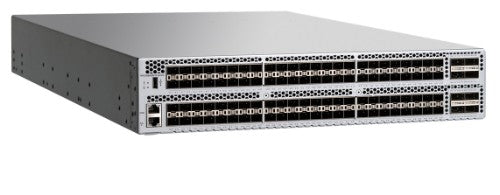

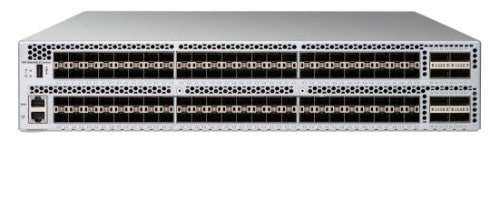

HPE SN6650B 32Gb 128/48 48-port 32Gb Short Wave SFP+ Integrated Fibre Channel Switch

SN6650B 32Gb 128/48 48-port 32Gb Short Wave SFP+ Integrated Fibre Channel Switch

Reasons To Buy

Flash-Ready Performance

The HPE Storage Fibre Channel Switch B-series SN6650B supports up to 4Tbps bandwidth with very low latency < 780 ns (including FEC) through the use of cut-through switching.
Shatters application performance barriers with up to 200 million IOPS utilizing up to 566 million frame switching per second.
Delivers up to 384Gbps of combined in-flight encryption and 192Gbps of in-flight compression to improve bandwidth and help minimize the risk of unauthorized access.
Built-in ASIC enables I/O insight into NVMe/FC storage traffic with VM-level granularity to validate and fine-tune performance for better efficiency.
Internal fault-tolerant and enterprise-class RAS features help minimize downtime to support growing mission-critical environments.

Easy Manageability with Simple and Open Automation

The HPE Storage Fibre Channel Switch B-series SN6650B provides tools to simplify and automate operations enabling DevOps resources to orchestrate SAN resources through open APIs and the Ansible automation engine.
Easier integration into third-party tools utilizing a library of templates and scripts (REST APIs) to help deploy applications faster.
Supports I/O Insight and VM Insight (included in HPE Power Pack+ software) to provide deeper visibility into FC/NVMe traffic.

Enterprise-class Scalability

HPE Storage Fibre Channel Switch B-series SN6650B delivers industry-leading port density with 128 Fibre Channel ports in an elegant 2U form factor.
Provides 96 32Gb SFP+ ports and eight 4×32Gb QSFP ports to enable data centers to scale efficiently and deliver more connectivity with fewer switches.
Offers cost-effective pay-as-you-grow scalability, expanding from 48 to 128 ports with flexible Ports on Demand (PoD).
Supports 32/16/10/8/4 Gb Fibre Channel.

Description

Is there a need to modernize your storage network? The all-flash data center and emerging NVMe storage requires a modern storage network that can keep up with pace of innovation seen with compute and storage resources. The HPE Storage Fibre Channel Switch B-series SN6650B is a high-port density building block with 128 Fibre Channel ports that provides the tools to help optimize NVMe storage and automate SAN management tasks. It provides 32Gb SAN connectivity with up to 4Tbps of total system bandwidth for data center consolidation, capable of supporting the most demanding all-flash workloads. New automation capabilities enable DevOps resources to automate operations to increase productivity with simple and open automation through open APIs and the Ansible automation engine. HPE Storage Fibre Channel Switch B-series SN6650B enables new insight into NVMe storage fabrics with modern I/O traffic visibility and VM-level granularity to validate and fine-tune performance for better efficiency.

What is new supporting point:
Port On Demand (PoD) kits including a PoD upgrade license, activating 24 ports, and 24 32Gb Fibre Channel optics.
QSFP Port On Demand (PoD) kits including a PoD upgrade license, activating 8 QSFP ports, and 8 32Gb QSFP Fibre Channel optics.

Specifications

Protocols
Supported protocols	Fibre Channel
Design
Form factor	2U
Performance
Media types supported	Supports 32Gb, 16Gb, 10Gb transceivers and 32Gb & 16Gb QSFP transceivers
Power
Redundant power supply (RPS) support	Yes
Other features
Weight (imperial)	21.3 kg (47 lbs)
Upgrade type	Activate additional ports using 24 port SFP and 32 port QSFP POD Kit upgrades
Technical features	Hot code load, ports on demand with no downtime; hot-swappable redundant power supplies with integrated cooling fans
Port speed rating	32Gb
Optional software	SANnav, HPE Power Pack+ (Fabric Vision, ISL Trunking, Extended Fabric, Integrated Routing, and FICON CUP)
Dimensions (W x D x H) (imperial)	439.9 x 86.6 x 609.6 mm (17.3 x 3.41 x 24")
Supported protocols	Fibre Channel
Weight & dimensions
Width	440 mm
Depth	86.7 mm
Height	609.6 mm
Weight	21.3 kg
Weight (imperial)	21.3 kg (47 lbs)
Dimensions (W x D x H) (imperial)	439.9 x 86.6 x 609.6 mm (17.3 x 3.41 x 24")
Technical details
Form factor	2U
Upgrade type	Activate additional ports using 24 port SFP and 32 port QSFP POD Kit upgrades
Technical features	Hot code load, ports on demand with no downtime; hot-swappable redundant power supplies with integrated cooling fans
Supported protocols	Fibre Channel
Port speed rating	32Gb
Optional software	SANnav, HPE Power Pack+ (Fabric Vision, ISL Trunking, Extended Fabric, Integrated Routing, and FICON CUP)
System requirements
Media types supported	Supports 32Gb, 16Gb, 10Gb transceivers and 32Gb & 16Gb QSFP transceivers
