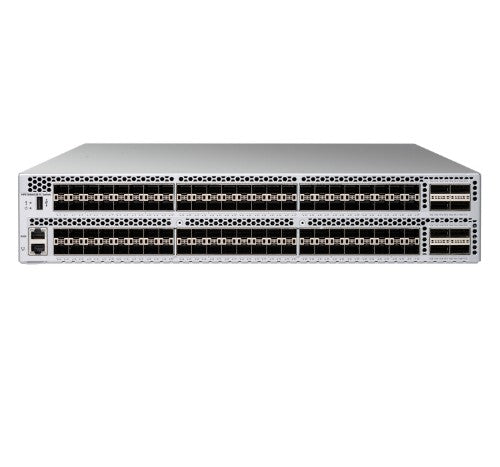

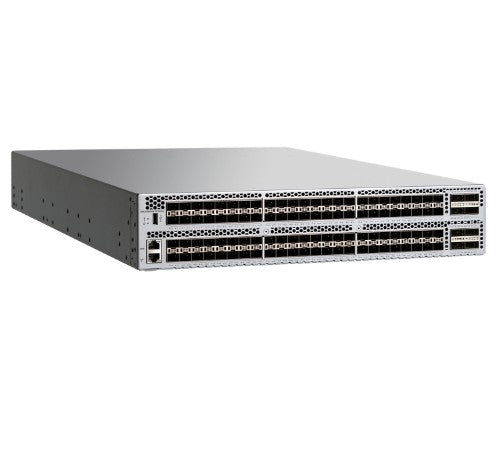

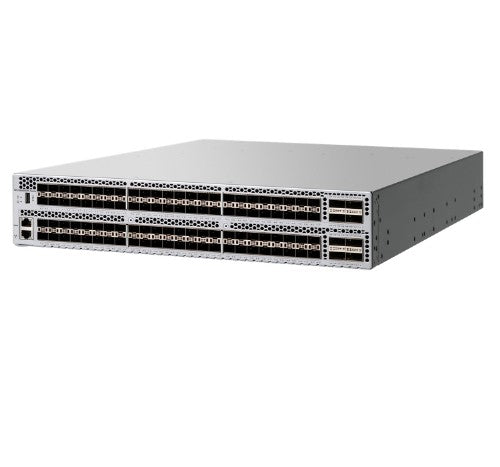

HPE SN6650B Managed 2U

SN6650B 32Gb 128/48 Fibre Channel Switch

Description

Is there a need to modernize your storage network? The all-flash data center and emerging NVMe storage requires a modern storage network that can keep up with pace of innovation seen with compute and storage resources. The HPE B-series SN6650B 32Gb FC switch is a high-port density building block with 128 Fibre Channel ports that provides the tools to optimize NVMe storage and automate SAN management tasks. It provides 32 Gb SAN connectivity with up to 4 Tbps total system bandwidth for data center consolidation and one of the most demanding all-flash workloads. New automation capabilities enable DevOps resources to automate operations to increase productivity with simple and open automation through open APIs and the Ansible automation engine. The HPE B-series SN6650B enables new insight into NVMe storage fabrics with modern I/O traffic visibility and VM-level granularity to validate and fine-tune performance for better efficiency.

Features

Flash-Ready Performance
- Supports up to 4 Tbps bandwidth with very low latency < 780 ns (including FEC) through the use of cut-through switching.
- Shatters application performance barriers with up to 200 million IOPS utilizing up to 566 million frame switching per second.
- Delivers up to 384 Gbps of combined in-flight encryption and 192 Gbps of in-flight compression to improve bandwidth and help minimize the risk of unauthorized access.
- Built in ASIC enables I/O insight into NVMe/FC storage traffic with VM-level granularity to validate and fine-tune performance for better efficiency.
- Internal fault-tolerant and enterprise-class RAS features help minimize downtime to support growing mission-critical environments.

Easy Manageability with Simple and Open Automation
- Provides tools to simplify and automate operations enabling DevOps resources to orchestrate SAN resources through open APIs and the Ansible automation engine.
- Easier integration into third-party tools utilizing a library of templates and scripts (REST APIs) to help deploy applications faster.
- Supports I/O Insight and VM Insight (included in HPE PowerPack+ software) to provide deeper visibility into FC/NVMe traffic.

Enterprise-class Scalability
- Delivers industry-leading port density with 128 Fibre Channel ports in an elegant 2U form factor.
- Provides 96 32-Gb SFP+ ports and eight 4×32-Gb QSFP ports to enable data centers to scale efficiently and deliver more connectivity with fewer switches.
- Offers cost-effective pay-as-you-grow scalability, expanding from 48 to 128 ports with flexible Ports on Demand (PoD).
- Supports 32/16/10/8/4 Gb Fibre Channel.

Specifications

Optical fiber
Fiber optic connector	SFP+
Technical details
Form factor	2U
Rack mounting	Yes
Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
SFP+ module slots quantity	128
Basic switching RJ-45 Ethernet ports type	No
Fiber ports quantity	48
Fiber optic connector	SFP+
Network
Cable types supported	Fiber
Rate limiting	Yes
Security
SSH/SSL support	Yes
Authentication type	RADIUS, TACACS+
Protocols
Management protocols	HTTPS, SNMP 1, SNMP 3, SSH, CLI, SMI-S
Design
Form factor	2U
Rack mounting	Yes
Airflow direction	Back-to-front airflow
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Redundant power supply (RPS) support	Yes
Number of power supply units	2
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85%
Operating altitude	0 - 3000 m
Weight & dimensions
Width	440 mm
Depth	609.6 mm
Height	86.7 mm
