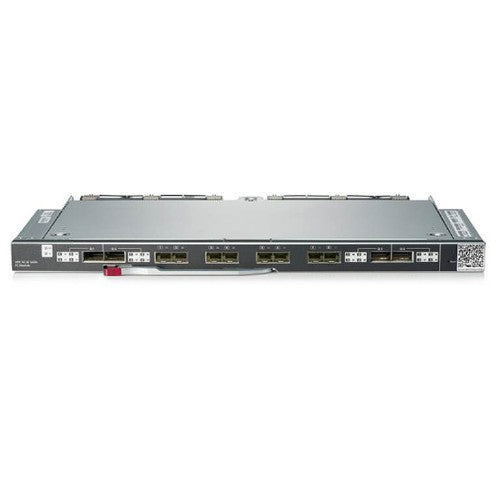

HPE Virtual Connect SE 16Gb FC network switch module

Virtual Connect SE 16Gb FC Module for HPE Synergy

Description

The HPE Virtual Connect SE 16Gb FC Module for HPE Synergy is a Storage Area Network (SAN) interconnect with a wire-once change-ready technology. The Fibre Channel (FC) module in conjunction with Synergy composer powered by HPE OneView allows workloads to be moved or managed without modifying the network. HPE OneView provides an intuitive management console for seamless connectivity between virtualized Synergy Compute Modules 16Gb FC SAN fabrics.

For the best-in-class enterprise datacenter performance environments, the HPE VC SE 16Gb FC module or the alternative, Brocade 16Gb FC SAN Switch Module for HPE Synergy, are the best choices for operating systems and applications demanding low-latency high I/O performance, i.e. SSD storage. No other server enclosure technology (iSCSI, Ethernet, or FCoE) on the market can guarantee up to 384Gb/s of bandwidth. The unique QSFP ports not only significantly simplify cabling infrastructure, reduces cabling from four to one, but also helps reduce power 2.5x attributed to optics transceivers.

If deployment costs are a concern, by adopting the Synergy frame and Gen 5 16Gb FC technology, you can reduce costs and simplify connections to SANs, consolidate your network connections and enable administrators to add, replace and recover compute modules resources on-the-fly. The integrated Synergy design frees up rack space, reduces power and cooling requirements.

The HPE Virtual Connect SE 16Gb FC Module for HPE Synergy is protected by HPE Services 3-Years Next Business Day 9x5 Hardware Support.

Specifications

Network
Full duplex	Yes
Technical details
Full duplex	Yes
Fiber optic connector	QSFP+, SFP+
Optical fiber
Fiber optic connector	QSFP+, SFP+
Data transmission
Data transfer rate	16 Gbit/s
Ports & interfaces
SFP+ module slots quantity	8
Fiber ports quantity	12
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3050 m
Non-operating altitude	0 - 9144 m
Weight & dimensions
Weight	1.44 kg
Dimensions (WxDxH)	429.72 x 280.7 x 27.48 mm
