Intellinet | SKU:
713160

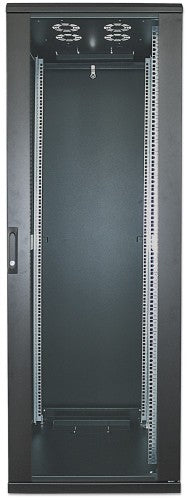

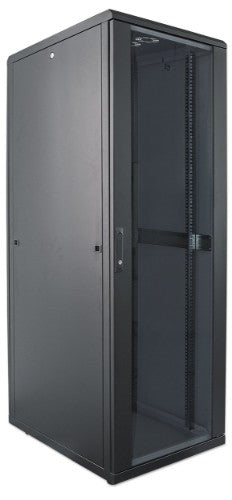

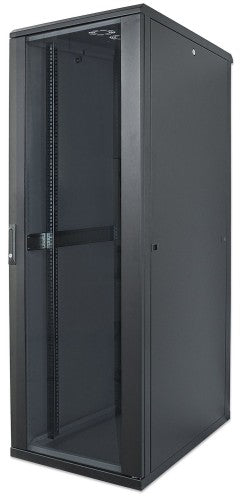

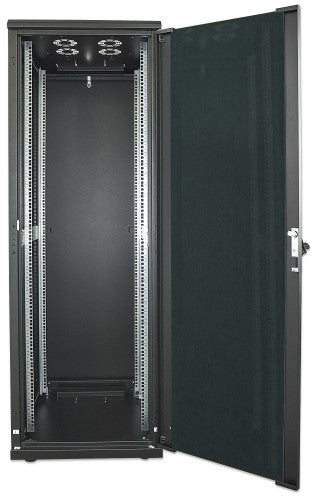

Intellinet 19" Network Cabinet - Free Standing, 36U, 800x800mm (width x depth), Black, Flatpack, Max 1500kg, Multi-Point Door Lock, One Lock Per Side Panel, Usable Depth 123 to 573mm, IP20 rated, Rack, Steel
€731.92
Unit price
/
Unavailable
Shipping calculated at checkout.
Intellinet 19" Network Cabinet - Free Standing, 36U, 800x800mm (width x depth), Black, Flatpack, Max 1500kg, Multi-Point Door Lock, One Lock Per Side Panel, Usable Depth 123 to 573mm, IP20 rated, Rack, Steel is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
19" Network Cabinet - Free Standing, 36U, 800x800mm (width x depth), Black, Flatpack, Max 1500kg, Multi-Point Door Lock, One Lock Per Side Panel, Usable Depth 123 to 573mm, IP20 rated, Rack, Steel
In terms of housing, you have numerous 19″ options with installation depths that range from 600 to 800 mm: With heights from 16 to 42 units in black (RAL9005) or grey (RAL7035), we offer you a solution for every need. The removable side panels and the lockable tempered-glass door make cabling and component exchange particularly easy.
In material and workmanship, we provide top quality. Part of that is a cold-rolled steel frame, zinc-plated 19″ mounting rails and antistatic powder coating on all panels.
Key Features
- Ideal for all 19 in. rackmount applications
- Maximum static load of 1500 kg
- Tempered-glass door
- Zinc-plated 19 in. mounting rails
- Antistatic powder coating on all panels
- Panels with up to 2 mm steel thickness
- IP20-rated housing
- Easily removable side and rear panels

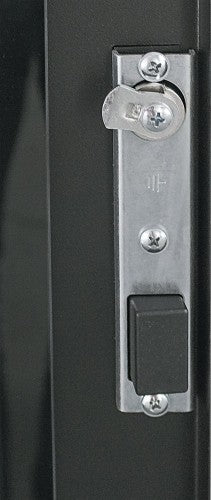

- Multi-point door lock

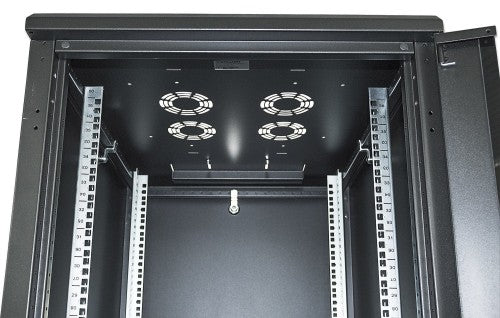

- Two apertures allow cable inlet from top or bottom
- Ventilation slots provide excellent airflow
- Ships flatpacked
- Three-Year Warranty
Description
The Intellinet Network Solutions network cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flatpack version.In terms of housing, you have numerous 19″ options with installation depths that range from 600 to 800 mm: With heights from 16 to 42 units in black (RAL9005) or grey (RAL7035), we offer you a solution for every need. The removable side panels and the lockable tempered-glass door make cabling and component exchange particularly easy.
In material and workmanship, we provide top quality. Part of that is a cold-rolled steel frame, zinc-plated 19″ mounting rails and antistatic powder coating on all panels.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Key lock | Yes |
| Frame type | Closed |
| Rack capacity | 36U |
| International Protection (IP) code | IP20 |
| Adjustable mounting rails | Yes |
| Removable side panels | Yes |
| Front door construction | Glass |
| Adjustable feet | Yes |
| Front door key lock | Yes |
| Type | Freestanding rack |
| Side panels included | Yes |
| Maximum weight capacity | 1500 kg |
| Product colour | Black |
| Certification | UL, Gost-R |
| Adjustable depth | Yes |
| Weight & dimensions | |
| Width | 800 mm |
| Depth | 800 mm |
| Height | 1766 mm |
| Weight | 119 kg |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 1500 kg |
| Technical details | |
| Type | Freestanding rack |
| Size (imperial) | 48.3 cm (19") |
| Side panels included | Yes |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | CE, RoHS, UL |
| Rack capacity | 36U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | UL, Gost-R |
| Packaging content | |
| Side panels included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85381000 |
