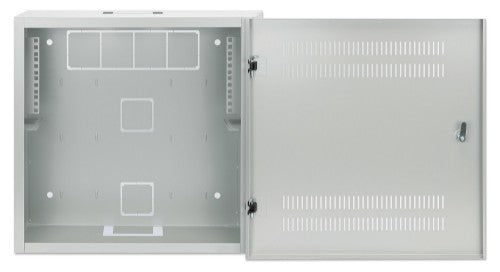

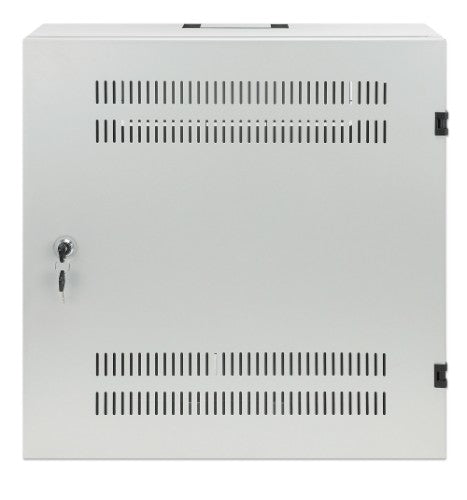

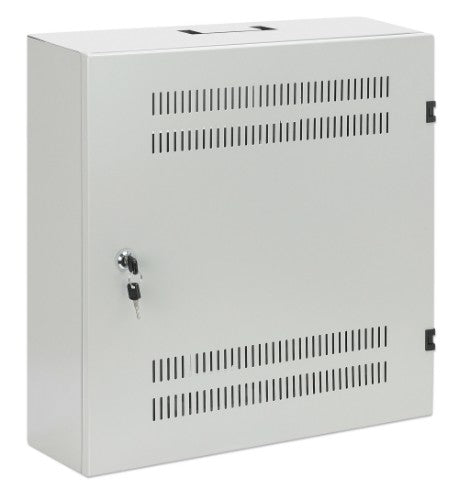

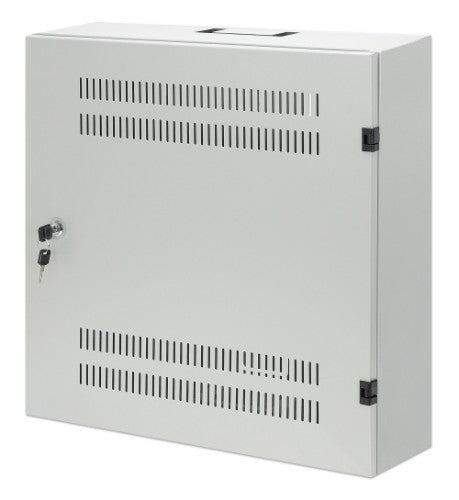

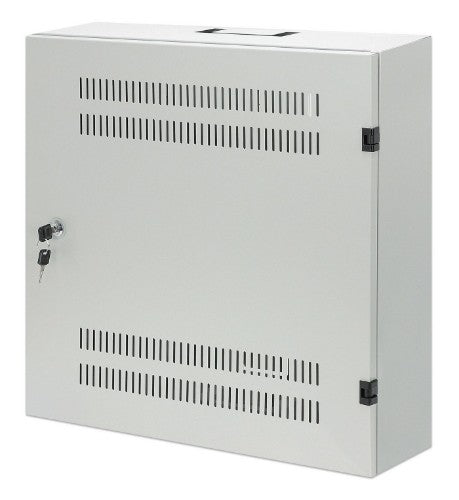

Intellinet Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails Slim, Space-saving Enclosure with Only 170 mm (6.7 in.) Depth, Ideal for AV, Multimedia and Surveillance Applications, Assembled, Gray RAL 7035

Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails Slim, Space-saving Enclosure with Only 170 mm (6.7 in.) Depth, Ideal for AV, Multimedia and Surveillance Applications, Assembled, Gray RAL 7035

Key Features

• Slim, space-saving design for organized, secure housing of network, multimedia, surveillance, audio/video and smart home equipment
• Horizontal 4U 19" rackmount option for PDUs, patch panels and other equipment with a depth up to 170 mm (6.7 in.)
• Vertical 2U 19" rackmount option for network switches and other equipment with a depth up to 280 mm (11 in.)
• Maximum load capacity of 60 kg (132 lbs.)
• Extends only 170 mm (6.7 in.) from the wall
• Sturdy, secure steel housing with antistatic powder coating
• Three-point door lock with two included keys
• Ventilation slots for maximum airflow to keep your equipment cool and prevent overheating
• IP20-rated protection

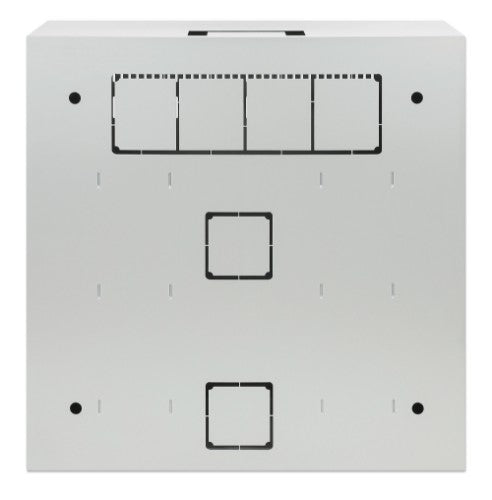

• Pre-punched cable entry openings on top, rear and bottom
• Ships fully assembled for quick installation

Description

Slim, space-saving wall-mount network enclosure rack for AV multimedia equipment and more

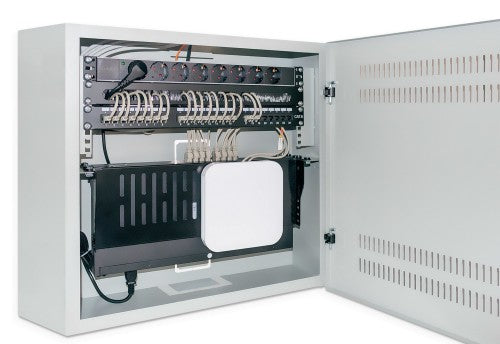

The Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails from Intellinet Network Solutions is a slim rack enclosure for residential and SOHO environments. It organizes and secures network equipment from multimedia, surveillance, audio/video and home automation while saving valuable space with its hybrid of two mounting options.

Thanks to its compact depth, it only extends 170 mm (6.7 in.) from the wall, but its vertical mounting option means you can install even bulky equipment like network switches with a depth up to 280 mm (11 in.). The sturdy IP20-rated steel housing with antistatic powder coating can be locked with a secure three-point door lock to prevent damage, tampering or theft. It carries a load capacity up to 60 kg (132 lbs.), and ventilation slots ensure maximum airflow to keep your equipment cool. Your structured cabling can enter through pre-punched holes on the top, rear or bottom. Its fully assembled shipping condition saves you the trouble of putting it together.

Specifications

Weight & dimensions
Package depth	555 mm
Package width	545 mm
Package height	205 mm
Width	550 mm
Depth	170 mm
Height	540 mm
Weight	8.5 kg
Maximum weight capacity	60 kg
Packaging content
Nuts included	Yes
Number of nuts	12
Screws included	Yes
Number of screws	12
Number of washers included	12
Features
Key lock	Yes
Frame type	Closed
Product design	4-post
Rack capacity	2U/4U
International Protection (IP) code	IP20
Front door construction	Steel
Front door key lock	Yes
Type	Wall mounted rack
Maximum weight capacity	60 kg
Material	Steel
Product colour	Grey
Ventilation holes	Yes
Packaging data
Nuts included	Yes
Number of nuts	12
Package depth	555 mm
Package width	545 mm
Package height	205 mm
Screws included	Yes
Number of screws	12
Number of washers included	12
Technical details
Package width	545 mm
Package height	205 mm
Type	Wall mounted rack
Sustainability compliance	Yes
Compliance certificates	RoHS
Rack capacity	2U/4U
International Protection (IP) code	IP20
Colour
Product colour	Grey
Material
Material	Steel
Logistics data
Master (outer) case width	560 mm
Master (outer) case length	560 mm
Master (outer) case height	190 mm
Master (outer) case gross weight	9.5 kg
Products per master (outer) case	1 pc(s)
