Intellinet  |  SKU: 720038

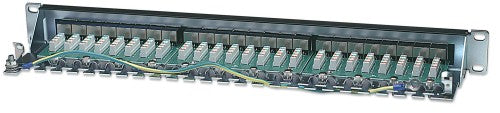

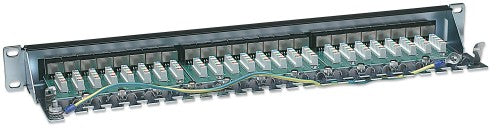

Intellinet Patch Panel, Cat6, FTP, 24-Port, 1U, Shielded, 90° Top-Entry Punch-Down Blocks, Black

€66.79
Shipping calculated at checkout.

Delivery and Shipping

Products shipped within 2 working days from date of order.

Costs

0-24.99kg €14.50

25kg – 50kg €35.00

50kg and Up €60.00

No Customs Charges

Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.

Patch Panel, Cat6, FTP, 24-Port, 1U, Shielded, 90° Top-Entry Punch-Down Blocks, Black

Key Features

  • Solid and reliable terminations for copper cabling featuring a minimum of 3 mm 30 micro-inch gold-plated jack contacts
  • Top-entry punch-down blocks simplify installation
  • Compatible with Krone punch-down tools
  • Supports 24 to 26 AWG stranded and solid wire
  • For use with fully shielded twisted pair (FTP) Cat6 network cable
  • Ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications
  • Meets 19" rackmount standards
  • Lifetime Warranty

Description

The backbone of your network is central to your organisation's success. Trust Intellinet Network Solutions to provide Patch Panels that maintain the integrity of your data. The Patch Panel enables you to quickly change the port assignment of any piece of equipment that's attached to your network. Our range of Patch Panels feature varying port densities across a complete range of specifications–from Cat5e to Cat6a in both Unshielded and Shielded varieties. All Patch Panels comply with current industry standards and are 19”-rack compliant.

Specifications

Network
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Cable shielding F/UTP (FTP)
Ports quantity 24
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Connector(s) RJ-45
Design
Mounting Rack mounting
Rack capacity 1U
Product colour Black
Certification UL, CE
Certificates
Certification UL, CE
Compliance certificates CE, RoHS, UL
Operational conditions
Operating temperature (T-T) -40 - 70 °C
Weight & dimensions
Width 44 mm
Weight 1.72 kg
Height 110 mm
Depth 482 mm
Features
Mounting Rack mounting
Rack capacity 1U
Product colour Black
Certification UL, CE
Technical details
Mounting Rack mounting
Operating temperature (T-T) -40 - 70 °C
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Harmonized System (HS) code 85371098
Compliance certificates CE, RoHS, UL
Colour
Product colour Black
Logistics data
Harmonized System (HS) code 85371098
