Kingston Technology | SKU:
KSM32ED8/32HD
19% off

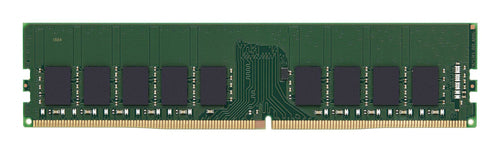

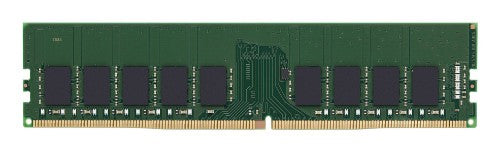

Kingston Technology KSM32ED8/32HD memory module 32 GB 1 x 32 GB DDR4 3200 MT/s 288-pin DIMM ECC
€545.22
€675.19
Unit price
/
Unavailable
Shipping calculated at checkout.
Kingston Technology KSM32ED8/32HD memory module 32 GB 1 x 32 GB DDR4 3200 MT/s 288-pin DIMM ECC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
32GB DDR4 3200MT/s ECC Unbuffered DIMM CL22 2Rx8 1.2V 288-pin 16Gbit Hynix D
Key Features
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- Temperature sensor with integrated SPD
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
Description
Kingston's KSM32ED8/32HD is a 2G x 72-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.Specifications
| Power | |
|---|---|
| Memory voltage | 1.2 V |
| Design | |
| JEDEC standard | Yes |
| Memory | |
| Buffered memory type | Unregistered (unbuffered) |
| Memory layout (modules x size) | 1 x 32 GB |
| Internal memory | 32 GB |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| CAS latency | 22 |
| Memory voltage | 1.2 V |
| Module configuration | 2048M x 72 |
| Row cycle time | 45.75 ns |
| Row active time | 32 ns |
| SPD profile | Yes |
| Memory channels | Dual-channel |
| Memory ranking | 2 |
| ECC | Yes |
| Internal memory type | DDR4 |
| Programming power voltage (VPP) | 2.5 V |
| Features | |
| Buffered memory type | Unregistered (unbuffered) |
| Memory layout (modules x size) | 1 x 32 GB |
| Internal memory | 32 GB |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| CAS latency | 22 |
| Memory voltage | 1.2 V |
| Module configuration | 2048M x 72 |
| Row cycle time | 45.75 ns |
| Row active time | 32 ns |
| SPD profile | Yes |
| Memory channels | Dual-channel |
| Memory ranking | 2 |
| ECC | Yes |
| Internal memory type | DDR4 |
| Programming power voltage (VPP) | 2.5 V |
| JEDEC standard | Yes |
| Memory data transfer rate | 3200 MT/s |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
| Technical details | |
| Compliance certificates | RoHS |
| Sustainability | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 133.3 mm |
| Height | 31.2 mm |
