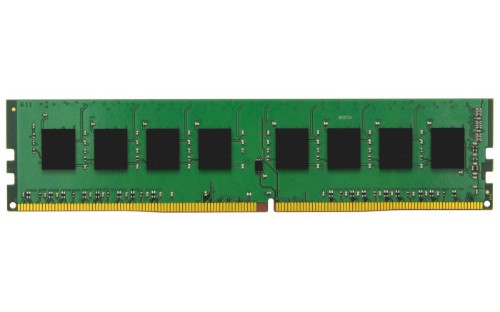

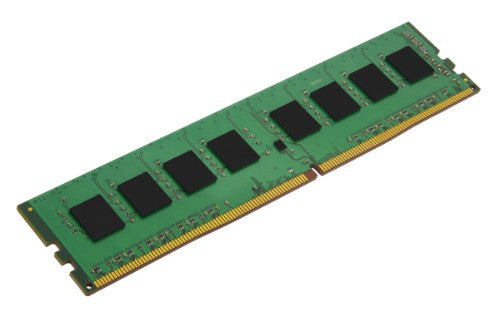

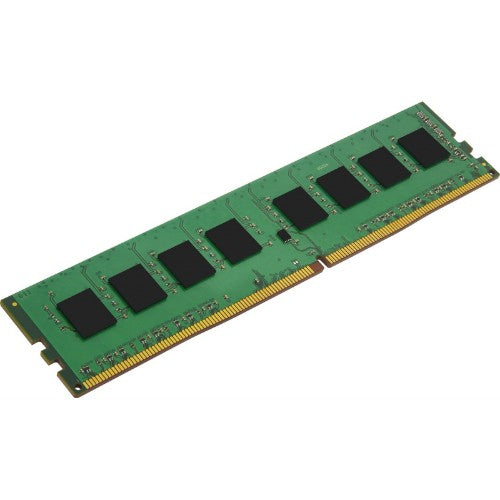

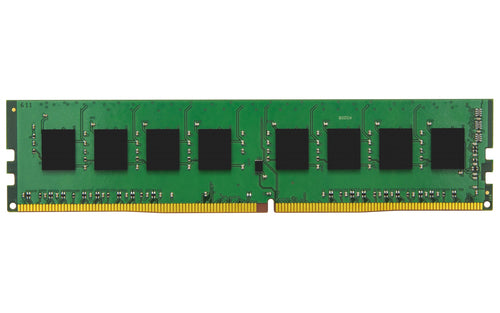

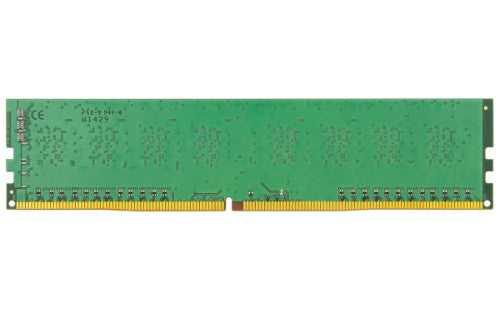

Kingston Technology ValueRAM memory module 32 GB 1 x 32 GB DDR4 3200 MT/s

32GB, DDR4, 3200 MT/s, CL22, 288-Pin, DIMM

Key Features

• Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 16 internal banks; 4 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus

Description

Kingston Technology ValueRAM is the best source for industry standard desktop and notebook memory, supplying the most reliable product, supported by an outstanding warranty and free tech support. Kingston Technology’s ValueRAM desktop and notebook memory is recognised and validated on all of the desktop and notebook motherboard manufacturer’s web sites including Asus, MSI, Gigabyte and more. Not all desktop and notebook memory is created equal – Kingston Technology invests $millions to ensure the quality of its modules to reduce your total cost of ownership. All ValueRAM desktop and notebook memory is design proven in functional testing. Kingston Technology’s strong industry alliances make ValueRAM the most reliable desktop and notebook memory you can buy.

Specifications

Power
Memory voltage	1.2 V
Design
JEDEC standard	Yes
Technical details
Country of origin	Taiwan
Doesn't contain	Halogen
Compliance certificates	RoHS
Memory
Memory layout (modules x size)	1 x 32 GB
Internal memory	32 GB
Component for	PC/Server
Memory form factor	288-pin DIMM
CAS latency	22
Memory voltage	1.2 V
Lead plating	Gold
Row cycle time	45.75 ns
Refresh row cycle time	350 ns
Row active time	32 ns
Memory ranking	2
ECC	No
Internal memory type	DDR4
Programming power voltage (VPP)	2.5 V
Features
Memory layout (modules x size)	1 x 32 GB
Internal memory	32 GB
Component for	PC/Server
Memory form factor	288-pin DIMM
CAS latency	22
Memory voltage	1.2 V
Lead plating	Gold
Row cycle time	45.75 ns
Refresh row cycle time	350 ns
Row active time	32 ns
Country of origin	Taiwan
Memory ranking	2
ECC	No
Internal memory type	DDR4
Programming power voltage (VPP)	2.5 V
JEDEC standard	Yes
Harmonized System (HS) code	84733020
Memory data transfer rate	3200 MT/s
Operational conditions
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-55 - 100 °C
Sustainability
Doesn't contain	Halogen
Weight & dimensions
Width	133.3 mm
Height	31.2 mm
Logistics data
Harmonized System (HS) code	84733020
Other features
Country of origin	Taiwan
Harmonized System (HS) code	84733020
