Lenovo 4XC7A08228 network card Internal Ethernet 25000 Mbit/s

ThinkSystem QLogic QL41262 10/25GbE SFP28 2-Port PCIe Ethernet Adapter

Description

The ThinkSystem QLogic QL41262 10/25GbE SFP28 2-Port PCIe Ethernet Adapter is based on eighth-generation technology from Cavium and features Universal Remote Direct Memory Access (RDMA) to offer concurrent support for RoCE, RoCE v2, and iWARP. It is suitable for existing 10Gb customers who want to maintain 10Gb network support plus provide the investment protection of supporting 25GbE network speeds.

This product guide provides essential presales information to understand the adapter and its key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about QLogic 25 GbE network adapter and consider its use in IT solutions.

The ThinkSystem QLogic QL41262 10/25GbE SFP28 2-Port PCIe Ethernet Adapter is based on eighth-generation technology from Cavium and features Universal Remote Direct Memory Access (RDMA) to offer concurrent support for RoCE, RoCE v2, and iWARP. It is suitable for existing 10Gb customers who want to maintain 10Gb network support plus provide the investment protection of supporting 25GbE network speeds.

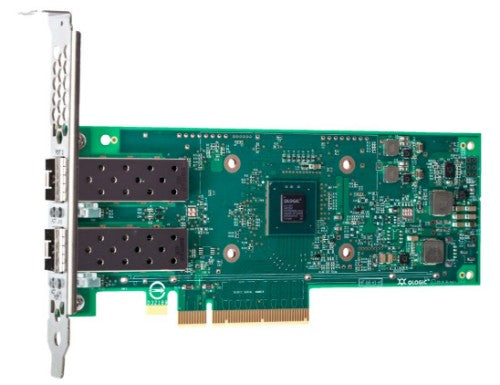

The following figure shows the ThinkSystem QLogic QL41262 10/25GbE SFP28 2-Port PCIe Ethernet Adapter.

Specifications

Ports & interfaces
Internal	Yes
Fiber ports quantity	2
Fiber optic connector	SFP28
Interface	Ethernet
Host interface	PCI Express
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	25000 Mbit/s
Technical details
Product colour	Green
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Network
Ethernet interface type	10 Gigabit Ethernet, 25 Gigabit Ethernet
Ethernet LAN	Yes
Networking standards	IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1as
Ethernet LAN data rates	10,100,1000,10000,25000 Mbit/s
Maximum data transfer rate	25000 Mbit/s
Design
Product colour	Green
Certification	UL 60950-1 CSA C22.2 TUV EN60950-1 TUV IEC 60950-1 CB Certified FCC Rules,CFR Title 47, Part 15, Subpart Class A Industry Canada, ICES-003: Class A EN55032 EN55024 EN61000-3-2 EN61000-3-3 VCCI: Class A AS/NZS: Class A KC-RRA Class A BSMI CNS 13438
Internal	Yes
LED indicators	Yes
Component for	Server
Indication
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Depth	167 mm
Height	69 mm
Certificates
Certification	UL 60950-1 CSA C22.2 TUV EN60950-1 TUV IEC 60950-1 CB Certified FCC Rules,CFR Title 47, Part 15, Subpart Class A Industry Canada, ICES-003: Class A EN55032 EN55024 EN61000-3-2 EN61000-3-3 VCCI: Class A AS/NZS: Class A KC-RRA Class A BSMI CNS 13438
Logistics data
Harmonized System (HS) code	85176990
Other features
Harmonized System (HS) code	85176990
