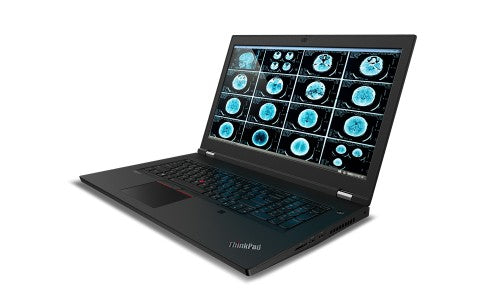

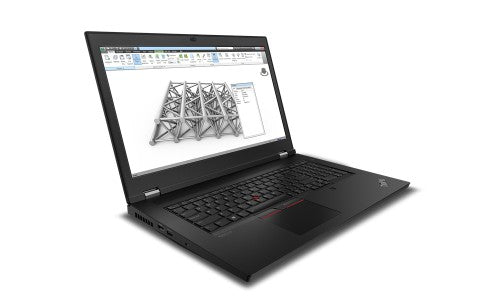

Lenovo ThinkPad P17 Gen 1 Intel® Xeon® W-10855M Mobile workstation 43.9 cm (17.3") 4K Ultra HD 32 GB DDR4-SDRAM 2 TB SSD NVIDIA Quadro RTX 5000 Max-Q Wi-Fi 6 (802.11ax) Windows 10 Pro for Workstations UK English Black

Intel Xeon W-10855M (2.8GHz), 32GB DDR4-SDRAM, 2000GB SSD, 17.3" 4K Ultra HD 3840 x 2160 WVA, NVIDIA Quadro RTX 5000 Max-Q, Intel UHD Graphics, Bluetooth, 4G, WLAN, LAN, Windows 10 Pro for Workstations 64-bit

Key Features

• Windows 10 Pro for Workstations 64-bit
• Intel Xeon W-10855M (2.8GHz)
• 17.3" 4K Ultra HD 3840 x 2160 WVA
• 32GB DDR4-SDRAM & 2000GB SSD

Reasons To Buy

Uncompromised performance

When you need powerful performance, the ThinkPad P17 mobile workstation doesn’t joke around. Choose between Intel® Xeon® or 10th Gen Intel Core™ processors—both with up to 8 cores and vPro® technology. Combine with up to NVIDIA® Quadro RTX™ 5000 professional graphics and you’ll enjoy the highest graphics power available on a mobile workstation. And work confidently with ISV certification in industry-leading software like 3dsMax®, ArcGIS®, AutoCAD®, CATIA®, Creo®, and lots more (see Tech Specs for all).

Maximized power
The ThinkPad P17 mobile workstation includes an Ultra-Performance Mode setting that enables the system to reach maximum performance. Airflow and thermal saturation are optimized to keep your device running fast and efficiently. Tap into the full potential of the system with this performance booster for those times when you need even more power. Plus, it’s supported by both Windows and Linux OS.

True-to-life colours

Enjoy rich, vibrant details and colour accuracy on the ThinkPad P17 mobile workstation when you choose the UHD panel with Dolby Vision™ HDR with factory colour calibration. With a 17.3" screen, it’s like having a built-in monitor wherever you go. Or choose the FHD screen, which offers wide-angle viewing.

Audio never sounded so good
Enjoy the best audio available in a laptop: the ThinkPad P17 features the custom-designed Dolby Atmos® Speaker System. This combination hardware and software deliver breakthrough sound across three speakers. Listen to enhanced volume without distortion while being immersed within the experience. It sounds great through the speakers and on headphones.

Leave the security to us

ThinkShield, our built-in suite of security solutions, keeps your ThinkPad P17 and your data safe. The match-on-chip fingerprint reader encrypts your biometric data on the system. The discrete Trusted Platform Module (dTPM) uses encryption to significantly decrease the possibility of hacking. With the optional Intel vPro® technology, hardware-enhanced security features provide a more secure platform foundation, coupled with remote recovery capabilities. Yet should your system ever become corrupted, the self-healing BIOS will restore it to an earlier, safe version.

Tested to the extremes
ThinkPad laptops are tested against 12 military-grade requirements and more than 200 quality checks to ensure they run in extreme conditions. From the Arctic wilderness to desert dust storms, from zero-gravity to spills and drops, you can trust these laptops to handle whatever life throws your way.

Boost your productivity

Enjoy time-saving features and bump up your productivity. The ThinkPad P17 mobile workstation offers Modern Standby, which enables the system to wake in one second and connect to the internet one second later. Wake on Voice gets you up and running from across the room, as long as the cover is open. What’s more, with just the touch of a button, you can easily answer, make, and disconnect from conference calls by using the F9-F11 function keys.

Jump online whenever
The ThinkPad P17 mobile workstation keeps you connected no matter where you go. Speedy WiFi 6 lets you jump on crowded public platforms fast. And the optional CAT16 WWAN card provides connection wherever there’s cellular service*, so you can enjoy faster, more secure, access to your server and uninterrupted video streaming. *WWAN must be configured at the time of purchase and requires network service.

Description

Ultimate power at your fingertips
Lenovo’s most powerful laptop, designed as an on-the-go desktop.  Maximize your workspace with the ultimate performance experience featuring up to an Intel® Xeon® processor, NVIDIA® Quadro RTX™ 5000 professional graphics, and up to 4 TB of ultrafast M.2 storage.  Our new Ultra Performance Mode and the outstanding 17.3” display lets designers, creators, and engineers amplify their productivity.  ThinkPad P17 Mobile Workstation: Go ahead, bring your desktop with you.

Specifications

Design
Product type	Mobile workstation
Form factor	Clamshell
Product colour	Black
Display
HD type	4K Ultra HD
Panel type	WVA
Display brightness	500 cd/m²
Contrast ratio (typical)	1500:1
Touchscreen	No
Display resolution	3840 x 2160 pixels
Display diagonal	43.9 cm (17.3")
High Dynamic Range (HDR) technology	High Dynamic Range (HDR) 400
Native aspect ratio	16:9
Processor
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Comet Lake
Tjunction	100 °C
Thermal Design Power (TDP)	45 W
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Maximum number of PCI Express lanes	16
Configurable TDP-down	35 W
Processor cache type	Smart Cache
Processor cache	12 MB
Processor frequency	2.8 GHz
Processor model	W-10855M
Processor boost frequency	5.1 GHz
Processor cores	6
Processor threads	12
System bus rate	8 GT/s
Processor socket	BGA 1440
Motherboard chipset	Intel WM490
Processor manufacturer	Intel
Processor family	Intel® Xeon®
Memory
ECC	Yes
Memory form factor	SO-DIMM
Internal memory	32 GB
Memory layout (slots x size)	2 x 16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	3200 MHz
Memory slots	4x SO-DIMM
Maximum internal memory	128 GB
Storage
SSD form factor	M.2
Storage media	SSD
Optical drive type	No
Number of SSDs installed	1
SSD capacity	2 TB
SSD interface	NVMe
Card reader integrated	Yes
Compatible memory cards	SD
Total storage capacity	2 TB
Total SSDs capacity	2 TB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Discrete graphics card memory	16 GB
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card base frequency	350 MHz
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x9BF6
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics
Discrete graphics card model	NVIDIA Quadro RTX 5000 Max-Q
Discrete graphics memory type	GDDR6
Discrete GPU manufacturer	NVIDIA
On-board GPU manufacturer	Intel
Audio
Audio chip	Realtek ALC3286
Number of microphones	2
Audio system	Dolby Atmos
Number of built-in speakers	2
Built-in microphone	Yes
Camera
Front camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter
Front camera HD type	HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	Yes
Mobile network generation	4G
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
4G standard	LTE-A
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1
WWAN	Installed
MIMO	Yes
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB 2.0 ports quantity	0
HDMI ports quantity	1
HDMI version	2.0
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
USB Power Delivery (USB PD)	Yes
DC-in jack	Yes
Performance
Motherboard chipset	Intel WM490
Keyboard
Pointing device	ThinkPad UltraNav
Keyboard layout	QWERTY
Numeric keypad	Yes
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Keyboard language	UK English
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro for Workstations
Technical details
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Form factor	Clamshell
Product colour	Black
Discrete graphics card memory	16 GB
Sustainability certificates	EPEAT Gold, ENERGY STAR
Compliance certificates	RoHS
Processor special features
Enhanced Intel SpeedStep Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel® Secure Key	Yes
Intel Flex Memory Access	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Thermal Monitoring Technologies	Yes
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Processor package size	42 x 28 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Idle States	Yes
Execute Disable Bit	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	201908
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Battery
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	14.6 h
Battery capacity	94 Wh
Fast charging	Yes
Power
AC adapter power	230 W
USB Power Delivery (USB PD)	Yes
DC-in jack	Yes
Security
Password protection	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Power on, Supervisor
Fingerprint reader	Yes
Cable lock slot	Yes
Smart card reader	Yes
Certificates
Compliance certificates	RoHS
Sustainability
Sustainability certificates	EPEAT Gold, ENERGY STAR
Weight & dimensions
Width	415.4 mm
Depth	280.8 mm
Height (front)	2.51 cm
Height (rear)	3.33 cm
Weight	3.5 kg
Other features
On-board graphics card dynamic frequency (max)	1200 MHz
WLAN controller model	Intel Wi-Fi 6 AX201
On-board graphics card	Yes
Audio system	Dolby Atmos
