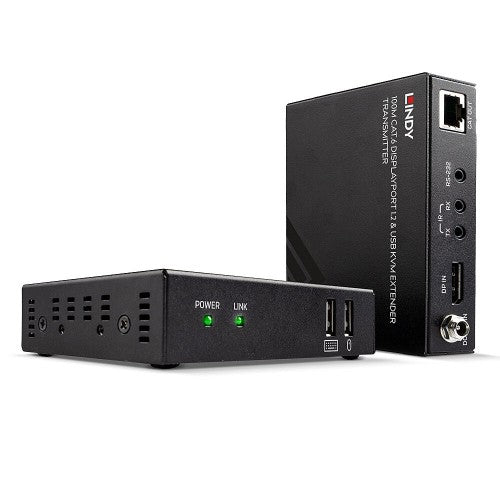

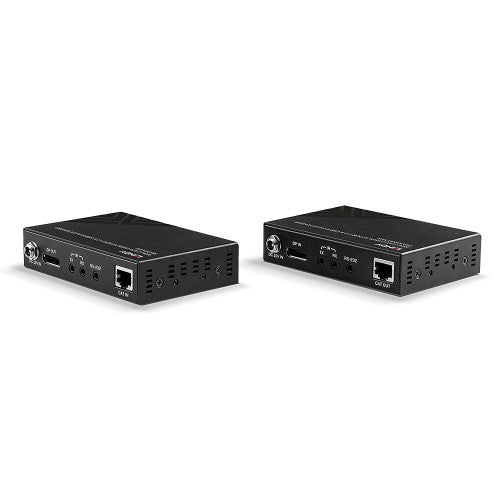

Lindy 100m Cat.6 DisplayPort 1.2 & USB KVM Extender

100m Cat.6 DisplayPort 1.2, USB, IR & RS232 KVM Extender

Description

Extends 4K DisplayPort 1.2 & KM signals over 100m distances with standard network cable Supports resolutions up to 3840x2160@60Hz 4:4:4 8bit Bi-directional PoC (Power over Cable) functionality for power from a single power supply Bi-directional IR & RS-232 control 2 year warranty The Lindy Cat.6 DisplayPort 1.2 KVM Extender is an effective, reliable solution for extending high quality 4K DisplayPort signals over distances up to 100m (328.08ft) with standard Cat.5e/6 network cable. Support for DisplayPort 1.2 allows for the transmission of highly detailed 4K UHD 3840x2160@60Hz resolutions, perfect for eye catching digital signage or detailed content in medical setups. This extender also supports lossless audio formats including Dolby TrueHD and DTS-HD to add powerful multi-channel sound to video content, providing an enhanced experience and sense of immersion for the viewer. USB KM connectivity via 2 USB HID ports allow for a keyboard and mouse at the receiver to control a DP equipped PC from a remote PC setup, which can be stored in a secure or controlled temperature environment, while seamlessly providing consistent video content from the source. With the ability to extend signals up to 100m using the two included units, the transmitter can be easily connected to a variety of DisplayPort source devices such as PCs and laptops in a more convenient location, while the receiver can be placed in a suitable viewing area with a LFD (large format display), monitor or projector, ensuring there is no distraction from the display from bulky source devices. This versatility provides a suitable system for use in various scenarios such as educational presentations, CAD facilities or remote server administration. PoC (Power over Cable) functionality means power and data signals can be transmitted over Cat.6 cable on a point to point connection between the transmitter and receiver for additional functionality using only a single power supply. Ideal when power outlets are limited at the receiver end of the installation. Featuring bi-directional IR ports at both sides of the setup, the source equipment can be seamlessly controlled from the display side, and the display can also be controlled from the DisplayPort source device. RS-232 connections also allow for integration into pre-installed control systems. In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue. The extenders built-in EDID function ensures maximum compatibility with the display or projector at the receiver, further enhancing this system focus on providing high quality 4K DP content over distances easily and with minimum hassle for the user.

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Cable types supported	Cat5e, Cat6
Product colour	Black
Material	Metal
Certification	CE, FCC, RoHS, REACH
Transmitter
Transmitter video port type	DisplayPort
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1
Receiver
Receiver local video port type	DisplayPort
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Package width	255 mm
Package depth	96 mm
Package height	195 mm
Package weight	1.28 kg
Technical details
Weight	555 g
Dimensions (WxDxH)	26 x 110 x 75 mm
Harmonized System (HS) code	84733080
Packaging data
Cables included	IR
Manual	Yes
Package width	255 mm
Package depth	96 mm
Package height	195 mm
Package weight	1.28 kg
Packaging content
Cables included	IR
Manual	Yes
