Description

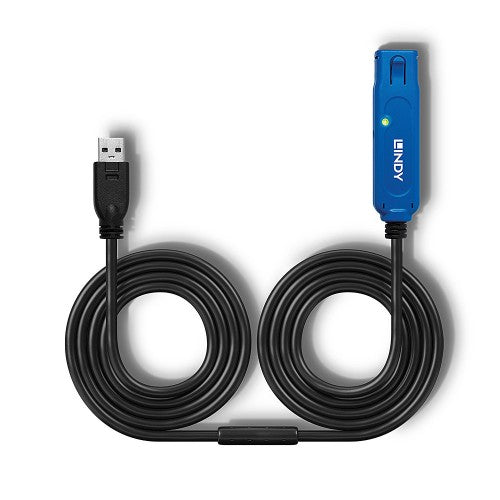

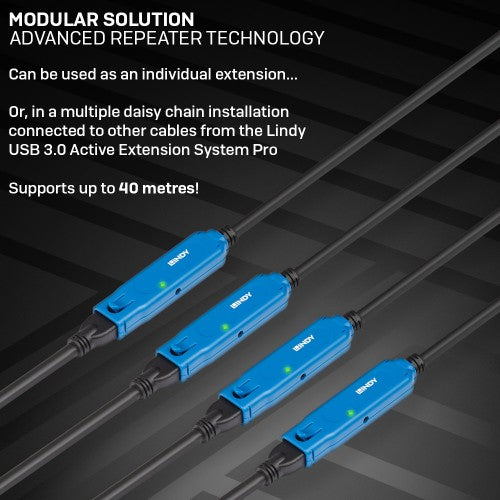

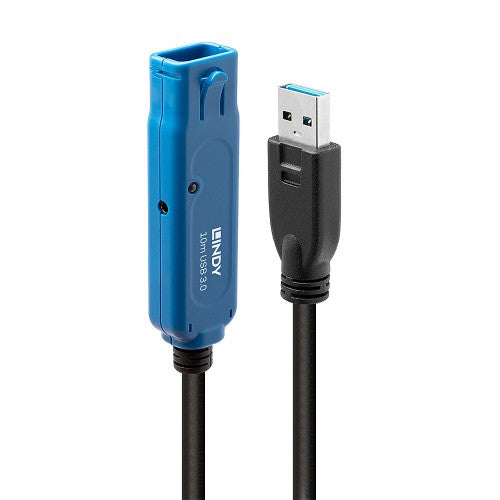

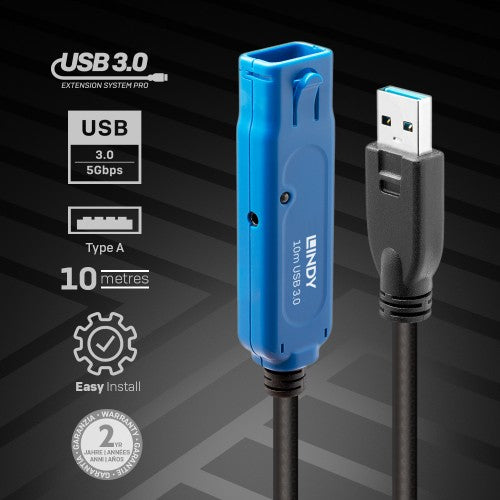

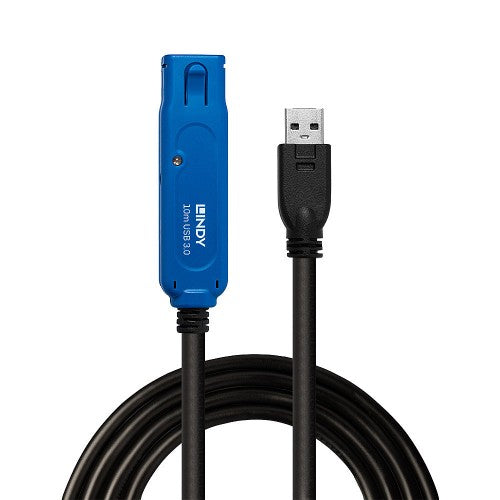

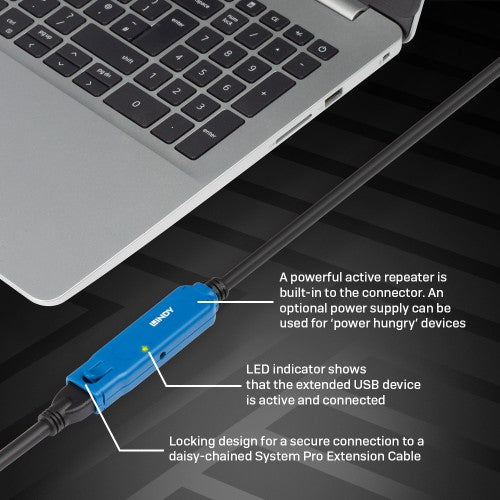

High performance, active cable that provides an extended 10m connection between a computer and USB 3.0 device Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of about 40m (depending on the cable configurations used) Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps Easy to use – connects to the device’s existing USB cable (5m maximum) 2 year warranty The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably. This 10m extension cable can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to about 40m (depending on the cable configurations used). Please note that only the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229) can be connected directly to your computer. If you are creating an extension using multiple units from the Extension Pro System then the first unit must always be the USB 3.0 Active Extension Pro 8m (Nr. 43158) or 15m (Nr. 43229). Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m. The final part of the extension can be any of the three parts of the Extension Pro System. If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr. 43159) with it’s power supply as the final part of the extension. This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments. Information about USB 3.0, 3.1 & 3.2 USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface. USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.,
Features | |
---|---|
Connector 1 form factor | Straight |
Connector 2 form factor | Straight |
AWG wire size | 24/24/20 |
USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
Connector 1 | USB A |
Connector 2 | USB A |
Cable length | 10 m |
Connector contacts plating | Gold |
Maximum data transfer rate | 5000 Mbit/s |
Product colour | Black |
Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
Cable type | Round cable |
Connector 1 gender | Male |
Connector 2 gender | Female |
Conductor material | Tinned copper |
Cable jacket material | Polyvinyl chloride (PVC) |
Connector material | Nickel |
Contact material | Brass |
Connector shielding | Yes |
Connector shield material | Aluminium |
Connector housing material | Plastic |
Transmission medium | Twisted pair |
Nominal attenuation | 0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB |
Cable diameter | 7 mm |
Weight | 750 g |
Quantity per pack | 1 pc(s) |
Power | |
Power note | 2.5/0.7mm DC |
Weight & dimensions | |
Cable diameter | 7 mm |
Weight | 750 g |
Bend radius (min) | 3.6 cm |
Connector 1 dimensions (WxDxH) | 15 x 49 x 8 mm |
Connector 2 dimensions (WxDxH) | 20 x 80 x 13 mm |
Cable length | 10 m |
Package width | 240 mm |
Package depth | 70 mm |
Package height | 200 mm |
Package weight | 900 g |
Package type | Box |
Packaging data | |
Package width | 240 mm |
Package depth | 70 mm |
Package height | 200 mm |
Package weight | 900 g |
Package type | Box |
Quantity per pack | 1 pc(s) |
Packaging content | |
Manual | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -20 - 60 °C |
Ports & interfaces | |
USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
Connector 1 | USB A |
Connector 2 | USB A |
Connector contacts plating | Gold |
Data transmission | |
Maximum data transfer rate | 5000 Mbit/s |
Technical details | |
Product colour | Black |
Manual | Yes |
Harmonized System (HS) code | 84733080 |
Certificates | |
Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
Other features | |
Package type | Box |
Product colour | Black |
Cable type | Round cable |
Operating temperature (T-T) | 0 - 50 °C |
Storage temperature (T-T) | -20 - 60 °C |
