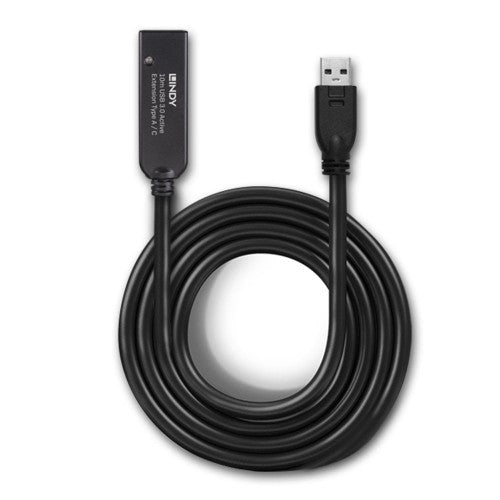

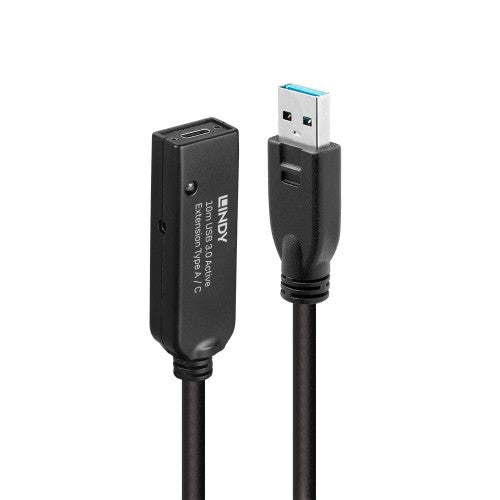

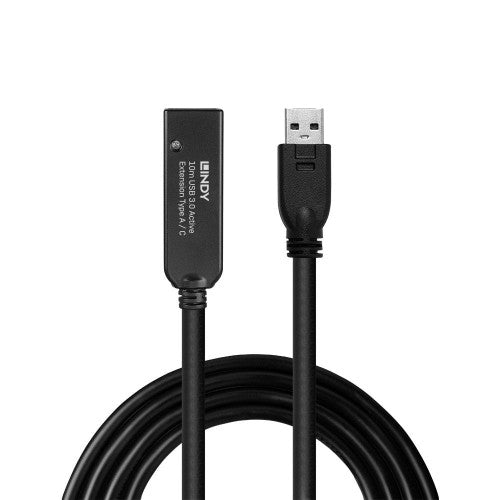

Lindy 10m USB 3.0 Active Extension Type A to C

10m USB 3.0 Active Extension Type A to C

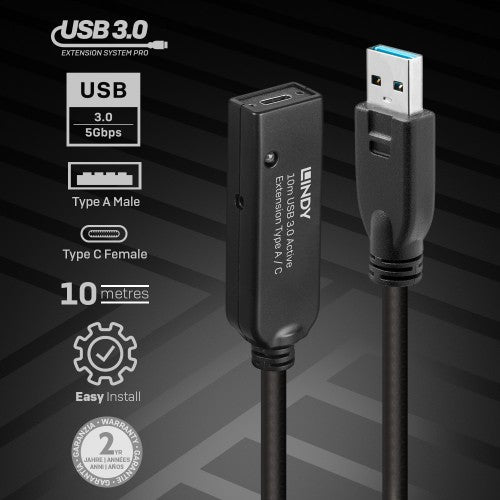

Key Features

• High performance, active cable that provides an extended 10m connection between a computer with USB Type A port and a Type C device
• Supports USB 3.2 / 3.1 Gen 1 / USB 3. 0 bandwidth for speeds of 5Gbps
• Can be used standalone orandnbsp; - for even greater distances - as part of the Lindy USB 3.0 Active Extension System Pro (No. 43157, 43158, 43229 or 43361) up to a maximum distance of 38m
• Industry-proven active technology and screw-lock connector
• 2 year warranty

Description

This Lindy 10m USB Active Extension Cable is a high performance active cable that allows access to USB Type C peripherals like webcams or storage devices over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.

This 10m extension cable can be used standalone or - for distances up to 38m - as part of the Lindy USB 3.0 Active Extension System Pro (No. 43157, 43158, 43229 or 43361). Please note that only No. 43157, 43158, 43229 or 43361 (depending on the maximum required distance) can be connected directly to your computer as first unit. The final part of the extension shall always be the 10m USB Type A to C Active Extension No. 43376.

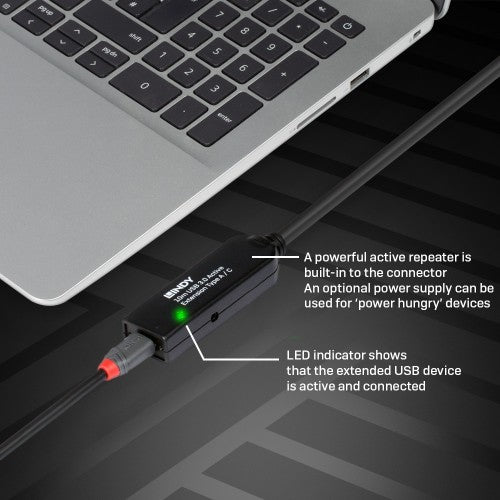

A USB to DC adapter cable for power supply is included. Usually a 5V 1A power supply of a smartphone is enough to drive the connected device.For USB devices with high power demands, such as a USB Hub or storage device, it may be necessary to connect a bigger power supply with an output voltage and amperage up to 5V 3A.

This cable features industry-proven active technology and screw-lock connectors to ensure full signal integrity in the most demanding environments.

Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.

USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	24/24/20
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB C
Cable length	10 m
Connector contacts plating	Nickel
Maximum data transfer rate	5000 Mbit/s
Product colour	Black
Certification	California Proposition 65
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Female
Conductor material	Tinned copper
Cable jacket material	Polyvinyl chloride (PVC)
Connector shielding	Yes
Connector housing material	Plastic
Maximum data transfer rate	5 Gbit/s
Cable diameter	7 mm
Weight	800 g
Quantity per pack	1 pc(s)
Weight & dimensions
Cable diameter	7 mm
Cable length	10 m
Weight	800 g
Connector 1 dimensions (WxDxH)	15 x 49 x 8 mm
Connector 2 dimensions (WxDxH)	9.86 x 9.15 x 2.96 mm
Package width	230 mm
Package depth	198 mm
Package height	63 mm
Package weight	1 kg
Package type	Box
Packaging data
Package width	230 mm
Package depth	198 mm
Package height	63 mm
Package weight	1 kg
Package type	Box
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Ports & interfaces
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB C
Connector contacts plating	Nickel
Data transmission
Maximum data transfer rate	5000 Mbit/s
Technical details
Product colour	Black
Warranty period	2 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
Certificates
Certification	California Proposition 65
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
Other features
Package type	Box
Product colour	Black
Cable type	Round cable
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Warranty period	2 year(s)
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
Logistics data
Warranty period	2 year(s)
