Lindy | SKU:
42782
37% off

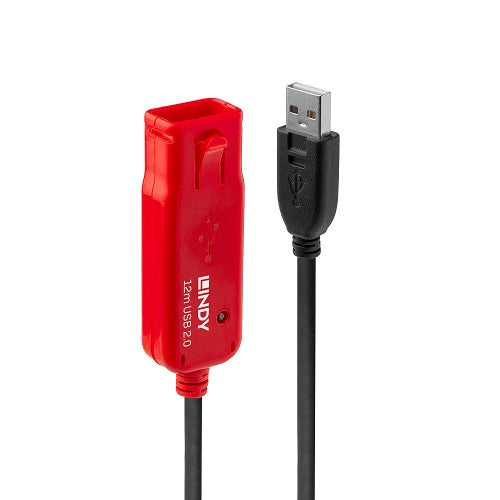

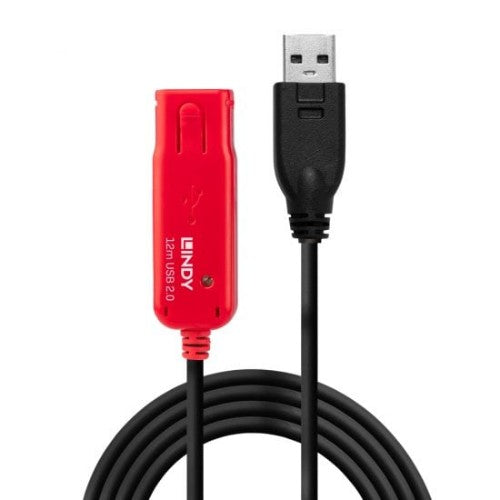

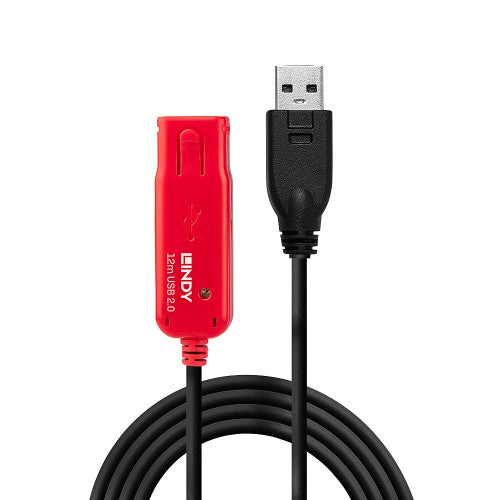

Lindy 12m USB 2.0 Active Extension Pro
€27.57
€43.78
Unit price
/
Unavailable
Shipping calculated at checkout.
Lindy 12m USB 2.0 Active Extension Pro is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
12m USB 2.0 Active Extension Pro
This 12m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.
The 8m and 12m cable, and the 8m and 12m hub, feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

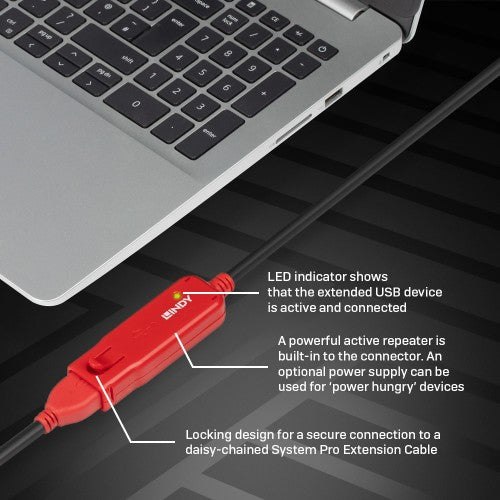

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
Key Features

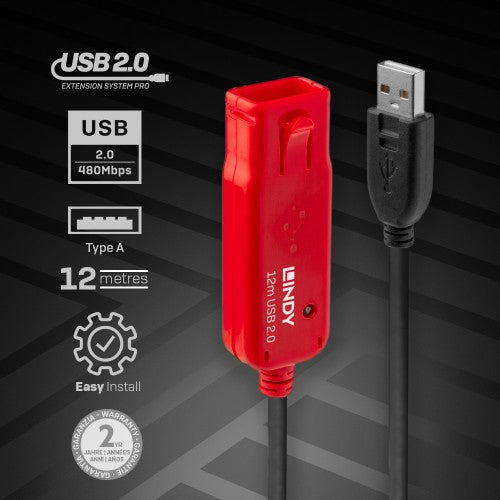

- High performance, active cable that provides an extended 12m connection between a computer and USB 2.0 device

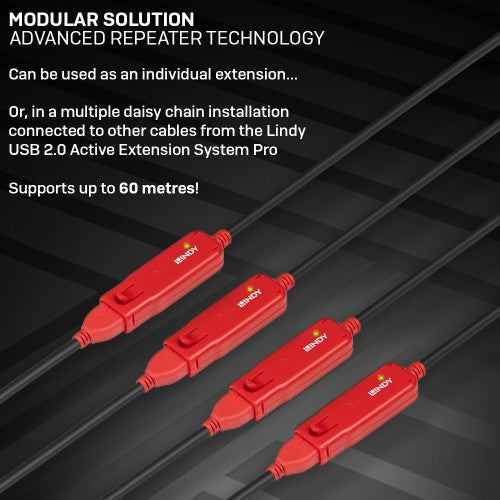

- Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of up to 60m
- Supports USB 2.0 High Speed bandwidth for speeds of 480Mbps
- USB Type A Male to A Female connects to the deviceandrsquo;s existing USB cable (2m maximum)
- 2 year warranty
Description
The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.This 12m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.
The 8m and 12m cable, and the 8m and 12m hub, feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.
This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/20 |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Cable length | 12 m |
| Connector contacts plating | Gold |
| Maximum data transfer rate | 480 Mbit/s |
| Product colour | Black |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Conductor material | Tinned copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector material | Gold/Nickel |
| Contact material | Brass |
| Connector shield material | Aluminium |
| Connector housing material | Plastic |
| Transmission medium | Twisted pair |
| Nominal attenuation | 0.064 MHz, -0.08 dB 0.256MHz, -0.11 dB 0.512MHz, -0.13 dB 0.772 MHz, -0.15 dB 1 MHz, -0.2 dB 4 MHz, -0.39 dB 8 MHz, -0.57 dB 12 MHz, -0.76 dB 24 MHz, -0.95 dB 48 MHz, -1.35dB 96 MHz, -1.9 dB 200 MHz, -3.2 dB 400 MHz, -5.8 dB |
| Maximum data transfer rate | 0.48 Gbit/s |
| Cable diameter | 5 mm |
| Weight | 420 g |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 5 mm |
| Cable length | 12 m |
| Weight | 420 g |
| Bend radius (min) | 2.6 cm |
| Connector 1 dimensions (WxDxH) | 15 x 43 x 8 mm |
| Connector 2 dimensions (WxDxH) | 20 x 64 x 13 mm |
| Package width | 238 mm |
| Package depth | 202 mm |
| Package height | 66 mm |
| Package weight | 597 g |
| Package type | Box |
| Packaging data | |
| Package width | 238 mm |
| Package depth | 202 mm |
| Package height | 66 mm |
| Package weight | 597 g |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Ports & interfaces | |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector contacts plating | Gold |
| Data transmission | |
| Maximum data transfer rate | 480 Mbit/s |
| Technical details | |
| Product colour | Black |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Other features | |
| Package type | Box |
| Product colour | Black |
| Compatible operating systems | Win ME, 2000, XP, Vista Mac OS Linux |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
