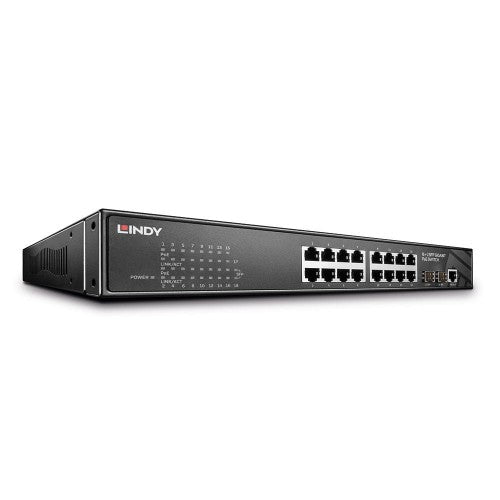

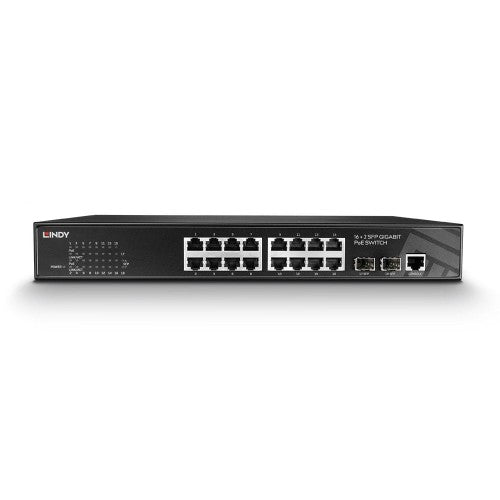

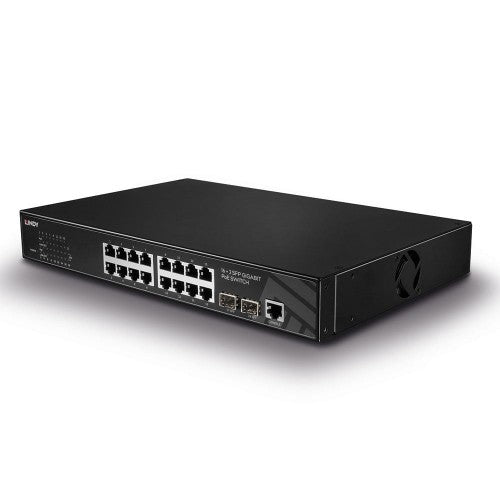

Lindy 16 Port + 2 SFP Gigabit Managed Switch PoE

16 Port + 2 SFP Gigabit Managed Switch PoE

Key Features

• Add 16 Gigabit ports to a network infrastructure using a convenient fibre uplink via 2 SFP slots, while providing power to compatible devices using PoE
• Professional Layer 2 management features for superior network traffic optimisation and control
• Features Jumbo Frame support and IGMP snooping for effective AV Over IP installation integration
• DDM for consistent critical information monitoring of the transmitted and received signals

Description

Add 16 Gigabit ports to a network infrastructure using a convenient fibre uplink via 2 SFP+ slots, while providing power to compatible devices using PoE Professional Layer 2 management features for superior network traffic optimisation and control Features Jumbo Frame support and IGMP snooping for effective AV Over IP installation integration DDM for consistent critical information monitoring of the transmitted and received signals 2 Year Warranty This advanced Lindy 16 Port Gigabit switch with PoE provides a high performance, intelligent expansion to a distributed IP network, while utilising dual SFP+ module slots for longer distance uplink, ideal for larger scale or multi-building installations. All RJ-45 ports are PoE IEEE 802.3at/af compliant providing up to 30W of power to compatible devices, simplifying the whole installation. Supporting full Layer 2 management, traffic can be separated and managed effectively via advanced VLAN features, alongside QoS for independent traffic prioritisation and IGMP Snooping for optimised multicast stream listening, while the user can efficiently control the network via Web Gui, Telnet or command line. Featuring virtual stacking, this switch can also be integrated alongside multiple switches for even larger scale installations, while controlled and managed as a single switch. Optical Digital Diagnostic Monitoring support also ensures the user is provided with consistent critical information regarding the status of both the transmitter and received signals, ensuring faults can be identified and resolved with minimum disruption to the system.

Specifications

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RS-232
Mini-SAS stacking port data rate (max)	36 Gbit/s
Network
IGMP snooping	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Virtual LAN features	Protocol-based VLAN, Voice VLAN
Virtual LAN features
VLAN support	Yes
Virtual LAN features	Protocol-based VLAN, Voice VLAN
Performance
Packet buffer memory	4 MB
Stackable	Yes
Auto-negotiation	Yes
Firmware upgradeable	Yes
Harmonized System (HS) code	85176990
Technical details
Product colour	Black
Stackable	Yes
Housing material	Metal
Firmware upgradeable	Yes
Rack mounting	Yes
Management features
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Configuring Location Settings (CLI)	Yes
Optical fiber
Fiber ethernet cabling technology	1000BASE‑LX, 1000BASE‑SX
Data transmission
Jumbo frames	9600
Packet buffer memory	4 MB
MAC address table	8000 entries
Switching capacity	36 Gbit/s
Jumbo frames support	Yes
Forwarding rate	14.88 Mpps
Security
Authentication	Port-based authentication
Security algorithms	SSH-2, SSL/TLS
MAC address filtering	Yes
IGMP snooping	Yes
DHCP features	DHCP relay, DHCP server, DHCP snooping
Certificates
Certification	CE, UKCA, FCC, RoHS 2.0, REACH
Memory
Packet buffer memory	4 MB
Design
Product colour	Black
Stackable	Yes
LED indicators	Activity, Link, PoE, Power
Housing material	Metal
Certification	CE, UKCA, FCC, RoHS 2.0, REACH
Rack mounting	Yes
Indication
LED indicators	Activity, Link, PoE, Power
Power
AC input voltage	100 - 240 V
AC input frequency	50 Hz
Power consumption (typical)	15 W
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	235 W
Power over Ethernet (PoE) ports quantity	16
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-20 - 80 °C
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	330 mm
Depth	210 mm
Height	44 mm
Weight	2.52 kg
Packaging data
Rack mount kit	Yes
Quick start guide	Yes
User guide	Yes
Manual	Yes
Cables included	AC
Logistics data
Harmonized System (HS) code	85176990
Packaging content
Rack mount kit	Yes
Quick start guide	Yes
User guide	Yes
Manual	Yes
Cables included	AC
