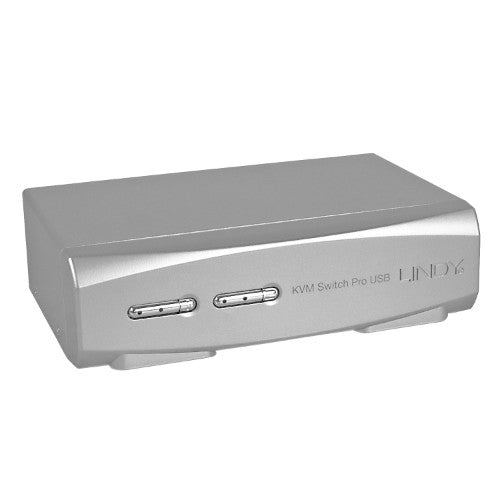

Lindy 2 Port DVI-I Single Link KVM Switch Pro

2 Port DVI-I Single Link, USB 2.0 & Audio KVM Switch

Key Features

• Control two DVI-Single Link computers with one keyboard, monitor and mouse
• True Transparent USB - supports all widely used mice & keyboards
• DDC support for "Plug & Play" monitors
• Independent audio switching meaning you can listen to music on a computer while browsing the internet on the other

Description

Controls two DVI equipped PCs from a single keyboard, mouse and monitor
Switch via the unit’s push buttons or keyboard hot keys
Supports DVI-I single link signals, up to 1920x1200
Independent audio switching and 2 ports USB 2.0 Hub for sharing additional USB peripherials
2 year warranty

A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

The Lindy 2 Port DVI-I Single Link, USB 2.0 & Audio KVM Switch is a compact solution for providing access and control over two DVI equipped PCs from a single keyboard, mouse and monitor.

Support for single link resolutions up to 1920x1200, it can also be used with analogue VGA computer using adapter cables and support analogue resolutions up to 2048x1536. The audio output ports on the main unit also allow users to connect headphones or speaker to add immersive 2CH audio and a microphone, while additional USB peripherals can be integrated with the 2 ports USB 2.0 hub. Both audio and USB hubs can be switched independently of the computers allowing users to print from one PC whilst working on another for example.

It supports True Transparent USB switching, an advanced USB emulation technology that allows the KVM to recognise specific keyboard & mouse models and emulate any of their associated special key and function information. This also provides enhanced support for combined use with KVM extenders.

The KVM switch features multiple switching options including push buttons on the unit and configurable hotkeys that provide simple, reliable control for the user, great for both professional and first time users.

Please Note: connection cables are not included.

Specifications

Ports & interfaces
Console USB ports quantity	4

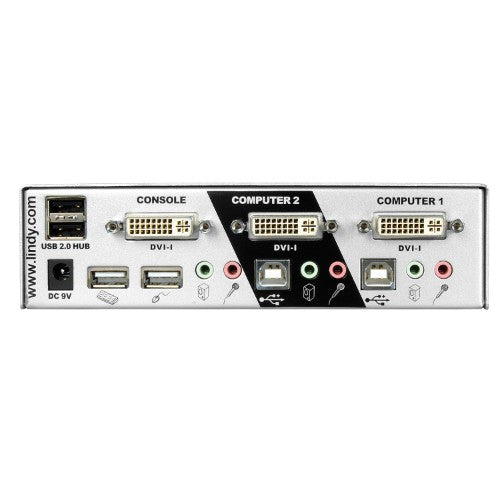

Console ports	3.5mm headphone, 3.5mm mic, DVI-I, USB A
USB version	2.0
USB connector type	USB Type-A, USB Type-B
Number of microphone inputs	2
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-I
Audio connections	Yes
USB 2.0 ports quantity	2
Headphone outputs	2
DVI-I ports quantity	2
DC-in jack	Yes
USB hub	Yes
Network
Ethernet LAN	No
Performance
Maximum digital resolution	1920 x 1200 pixels
Maximum analog resolution	2048 x 1536 pixels
Technical details
Product colour	Silver
Rack mounting	No
LED indicators	Yes
USB version	2.0
USB hub	Yes
Compliance certificates	RoHS
Design
Product colour	Silver
Rack mounting	No
LED indicators	Yes
Certification	CE
Housing material	Metal, Plastic
Display
Built-in display	No
System requirements
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Video
Maximum digital resolution	1920 x 1200 pixels
Maximum analog resolution	2048 x 1536 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	165 mm
Depth	110 mm
Height	46 mm
Weight	950 g
Packaging content
Manual	Yes
AC adapter included	Yes
Certificates
Certification	CE
Logistics data
Harmonized System (HS) code	85176200
