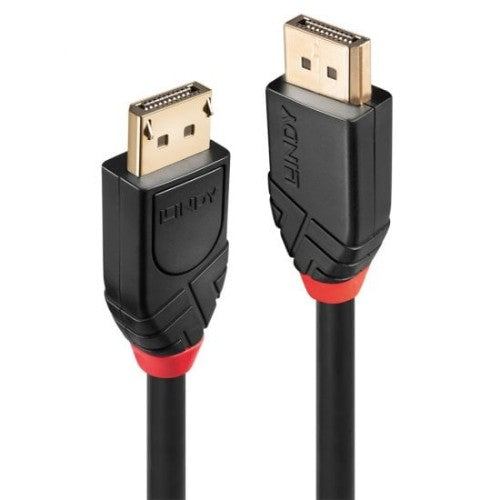

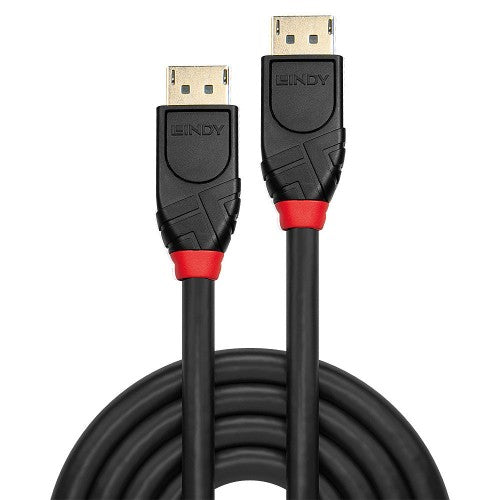

Lindy 20m Active DisplayPort 1.2 Cable

20m Active DisplayPort 1.2 Cable

Key Features

• Creates a long distance connection between a DisplayPort source device and display
• Supports high quality resolutions up to 4K 60hz
• In-built active chipset for reliable longer length DisplayPort transmission
• Bi-directional capability for a more efficient, simpler installation
• 2 year warranty

Description

Lindy's Active DisplayPort 1.2 cables combine a sleek yet functional design with superior performance to provide a reliable DisplayPort transmission over distances not possible with standard passive DP cables. An active chipset, housed neatly in the centre of the cable, allows active cables to amplify DisplayPort signals effectively creating much longer DP transmissions. This creates long distance connections without the need for additional repeaters or extenders. Although many active DisplayPort cables are unidirectional and require connection to the source and display from a specific connector, these cables provide bi-directional capabilities, allowing for a simpler connection while avoiding potential compatibility issues. Combined with a stylishly designed headshell and high quality, flexible cable, these are an ideal solution for hassle-free installations through conduits or behind walls, to provide a more discreet and modern AV setup.

Featuring DisplayPort 1.2 cable technology, these cables are ideal for use with a variety of DisplayPort source device including PCs when connected to DP commercial displays and monitors.With support for resolutions up to 4k 60Hz, video content can be seen with stunning clarity, perfect for creating exciting retail displays, informational digital signage in transport buildings or engaging presentations in education, while 8-channel audio support allows for immersive audio to complement and enhance the viewer's experience.

Additional support for the REC.2020 colour space that covers the wider colour gamut required for high-dynamic range content, for better contrast and more lifelike colour, also provides an enhanced viewing experience.Please note: This cable does not currently support daisy-chain functionality with Lenovo displays.

Specifications

Features
Cable shielding	Aluminum mylar foil
Product colour	Black
Cable length	20 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Cable material	Copper
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	28
DisplayPort version	1.2
Data transfer rate	21.6 Gbit/s
Maximum resolution	3840 x 2160 pixels
Supported video modes	2160p
Certification	CE,FCC, REACH
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 45 °C
Certificates
Certification	CE,FCC, REACH
Compliance certificates	RoHS
Weight & dimensions
Cable diameter	7 mm
Packaging data
Cable diameter	7 mm
Package type	Polybag
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Package type	Polybag
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	84733080
