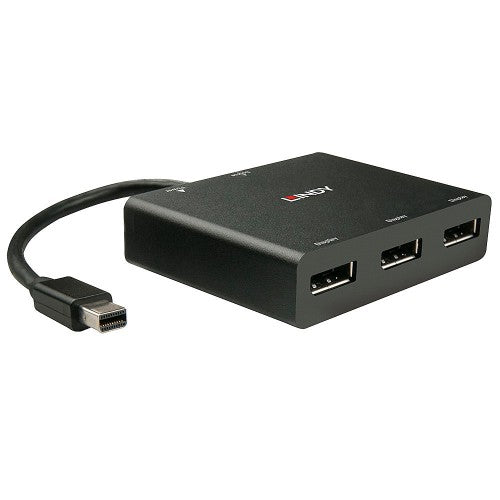

Lindy 3 Port 4K Mini DisplayPort Hub

Mini DP to Triple DisplayPort 1.2 MST Hub

Key Features

• Connect 3 DisplayPort displays to a Mini DisplayPort computer or laptop
• Expand, duplicate or display independent mDP signals over 3 DP monitors
• Supports resolutions up to 4K 60Hz, and audio up to 7.1CH
• Compatible with various graphics cards including AMD Eyefinity, NVIDIA Surround and Intel Collage

Description

Connect 3 DisplayPort displays to a Mini DisplayPort computer or laptop Expand, duplicate or display independent mDP signals over 3 DP monitors Supports resolutions up to 4K 60Hz, and audio up to 7.1CH Compatible with various graphics cards including AMD Eyefinity, NVIDIA Surround and Intel Collage 2 Year Warranty The Lindy 3 Port Mini DP to DP MST Hub is an ideal solution for expanding or duplicating Mini DisplayPort signals across 3 DisplayPort monitors.  MST hubs allow for the connection of a single Mini DP source device including computers, laptops or notebooks to 3 separate DP displays, while also providing the ability to visualise content in multiple ways. Signals can be expanded across both displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail. Content can also be, independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on both displays for use in hospitality, retail or educational scenarios. With support up to 3840x2160@60Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback. This active MST Hub supports DP++ and does not require the source or graphics card to support DP++ to provide dual-mode signals Please note: This hub is not compatible with Apple products

Specifications

Ports & interfaces
Host interface	Mini DisplayPort
Hub interfaces	DisplayPort
Ports quantity	3
Features
Product colour	Black
Certification	CE, FCC, RoHS, UL & REACH
Housing material	Metal
Host interface	Mini DisplayPort
Power

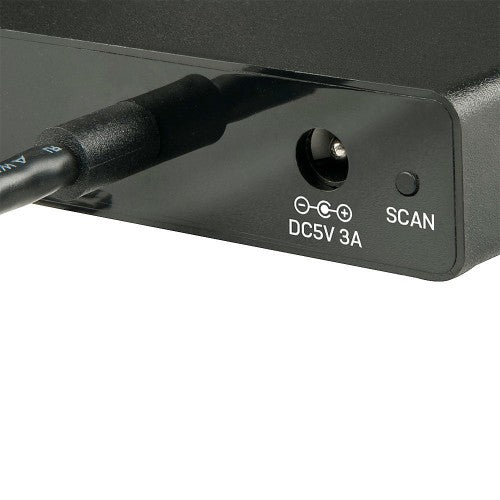

Power source type	DC
Technical details
Product colour	Black
Operating temperature (T-T)	32 - 113 °F
Performance
Certification	CE, FCC, RoHS, UL & REACH
Harmonized System (HS) code	84719000
Weight & dimensions
Weight	85 g
Width	78 mm
Depth	60 mm
Height	18 mm
Package width	240 mm
Package depth	145 mm
Package height	60 mm
Package weight	408 g
Packaging data
Package type	Box
Package width	240 mm
Package depth	145 mm
Package height	60 mm
Package weight	408 g
Quantity per pack	1 pc(s)
Design
Product colour	Black
Certification	CE, FCC, RoHS, UL & REACH
Operational conditions
Operating temperature (T-T)	32 - 113 °F
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	80 - 90%
Certificates
Certification	CE, FCC, RoHS, UL & REACH
Packaging content
Package type	Box
