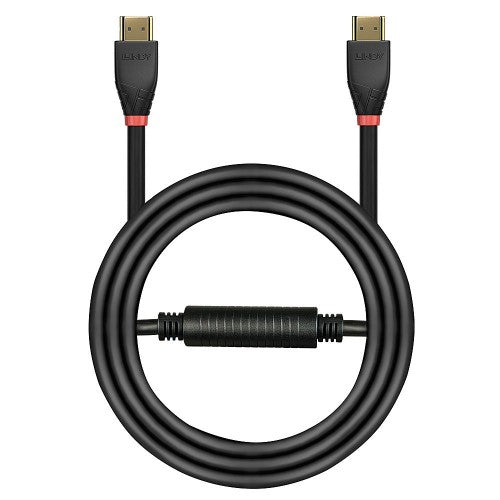

Lindy 30m Active HDMI 10.2G Cable

30m Active HDMI 10.2G Cable

Key Features

• Creates a long distance HDMI connection between a 4K source device and display
• Delivers reliable 4K@30Hz resolutions over longer cable distances
• Active HDMI technology built into the connector for flexible installation
• Full support for HEC, ARC and CEC compliant devices
• 2 Year Warranty

Description

Lindy's Active HDMI 10.2G cables combine sleek, modern design with superior performance to provide high quality, reliable HDMI transmission over long distances. Lindy's range of active cables come with an in-built chipset that amplifys the users signal to create a much longer HDMI transmission that isnt possible with standard passive HDMI cables, while also avoiding the need for additional expensive extenders or repeaters. With the active chipset built discreetly into the stylishly designed headshell, these cables can easily be installed through conduit or tighter spaces. These premium cables also support the full 10.2G HDMI bandwidth to display 4096x2160@30Hz resolutions.

Complying to the HDMI 1.4 cable specification, these cables are ideal for use with a variety of source devices including set-top boxes, HDMI media players or PCs when connected to modern displays or projectors. Perfect for use in eye-catching retail displays, informational digital signage or immersive video playback in sports bars, music venues or high end home cinemas.

With support for a range of multi-channel audio formats, including Dolby® True HD and DTS-HD Master Audio, these cables also ensure an impressive three-dimensional surround sound performance when connected to an amplifier's speaker system. CEC functionality also allows many of the source device's settings to be controlled via the display or projectors controls to provide a simple and effective control solution, while avoiding the necessity for several remote controls.

Lindy's active cables should be connected in accordance with the instructions for the optimum experience. The connector marked andldquo;displayandrdquo; must be connected to the monitor or screen. Failure to connect the cable in the correct manner will result in no signal. Some projectors have recessed HDMI sockets, please ensure they can accommodate the connector used on this cable.

Active HDMI cables cannot be connected together or 'daisy chained'.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
Dolby technologies	DTS-HD Master Audio, Dolby TrueHD
Colour depth	8 bit
Cable shielding	Aluminum mylar foil
Product colour	Black
Cable length	30 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Cable material	Copper
AWG wire size	28
HDMI version	2.0
Bandwidth	10200 MB/s
Maximum resolution	4096 x 2160 pixels
HDCP	Yes
Cable jacket material	Polyvinyl chloride (PVC)
Certification	CE, FCC, RoHS, REACH & UL
Operational conditions
Operating temperature (T-T)	-20 - 80 °C
Storage temperature (T-T)	-10 - 60 °C
Certificates
Certification	CE, FCC, RoHS, REACH & UL
Compliance certificates	RoHS
Weight & dimensions
Cable diameter	8.6 mm
Package type	Polybag
Packaging data
Package type	Polybag
Packaging content
Package type	Polybag
Technical details
Compliance certificates	RoHS
Logistics data
Harmonized System (HS) code	84733080
