Lindy | SKU:
39350
Sold out

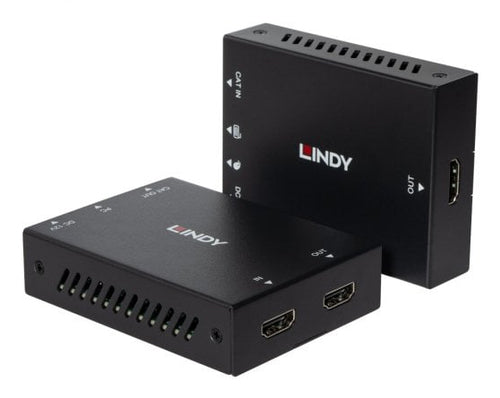

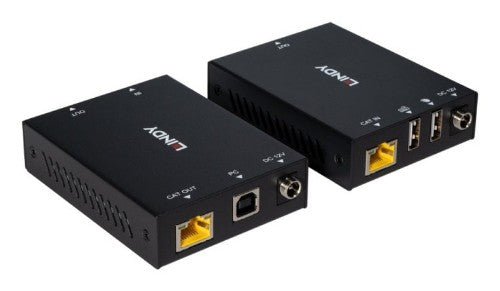

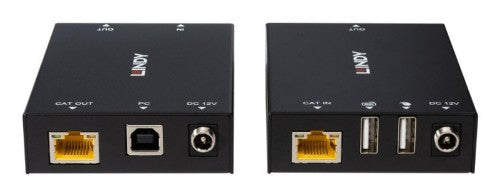

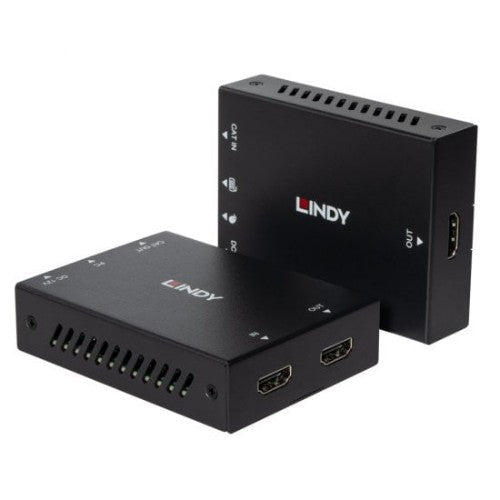

Lindy 39350 KVM extender Transmitter & receiver
€86.83
Unit price
/
Unavailable
Shipping calculated at checkout.
Lindy 39350 KVM extender Transmitter & receiver is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
4.95Gbps, 100m, 1920x1080@60Hz, HDCP, Output: RJ-45/HDMI, Input: RJ-45, 90x68x22mm, Metal, 0.55kg
Supporting resolutions up to Full HD 1920x1080, ideal for high-performance KVM applications and also for creating eye-catching digital signage in retail or engaging setups in larger conference rooms or lectures halls. The transmitter must be connected to a source such as a PC or KVM Switch, the console with display, keyboard and mouse must be connected to the receiver.
The extender features an HDMI® loop-through output on the transmitter which allows for simultaneous viewing using both the local and remote displays.
PoC (Power over Cable) functionality provides additional flexibility; this allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the two units, meaning only a single power supply is required at the transmitter or receiver unit.
Please note that when the PSU is connected to the transmitter to enable the PoC function, the maximum supported distance is 30m for the USB signal and 100m for the video signal; when the PSU is connected to the receiver, the maximum supported distance remains 100m for both USB and video signals.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
This extender provides a simple plug & play installation with no additional drivers required, great for both professional and first time users.
Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point to point connection.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Key Features
- Extends HDMI® and USB HID signals up to 100m using a single Cat.6 cable
- Supports HDMI® FullHD resolutions
- HDMI® loop-out port to connect one additional display on the transmitter
- Supports PoC (Power over Cable), requiring a power supply connection from only one side of the installation
Description
The Lindy Cat.6 HDMI® & USB KVM Extender allow users to control a source device such as a PC from a single keyboard, mouse and display up to 100m using a Cat.6 RJ45 cable.Supporting resolutions up to Full HD 1920x1080, ideal for high-performance KVM applications and also for creating eye-catching digital signage in retail or engaging setups in larger conference rooms or lectures halls. The transmitter must be connected to a source such as a PC or KVM Switch, the console with display, keyboard and mouse must be connected to the receiver.
The extender features an HDMI® loop-through output on the transmitter which allows for simultaneous viewing using both the local and remote displays.
PoC (Power over Cable) functionality provides additional flexibility; this allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the two units, meaning only a single power supply is required at the transmitter or receiver unit.
Please note that when the PSU is connected to the transmitter to enable the PoC function, the maximum supported distance is 30m for the USB signal and 100m for the video signal; when the PSU is connected to the receiver, the maximum supported distance remains 100m for both USB and video signals.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
This extender provides a simple plug & play installation with no additional drivers required, great for both professional and first time users.
Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point to point connection.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat6 |
| Maximum digital resolution | 1920 x 1080 pixels |
| Product colour | Black |
| Material | Metal |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 4.95 Gbit/s |
| HDCP | Yes |
| HDCP version | 1.4 |
| Extended display identification data (EDID) | Yes |
| Transmitter | |
| Transmitter video port type | HDMI |
| Transmitter local video port | Yes |
| Transmitter local video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| Number of displays supported | 1 |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local video ports quantity | 1 |
| Receiver USB Type-A ports quantity | 2 |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1 A |
| DC-in jack | Yes |
| Weight & dimensions | |
| Transmitter width | 9 cm |
| Transmitter depth | 6.8 cm |
| Transmitter height | 2.2 cm |
| Transmitter weight | 550 g |
| Receiver width | 9 cm |
| Receiver depth | 6.8 cm |
| Receiver height | 2.2 cm |
| Receiver weight | 550 g |
| Package width | 215 mm |
| Package depth | 135 mm |
| Package height | 75 mm |
| Package weight | 720 g |
| Packaging data | |
| Package width | 215 mm |
| Package depth | 135 mm |
| Package height | 75 mm |
| Package weight | 720 g |

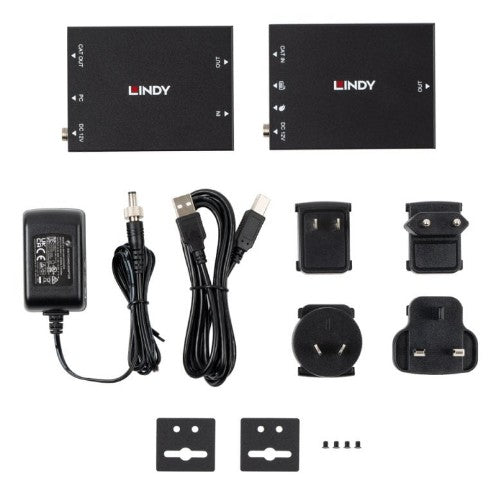

| AC adapter included | Yes |
| Cables included | USB Type-A to USB Type-B |
| Manual | Yes |
| Quick installation guide | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | USB Type-A to USB Type-B |
| Manual | Yes |
| Quick installation guide | Yes |
| Screws included | Yes |
| Technical details | |
| Sustainability certificates | Certified Enviro Cranberries (CEC) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | -20 - 80% |
| Sustainability | |
| Sustainability certificates | Certified Enviro Cranberries (CEC) |
| Other features | |
| Bandwidth | 4.95 Gbit/s |
| HDCP | Yes |
| HDCP version | 1.4 |
| Extended display identification data (EDID) | Yes |
