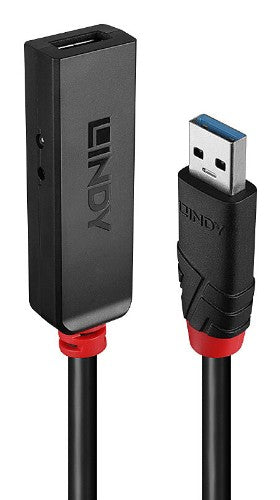

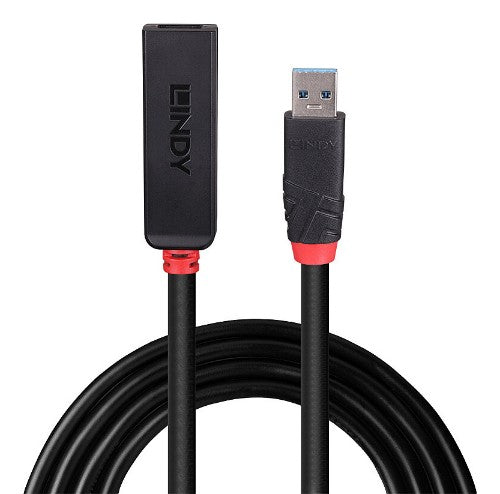

Lindy 3m USB 3.0 Active Extension Slim

3m USB 3.0 Active Extension Slim

Key Features

• USB 3.0 Active Extension Repeater Lead
• Supports transfer rates up to 5Gbps

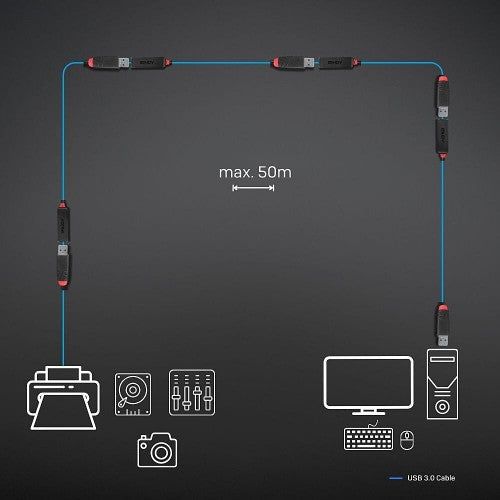

• For even greater distances simply connect up to 5 cables in series
• USB Power Adapter cable included

Description

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 3m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning.

Up to 5 of these USB 3.0 Active Extensions Slim can be chained together. In addition, a maximum of 5 of the different cable lengths of these USB 3.0 Active Extensions Slim can be combined with each other. The only exception is the 15m version No. 43404: as it has 2 chipsets, a maximum of 3 other USB 3.0 Active Extensions Slim can be combined with it.

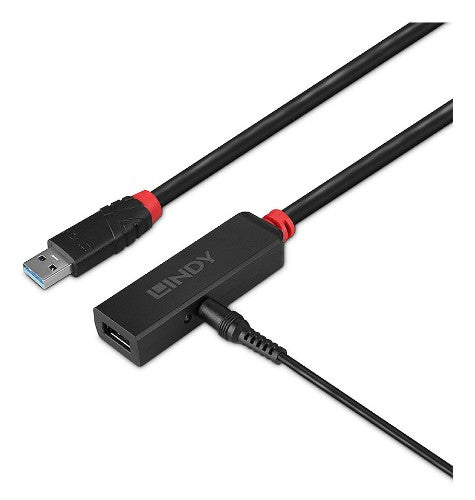

The Lindy USB 3.0 Active Extension Slim is supplied with power via the USB bus, but also has a DC socket for connecting a power supply unit for devices with high power requirements or if you want to connect several cables in series.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. The cable's unique and slim design allows installation in narrow surroundings - an advantage over other active USB leads which use bulky connectors. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.

Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
DC-in jack	Yes
Card reader integrated	No
Ports quantity	2
Cable length	3 m
Features
Plug and Play	Yes
LED indicators	Yes
Product colour	Black
Certification	CE, FCC, RoHS & REACH, CP65
Cable type	Round cable
Cable length	3 m
Data transfer rate	5000 Mbit/s
Housing material	Acrylonitrile butadiene styrene (ABS)
Cable jacket material	Polyvinyl chloride (PVC)
AWG wire size	26
Cable diameter	6.5 mm
Conductor material	Tinned copper
Connector contacts plating	Nickel
Transmission medium	Twisted pair
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Data transmission
Data transfer rate	5000 Mbit/s
Power
Power supply type	DC
Technical details
Plug and Play	Yes
Product colour	Black
Operating temperature (T-T)	32 - 104 °F
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS
Performance
Certification	CE, FCC, RoHS & REACH, CP65
Card reader integrated	No
Plug and Play	Yes
Data transfer rate	5000 Mbit/s
Storage
Card reader integrated	No
Weight & dimensions
Weight	260 g
Connector 2 dimensions (WxDxH)	67.5 x 22 x 13.5 mm
Connector 1 dimensions (WxDxH)	41.1 x 16.5 x 9.5 mm
Package width	236 mm
Package depth	255 mm
Package weight	300 g
Packaging data
Package type	Polybag
Package width	236 mm
Package depth	255 mm
Package weight	300 g
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes
Quick start guide	Yes
Package type	Polybag
Design
LED indicators	Yes
Product colour	Black
Certification	CE, FCC, RoHS & REACH, CP65
Cable length	3 m
Operational conditions
Operating temperature (T-T)	32 - 104 °F
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Minimum operating temperature	0 °C
Maximum operating temperature	40 °C
Certificates
Certification	CE, FCC, RoHS & REACH, CP65
Indication
LED indicators	Yes
Other features
Cable type	Round cable
