Lindy | SKU:
32670
Sold out

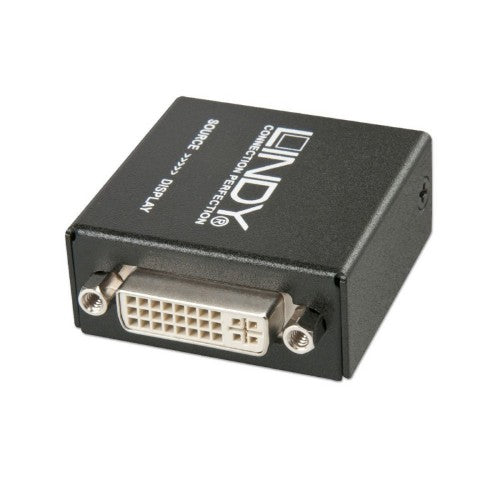

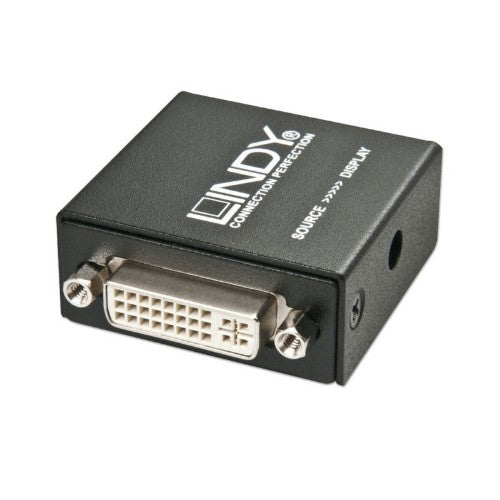

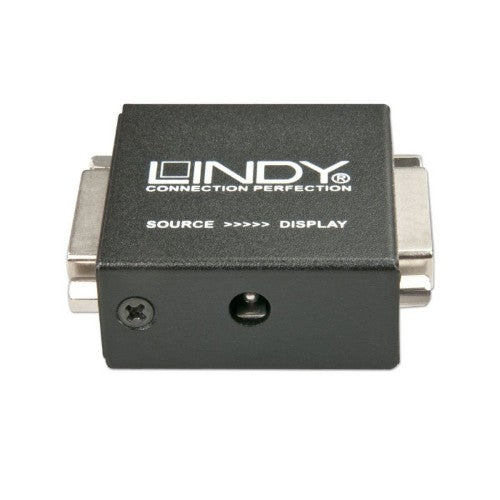

Lindy 45m DVI-D Dual Link Repeater
€34.39
Unit price
/
Unavailable
Shipping calculated at checkout.
Lindy 45m DVI-D Dual Link Repeater is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
45m DVI-D Dual Link Repeater
Featuring a sleek compact design and a simple, efficient installation process, the repeater is ideal for use with professional AV/IT setups that require flexible longer length transmissions with no compromise on video performance. The female DVI-D ports are also perfect for connecting DVI source devices such as graphics cards to DVI displays and projectors.
An optional 5V DC PSU (2.5mm Inner/5.5mm outer diameter) can be used when the source device cannot supply a sufficiently high quality, DVI signal.

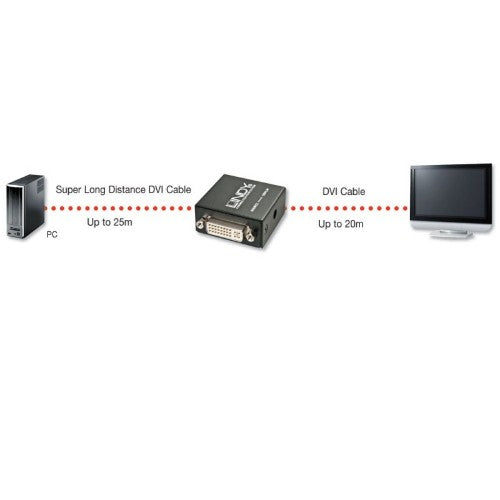

Graphics Cards and Cable Connection Information
Graphics chipset Maximum cable length in / out NVIDIA Quadro FX580 25m / 20m NVIDEA board (supermarket PC) 25m / 15m AMD Radeon HD 6790 10m / 10m ATI Radeon HD 4850 10m / 20m
Description
The Lindy 45m DVI-D Dual Link Repeater can be used to extend high quality DVI digital signals up to distances of 45m, with no image degradation. This repeater supports a maximum resolution of 2560x1600@60Hz for high quality video playback.Featuring a sleek compact design and a simple, efficient installation process, the repeater is ideal for use with professional AV/IT setups that require flexible longer length transmissions with no compromise on video performance. The female DVI-D ports are also perfect for connecting DVI source devices such as graphics cards to DVI displays and projectors.
An optional 5V DC PSU (2.5mm Inner/5.5mm outer diameter) can be used when the source device cannot supply a sufficiently high quality, DVI signal.
Graphics Cards and Cable Connection Information
Graphics chipset Maximum cable length in / out NVIDIA Quadro FX580 25m / 20m NVIDEA board (supermarket PC) 25m / 15m AMD Radeon HD 6790 10m / 10m ATI Radeon HD 4850 10m / 20m
Specifications
| Ports & interfaces | |
|---|---|
| Connector 2 | DVI |
| Connector 1 | DVI |
| Connector 2 gender | Female |
| Connector 1 gender | Female |
| Technical details | |
| Maximum resolution | 2560 x 1600 pixels |
| Input voltage | 5 V |
| Product colour | Black |
| Design | |
| Product colour | Black |
| Performance | |
| Maximum resolution | 2560 x 1600 pixels |
| Input voltage | 5 V |
| Product colour | Black |
| Power | |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 55 mm |
| Weight | 70 g |
| Height | 20 mm |
| Depth | 45 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
