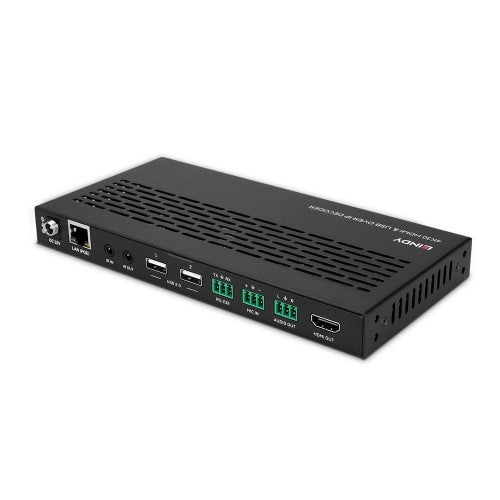

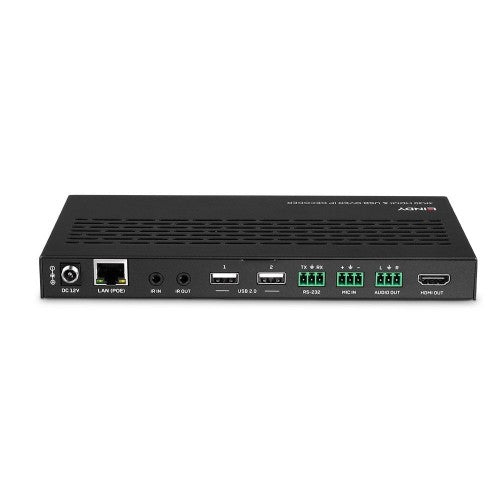

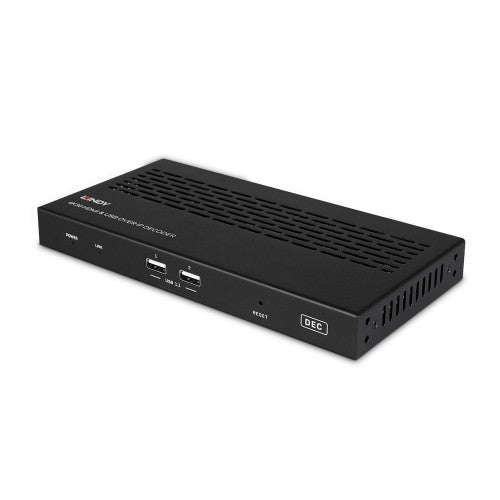

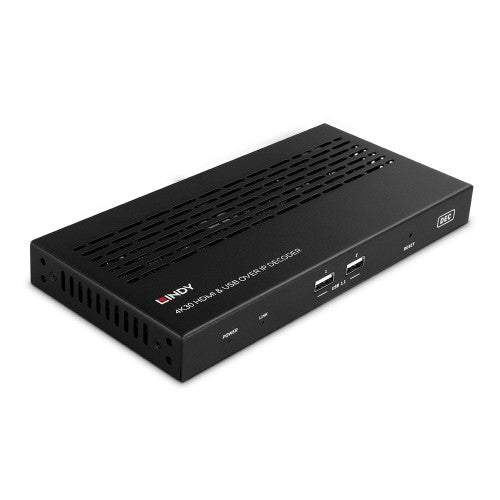

Lindy 4K30 HDMI and USB over IP System - Decoder

4K30 HDMI and USB over IP System - Decoder

Key Features

• Decoder module for the Lindy 4K30 HDMI and USB over IP System
• Allows a wide variety of custom AV and KVM distribution systems to be implemented
• Supports 4K30 HDMI, audio, RS-232, IR remote, LAN, KVM and 3rd party control systems
• Built-in Web GUI browser interface supporting drag and drop operations and image preview
• 2 year warranty

Description

The Lindy 4K30 HDMI and USB over IP system is a powerful solution for creating a wide range of bespoke, distributed AV and KVM installations. The system comprises Encoder (No. 38396) and Decoder (No. 38397) modules and a separate Controller module (No. 38395).

Please note: all modules are sold separately so you can build and scale according to your requirements.

One HDMI source, such as a PC or Media Player, connects to a single Encoder module; one HDMI display connects to a single Decoder module (No. 38397). Multiple Encoders and Decoders can be combined for a variety of multicast distribution options. The controller module is used to manage the full installation and direct the multiple sources to the multiple displays giving maximum creative freedom and customisation options. All the modules can be connected to a 1G managed switch to create a network of connected devices.

Additionally, the system supports USB KVM control access for each connected module, so connected PCs at the Encoder end can be controlled by KVM consoles at the remote Decoder end.

As well as single display options, combining multiple Decoders and their connected displays allows the user to create impressive video wall and matrix solutions.

This extender system provides JPEG2000 main stream and H.264/H265 codec secondary stream which supports API commands to achieve flexible configurations including from third party control apps.

The system requires a layer3 1G managed network switch supporting IGMP snooping and 8K Jumbo frame. With the PoE function it is also possible to power the unit without a PSU.

Specifications

Features
HDCP	Yes
Maximum refresh rate	30 Hz
Type	AV receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	100 m
Bandwidth	18 Gbit/s
Product colour	Black
HDCP version	2.2
Infrared (IR) frequency range	20 - 60 kHz
Technical details
HDCP	Yes
Maximum refresh rate	30 Hz
Package type	Box
Ethernet LAN	Yes
Type	AV receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	100 m
Bandwidth	18 Gbit/s
Product colour	Black
Connectivity technology	Wired
Quantity per pack	1 pc(s)
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Ports & interfaces
Remote (IR) output	1
Remote (IR) input	1
USB ports quantity	4
Serial ports quantity	1
Serial interface type	RS-232
USB version	1.1/2.0
USB connector type	USB Type-A
Ethernet LAN	Yes
RJ-45 input ports	1
Number of HDMI outputs	1
HDMI version	2.0
DC-in jack	Yes
Connectivity technology	Wired
Power
Power over Ethernet (PoE)	Yes
Output current	1 A
Operating voltage	12 V
Power source type	DC
Operational conditions
Storage relative humidity (H-H)	20 - 90%
Operating relative humidity (H-H)	20 - 90%
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Width	204 mm
Package depth	185 mm
Height	21.5 mm
Depth	134 mm
Package width	245 mm
Package height	75 mm
Weight	760 g
Package weight	1 kg
Packaging data
Package type	Box
Package depth	185 mm
Package width	245 mm
Package height	75 mm
Package weight	1 kg
Quantity per pack	1 pc(s)
Packaging content
Mounting kit	Yes
Cables included	IR
AC adapter included	Yes
Manual	Yes
Included power plug types	AU, EU, UK, US
