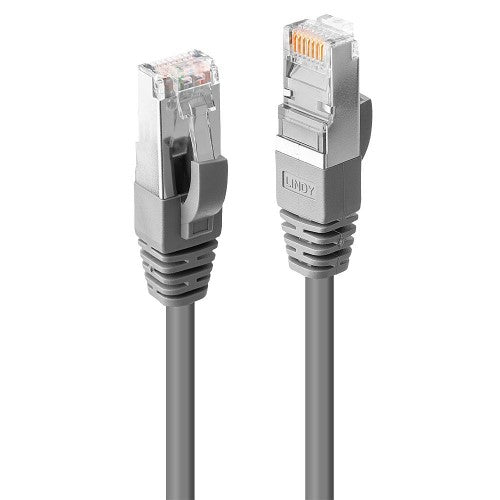

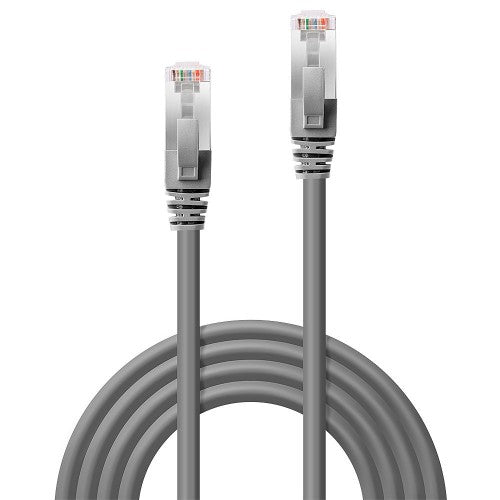

Lindy 50m Cat.6 S/FTP LSZH Cable, Grey

50m Cat.6 S/FTP LSZH Network Cable, Grey (Fluke Tested)

Key Features

• Twisted Pair Patch Cable with RJ45 connectors and Test Report (100% Test)
• Cat.6 S/FTP PIMF, LSZH
• Integrated snagless connector for latch protection
• Gold plated pins for better conductivity and elimination of signal loss

Description

Cat.6 S/FTP network cable with support for bandwidth up to 250MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.6 cable for operating frequencies up to 250MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP).
Cat.6 cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag. The 100% Component test slip included in each polybag ensures flawless compatibility between devices, each component of the cable is individually tested helping to eliminate problems such as insertion loss, return loss and crosstalk.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m.
Available colours: Black, Blue, Gray, Red.

Specifications

Features
Product colour	Grey
Connector shielding	Yes
Connector shield material	Aluminium/Polyester
Conductor material	Copper
Frequency	250 MHz
AWG wire size	26
Cable standard	Cat6
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Nickel/Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Jacket material	Low smoke zero halogen (LSZH)
Cable length	50 m
Connector 2 gender	Male
Connector 1 gender	Male
Bend radius (min)	1.86 cm
Certification	RoHS, REACH, UL
Harmonized System (HS) code	84733080
Operational conditions
Storage temperature (T-T)	-25 - 60 °C
Operating temperature (T-T)	-25 - 60 °C
Certificates
Certification	RoHS, REACH, UL
Weight & dimensions
Outer diameter	6.2 mm
Connector 2 dimensions (WxDxH)	11.6 x 21.5 x 8.3 mm
Connector 1 dimensions (WxDxH)	11.6 x 21.5 x 8.3 mm
Packaging data

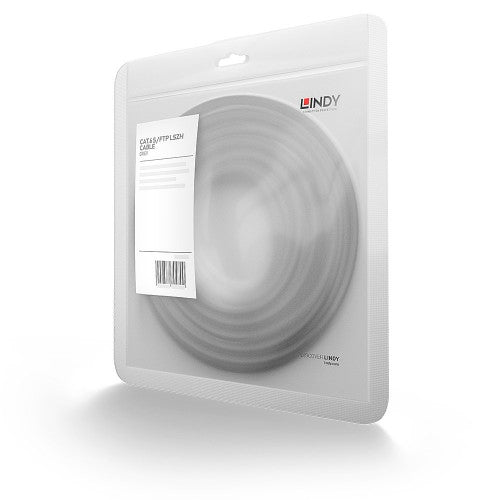

Package type	Polybag
Technical details
Product colour	Grey
Cable standard	Cat6
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Nickel/Gold
Cabling technology	10/100/1000Base-T(X)
Data transfer rate	1000 Mbit/s
Jacket material	Low smoke zero halogen (LSZH)
Cable length	50 m
Other features
Package type	Polybag
Logistics data
Harmonized System (HS) code	84733080
