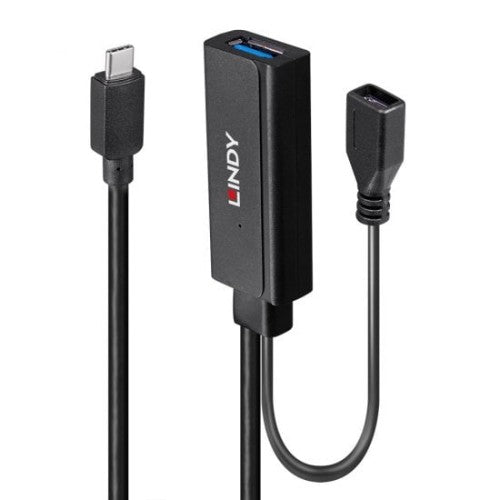

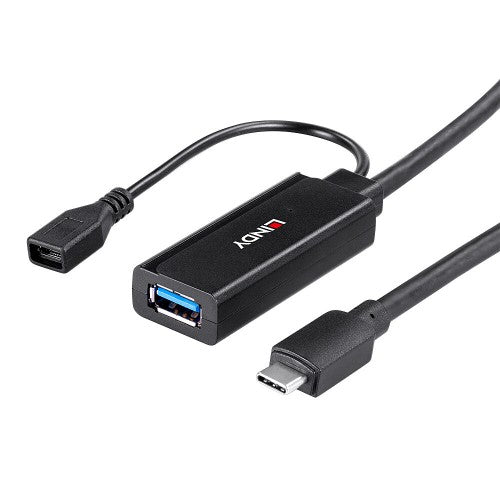

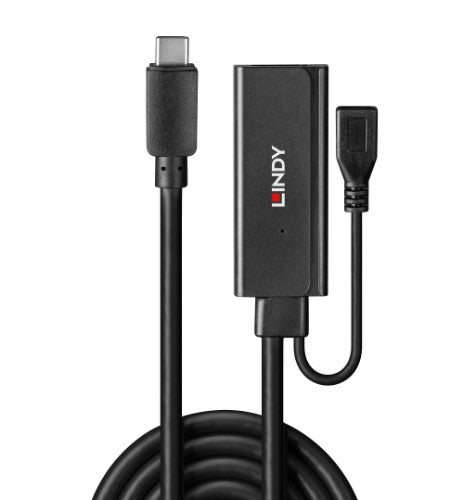

Lindy 5m USB 3.2 Gen 1 C/A Active Extension

5m USB 3.2 Gen 1 C/A Active Extension

Key Features

• 5 metre USB 3.2 Active Extension Repeater Lead
• Supports transfer rates up to 5Gbps
• Micro B socket for connection of an optional external power supply
• Plug and Play
• 2 year warranty

Description

The Lindy USB 3.2 Gen 1 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.2 device by an additional 5m whilst continuing to support fast and efficient data transfer rates of up to 5Gbps. With a reversible Type C input connector and Type A female port, this extension cable allows Type A devices such as pen drives, cameras or smartphones to be connected at longer distances with no compromise on data transfer speeds, ideal for when the Type C device is hard to repeatedly access or when connecting USB devices that are required at a distance such as boardroom webcams.

Compatible with all USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers which, with plug and play functionality, can be installed quickly and with minimum fuss.

The USB Active Extension Cable also features a USB Micro-B socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements. Please note, that USB Power Delivery and DisplayPort Alternate Mode are not supported.

Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.

USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ports quantity	2
Cable length	5 m
Features
Product colour	Black
Cable type	Round cable
Cable length	5 m
Data transfer rate	5000 Mbit/s
Housing material	Acrylonitrile butadiene styrene (ABS)
Plating material	Nickel
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Data transmission
Data transfer rate	5000 Mbit/s
Technical details
Product colour	Black
Operating temperature (T-T)	32 - 104 °F
Compliance certificates	CE, REACH, RoHS
Weight & dimensions
Weight	215 g
Connector 2 dimensions (WxDxH)	23.3 x 56.5 x 12.55 mm
Connector 1 dimensions (WxDxH)	12.66 x 22.4 x 8 mm
Package weight	240 g
Packaging data
Package type	Polybag
Package weight	240 g
Quantity per pack	1 pc(s)
Performance
Data transfer rate	5000 Mbit/s
Packaging content
Manual	Yes
Package type	Polybag
Design
Product colour	Black
Cable length	5 m
Operational conditions
Operating temperature (T-T)	32 - 104 °F
Operating temperature (T-T)	0 - 40 °C
Other features
Cable type	Round cable
