Lindy | SKU:
25116
Sold out

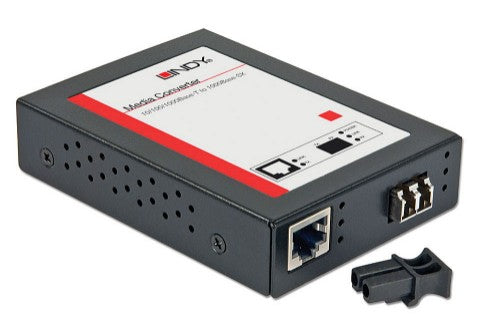

Lindy MediaConverter MultiMode LC GE
€224.87
Unit price
/
Unavailable
Shipping calculated at checkout.
Lindy MediaConverter MultiMode LC GE is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
LC Gigabit Ethernet Fibre Optic Converter, 1000Base-T to 1000Base-SX/LX, Multi-mode
Description
1000Base-T (copper) to 1000Base-SX/LX (fibre) Standards: IEEE 802.3, 802.3u, 802.3x Connectors: LC (fibre), RJ-45 (copper) Fibre Type: Multi-mode Maximum fibre cable distance - 550m using 50/125µm multi-mode cable, 220m using 62.5/125µm multi-mode cable Network data transfer rate: 2000Mbps (Full-duplex) Auto MDI-X support for RJ-45 port connection Status LED for Speed, Link/Activity, Full-duplex, Power External power supply 5V DC, 2A Dimensions: 74 x 102 x 22mm (WxDxH)Specifications
| Network | |
|---|---|
| Fiber optic connector | ST |
| Copper ethernet cabling technology | 1000BASE-LX |
| Fiber ethernet cabling technology | 1000BASE-LX |
| Converter input interface | 1000Base-LX |
| Cabling technology | 1000Base-T, 1000Base-LX |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Duplex system | Full |
| Converter output interface | 1000Base-LX |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Harmonized System (HS) code | 85176990 |
| Weight & dimensions | |
| Dimensions (WxDxH) | 74 x 102 x 22 mm |
| Width | 74 mm |
| Depth | 102 mm |
| Height | 22 mm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Fiber optic connector | ST |
| DC-in jack | Yes |
| Indication | |
| LED indicators | Yes |
| Performance | |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Design | |
| LED indicators | Yes |
| Compliance industry standards | IEEE 802.3, 802.3u, 802.3x |
| Product colour | Black |
| Power | |
| Input voltage | 100 - 240 V |
| Output voltage | 5 V |
| Output current | 2.6 A |
| Colour | |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quick installation guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Other features | |
| Cabling technology | 1000Base-T, 1000Base-LX |
| Power requirements | 5V DC, 2A |
| Interface | Ethernet |
| Full duplex | Yes |
| Dimensions (WxDxH) | 74 x 102 x 22 mm |
| Connector(s) | 1x DC, 1x RJ-45,1x LC |
| Compliance industry standards | IEEE 802.3, 802.3u, 802.3x |
| Cable type | 50/125µm, 62.5/125µm |
| Fiber type | LC |
