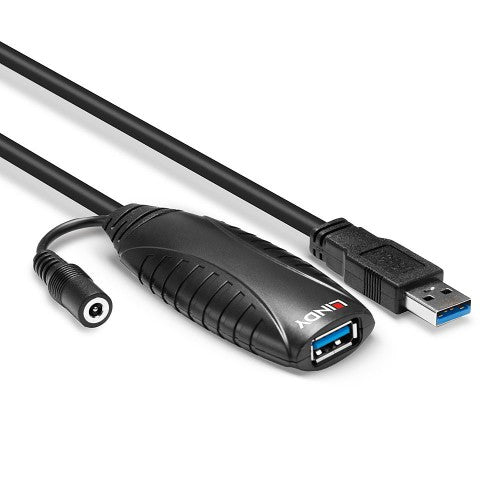

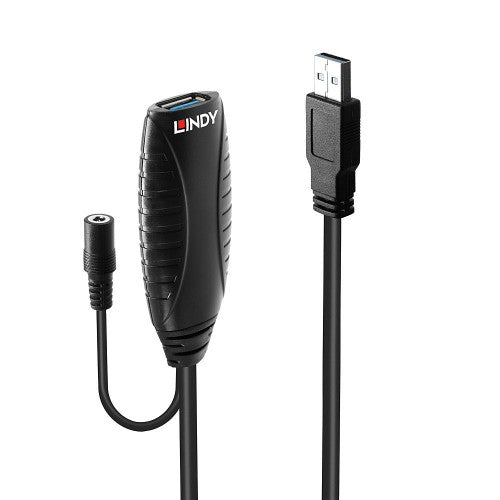

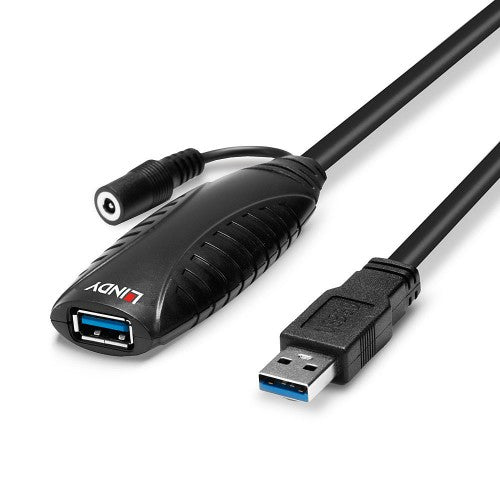

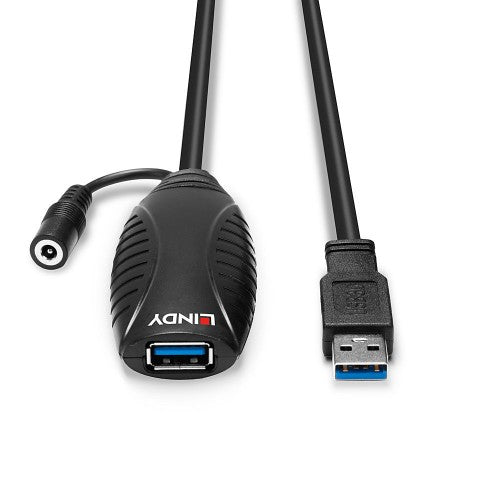

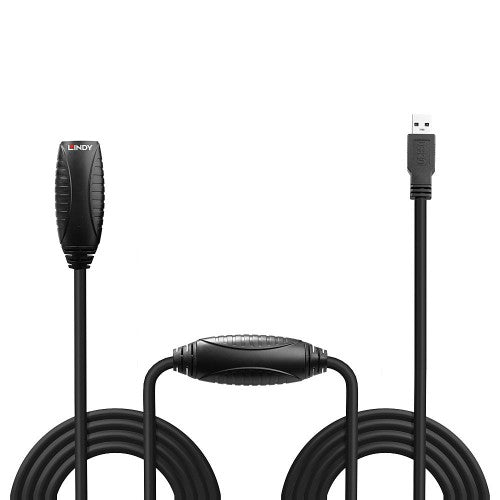

Lindy 10m USB 3.0 Active Extension

The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 10m whilst continuing to support data transfer rates of up to 5Gbps.

With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 20m.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.

The USB active extension cable also features a DC socket for connecting an external power supply (not included) when using USB peripherals which have higher power requirements.Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.,

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Plug and Play	Yes
AWG wire size	28/28/22
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB A
Cable length	10 m
Connector contacts plating	Gold
Maximum data transfer rate	5000 Mbit/s
Product colour	Black
Certification	CE, UKCA, FCC, RoHS, REACH
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Female
Conductor material	Tinned copper
Cable jacket material	Polyvinyl chloride (PVC)
Connector material	Nickel
Contact material	Copper
Connector shielding	Yes
Connector shield material	Aluminium
Connector housing material	Plastic
Transmission medium	Twisted pair
Nominal attenuation	(100 MHz, -1.5 dB) (1.25 GHz, -5.0 dB) (2.5 GHz, -7.5 dB) (7.5 GHz, -25 dB)
Maximum data transfer rate	5 Gbit/s
Cable diameter	6 mm
Weight	515 g
Quantity per pack	1 pc(s)
Power
Power note	3.5/1.35mm DC
Weight & dimensions
Cable diameter	6 mm
Cable length	10 m
Weight	515 g
Bend radius (min)	6 cm
Connector 1 dimensions (WxDxH)	16 x 37 x 9.8 mm
Connector 2 dimensions (WxDxH)	32 x 85 x 10 mm
Package width	140 mm
Package depth	90 mm
Package height	150 mm
Package weight	600 g
Package type	Box
Packaging data
Package width	140 mm
Package depth	90 mm
Package height	150 mm
Package weight	600 g
Package type	Box
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 70 °C
Ports & interfaces
USB version	USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1	USB A
Connector 2	USB A
Connector contacts plating	Gold
Data transmission
Maximum data transfer rate	5000 Mbit/s
Technical details
Product colour	Black
Harmonized System (HS) code	84733080
Certificates
Certification	CE, UKCA, FCC, RoHS, REACH
Other features
Package type	Box
Product colour	Black
Cable type	Round cable
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 70 °C
Logistics data
Harmonized System (HS) code	84733080
