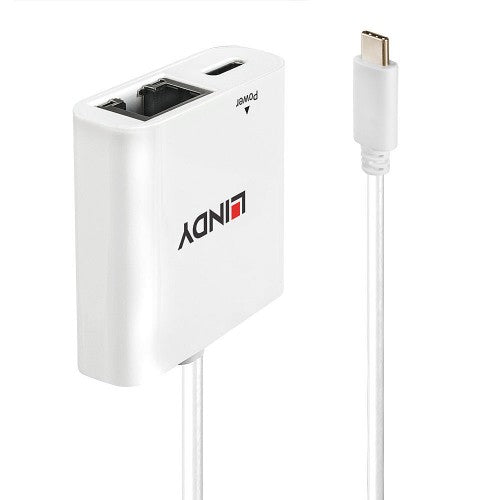

Lindy USB 3.1 Type C Gigabit Ethernet Converter

USB 3.1 Type C Gigabit Ethernet Converter with Power Delivery and PXE Boot

Key Features

• Connects a USB 3.1 Type C computer to a Gigabit Ethernet network
• Supports 10/100/1000BASE-T, full and half duplex mode
• USB 3.1 Gen 1 / 3.0 SuperSpeed data transfer rates up to 5Gbps
• USB Type C Power Delivery port for charging a notebook/Macbook

Description

Connects a USB 3.1 Type C computer to a Gigabit Ethernet network
Supports 10/100/1000BASE-T, full and half duplex mode
USB 3.1 Gen 1 / 3.0 SuperSpeed data transfer rates up to 5Gbps
USB Type C Power Delivery port for charging a notebook/Macbook
2 year warranty

The Lindy USB 3.1 Type C Gigabit Ethernet Converter with Power Delivery allows users to conveniently connect a computer, notebook or tablet to a Gigabit Ethernet network via a Type C USB port. The Converter provides USB 3.1 Gen 1 SuperSpeed data transfer rates up to 5Gbps so that the full bandwidth of the network can be used for a reliable and fast internet connectivity. PXE capability allows the computer to boot from a server on a network.

Ideal for ultrabooks or tablets which do not feature wired network connectivity, this converter is compact and lightweight making it convenient to carry around in a laptop or travel bag, allowing for wired network access from a wide range of devices. Power delivery from the USB port powers the converter so no power adapter is required for use. The converter features a USB Type C Power Delivery port which provides simultaneous charging of devices alongside network connectivity. It is also compatible with Thunderbolt 3 ports to allow use with a variety of modern tablets and laptops.

Please note: Any interruption of the power supply will cause the USB bus to reset. This is a technical limitation of USB PD 2.0.

Information about USB 3.0, 3.1 & 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Specifications

Technical details
Plug and Play	Yes
Chipset	RTL8153, VL100
Cable length	0.11 m
Quantity per pack	1 pc(s)
Compliance certificates	RoHS
Network
Data transfer rate	5 Gbit/s
Performance
Plug and Play	Yes
Chipset	RTL8153, VL100
Product colour	White
Harmonized System (HS) code	84733020
Certificates
Certification	CE, FCC, RoHS & REACH
Colour
Product colour	White
Design
Product colour	White
Certification	CE, FCC, RoHS & REACH
Features
Plug and Play	Yes
Chipset	RTL8153, VL100
Harmonized System (HS) code	84733020
Power
USB powered	Yes
Output voltage	20 V
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Weight & dimensions
Width	40.5 mm
Depth	40 mm
Height	14.5 mm
Weight	23 g
Package width	194 mm
Package depth	176 mm
Package height	20 mm
Packaging data
Manual	Yes
Package type	Polybag
Package width	194 mm
Package depth	176 mm
Package height	20 mm
Quantity per pack	1 pc(s)
Logistics data
Harmonized System (HS) code	84733020
Quantity per pack	1 pc(s)
Other features
Data transfer rate	5 Gbit/s
Cable length	0.11 m
Relative humidity	10 - 70%
Chipset	RTL8153, VL100
Packaging content
Manual	Yes
Package type	Polybag
