Lindy | SKU:
32121

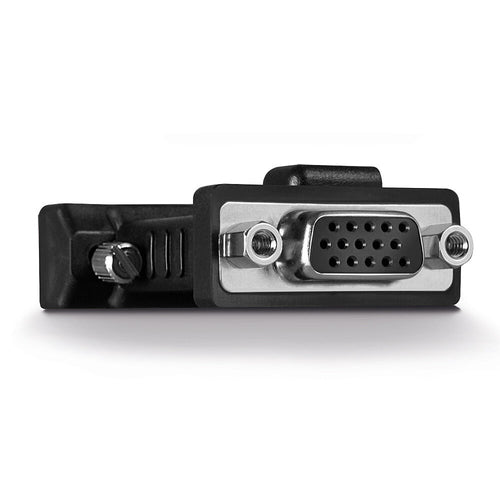

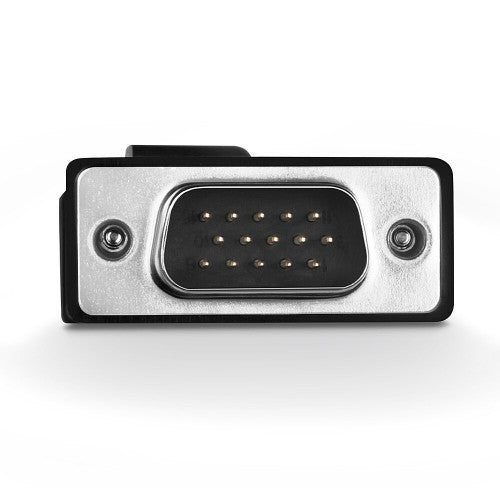

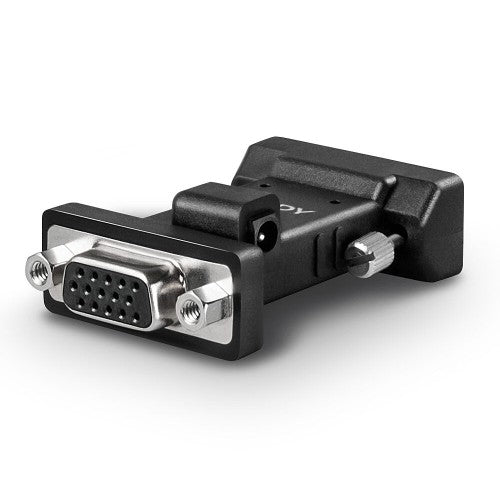

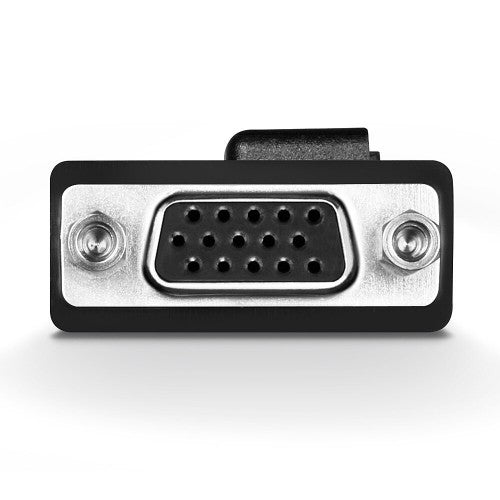

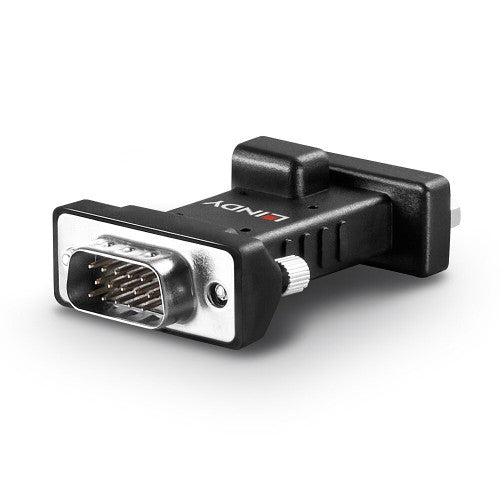

Lindy VGA EDID Emulator
€23.39
Unit price
/
Unavailable
Shipping calculated at checkout.
Lindy VGA EDID Emulator is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
VGA EDID Emulator
Supports resolutions up to 1920x1200@60Hz
For use with 32120 for cloning
Powered via VGA Source Interface, 3.5/1.35mm Optional DC jack for non-powered source devices
2 Year warranty
The Lindy VGA EDID Emulator is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM extenders, switches and splitters. It can also be used in place of a monitor to keep the graphics card of a PC or server awake for remote access via IP. With support for resolutions up to 1920x1200@60Hz, the emulator is suitable for use with legacy PCs and displays. When used with the Lindy EDID recorder (32120) this device can provide cloned EDID information to the graphics card.
It is also possible to use the Emulator without cloning a display as it comes complete with pre-set EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.
Key Features
- Stores EDID data to ensure maximum compatibility between a source and display
- Clones and stores EDID / DDC information from a HDMI, VGA or DVI display
- Overwrites pre-set EDID of emulators with stored EDID for time saving compatibility
- For use with HDMI (32104), VGA (32121) and DVI (32122) EDID Emulators
Description
Continuously emulates VGA EDID informationSupports resolutions up to 1920x1200@60Hz
For use with 32120 for cloning
Powered via VGA Source Interface, 3.5/1.35mm Optional DC jack for non-powered source devices
2 Year warranty
The Lindy VGA EDID Emulator is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM extenders, switches and splitters. It can also be used in place of a monitor to keep the graphics card of a PC or server awake for remote access via IP. With support for resolutions up to 1920x1200@60Hz, the emulator is suitable for use with legacy PCs and displays. When used with the Lindy EDID recorder (32120) this device can provide cloned EDID information to the graphics card.
It is also possible to use the Emulator without cloning a display as it comes complete with pre-set EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.
Specifications
| Performance | |
|---|---|
| Maximum video resolution | 3840 x 2160 pixels |
| Product colour | Black |
| Housing material | Metal |
| Video | |
| Maximum video resolution | 3840 x 2160 pixels |
| Ports & interfaces | |
| VGA (D-Sub) output ports | 1 |
| HDMI ports quantity | 1 |
| Power | |
| Power supply type | DC |
| DC voltage | 5 V |
| Weight & dimensions | |
| Weight | 234 g |
| Width | 48 mm |
| Depth | 22 mm |
| Height | 73 mm |
| Packaging data | |
| Package width | 185 mm |
| Package depth | 55 mm |
| Package height | 140 mm |
| Package weight | 313 g |
| Technical details | |
| Housing material | Metal |
| Colour | |
| Product colour | Black |
| Operational conditions | |
| Storage temperature (T-T) | 0 - 90 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | -20 - 70% |
