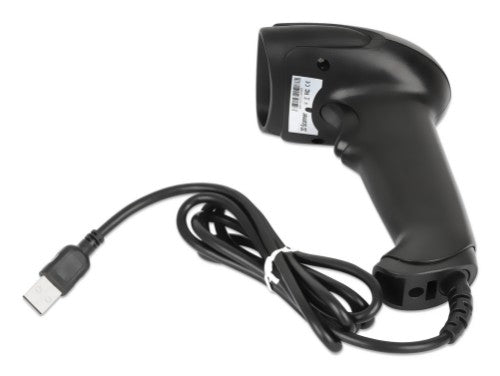

Manhattan Contact CCD Handheld Barcode Scanner, USB, 60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight), Black, Three Year Warranty

Contact CCD Handheld Barcode Scanner, USB, 60mm Scan Width, Cable 152cm, Max Ambient Light 5,000 lux (sunlight), Black, Three Year Warranty

Key Features

• Helps speed data entry, reduce errors and improve efficiency - ideal for retail transactions and automated processes
• Wide scan field providing quick, accurate reads up with a scan depth up to 320 mm (12.6 in.)
• Detects many popular 1D and 2D symbologies including UPC, EAN, QR Code, Data Matrix, PDF417, and many more
• Highest ambient light tolerance of 100,000 lux for reliable readings even in direct sunlight conditions
• Keyboard wedge decoder that enables scanned data to be displayed as if directly entered from keyboard
• Built-in 1.4 m (4.6 ft.) cable with USB-A plug for reliable performance and no need to change batteries
• Easy plug-and-play installation; no drivers or other software required
• Compatible with Windows®, macOS®, Chrome OS™, and Linux®
• Ideal for use with Manhattan Barcode Scanner Stand #154192 for convenient, hands-free operation

Description

Affordable 1D / 2D USB Barcode Scanner that helps you improve Productivity in Retail, Warehousing, and Hospitality
The Manhattan 2D LED Barcode Scanner is your entry-level solution for streamlined data entry and enhanced efficiency to help improve routine transactions and automate paper-based processes. Capture barcodes from mobile devices, 1D and 2D Paper barcodes on items for sale, coupons, loyalty cards and more. This scanner is built for such different industries as retail/point-of-sale, healthcare, hospitality, warehousing or logistics.

Quick and Accurate Reads Every Time
With its wide scan field and scan depth of up to 320 mm (12.6 in.), it ensures quick and accurate reads every time. Significantly reduce errors and delays for seamless operations in your daily business.

Versatile Compatibility for Many Symbologies
Equipped with advanced technology, it detects a wide range of popular 1D and 2D symbologies, including UPC, EAN, QR Code, Data Matrix, PDF417, and many more. Whether it's barcodes or intricate QR codes, it handles it all with precision and speed.

Reliable Performance in Any Lighting Condition
Experience maximum reliability even in the most challenging lighting conditions. With an exceptional ambient light tolerance of 100,000 lux, this scanner delivers reliable readings even in direct sunlight, ensuring uninterrupted workflow.

Plug-and-Play Installation for Effortless Setup
Experience hassle-free installation with easy plug-and-play functionality. No drivers or additional software required, simply connect the USB-A plug and start scanning. Compatible with Windows®, macOS®, Chrome OS™, and Linux®, it seamlessly integrates with your existing systems. Its wired USB connectivity ensures reliable performance without the hassle of changing batteries.

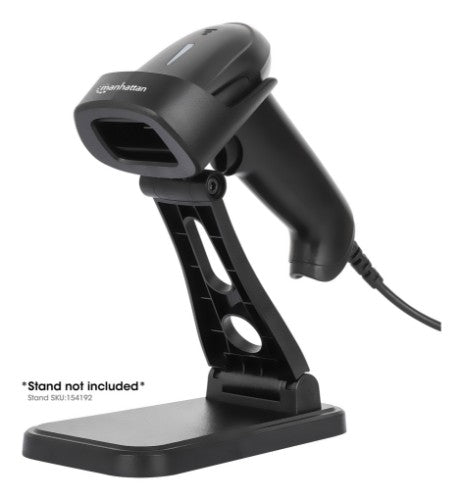

Enhanced Convenience with our Barcode Scanner Stand
For added convenience, pair our scanner with the Manhattan Barcode Scanner Stand #154192 for hands-free operation, ideal for busy retail environments and automated processes.

Specifications

Scanning
Type	Handheld bar code reader
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 Databar Limited, GS1 Databar RSS14, ISSN, Industrial 2 of 5, Interleaved 2 of 5, JAN-13, JAN-8, MSI, Matrix 2 of 5, UPC-A, UPC-E
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, MicroPDF417, PDF417, QR Code
Working distance	32 cm
Sensor type	LED
Scanner type	1D/2D
Read rate (max)	100 reads/s
Light levels (direct sunlight)	0 - 100000 lx
Optical sensor resolution (W x H)	640 x 480 pixels
2D resolution (min)	0.17 mm
1D resolution (min)	0.1 mm
Horizontal field of view	36°
Vertical field of view	28°
Ports & interfaces
Connectivity technology	Wired
Cable length	1.4 m
Standard interfaces	USB
Performance
Housing material	Acrylonitrile butadiene styrene (ABS)
Product colour	Black
Print contrast	25%
Mean time between failures (MTBF)	50000 h
Light levels (direct sunlight)	0 - 100000 lx
Design
Type	Handheld bar code reader
Housing material	Acrylonitrile butadiene styrene (ABS)
Product colour	Black
Power
Power consumption	130 mA
Power source type	USB
Input voltage	5 V
Weight & dimensions
Width	70 mm
Depth	150 mm
Height	95 mm
Weight	110 g
Package width	195 mm
Package depth	80 mm
Package height	105 mm
Package weight	260 g
Technical details
Type	Handheld bar code reader
Housing material	Acrylonitrile butadiene styrene (ABS)
Product colour	Black
Warranty period	3 year(s)
Compliance certificates	CE, REACH, RoHS, UKCA, Federal Communications Commission (FCC)
Packaging data
Package width	195 mm
Package depth	80 mm
Package height	105 mm
Package weight	260 g
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Drop resistance	1.2 m
Light levels (direct sunlight)	0 - 100000 lx
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case width	360 mm
Master (outer) case gross weight	10.2 kg
Master (outer) case length	565 mm
Master (outer) case height	400 mm
