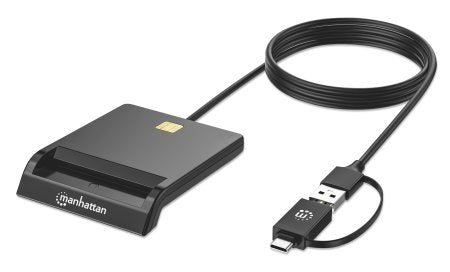

Manhattan USB-A / USB-C combo Smart Card Reader, USB 2.0 Type-C and Type-A Male to Contact Reader Interface, Supports Windows, macOS and Linux, Reads SIM Cards with Adapter (not included or available from ), 1m Cable, Black

USB-A / USB-C combo Smart Card Reader, USB 2.0 Type-C and Type-A Male to Contact Reader Interface, Supports Windows, macOS and Linux, Reads SIM Cards with Adapter (not included or available from Manhattan), 1m Cable, Black

Key Features

• Versatile USB card reader for friction-type, contact smart cards
• Ideal for transactions and applications requiring secure information exchanges like healthcare, banking, government, employee time tracking, and loyalty systems

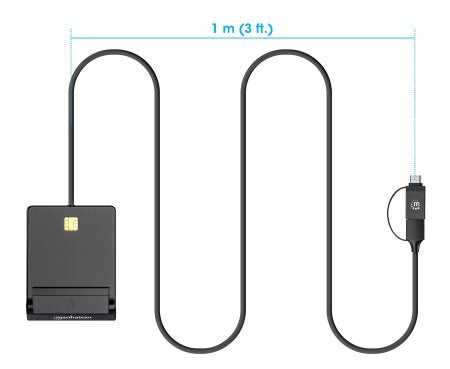

• 2-in-1 combo cable, 1 m (3 ft.), with USB-C and USB-A plugs
• Plug-and-play installation; Windows®, macOS®, and Linux® compatible
• Bus powered: no external power supply needed
• Supports host communication speeds of up to 12 Mbps
• Installs quickly and easily
• Supports JCOP4 and EMV 4.1
• Supports extended APDU exchange for fast, seamless handling of large smart-card data sets and modern eID applications
• Requires adapter to read SIM cards (not included and not available from Manhattan)

Description

External Desktop USB-C and USB-A Contact Smart Card Reader for Secure Data and Access Protection
Smart card technology finds popular applications in security and access control, financial transactions, medical records, loyalty programs, toll and vending collection, enterprise or single-user network sign-on and more that require secure information exchanges. Contact smart cards have a contact, or “chip,"" area with several contact pads that, when inserted into a Manhattan Smart Card Reader, can authenticate the user and safely transfer information between the card and the host computer. Smart cards are utilized extensively in Europe and Asia, and the use of smart cards is growing in North and South America. They replace less secure and less reliable barcode ID and magnetic stripe cards to provide flexible and standard transactions and strong, tamper-resistant authentication with minimal human intervention.

Quick and Easy Installation
Ideal for desktop and notebook computers without built-in readers, the Manhattan Smart Card Reader is easily installed using any USB port. Plug and play with Windows and Mac compatibility, it requires no external power supply or cables - just a simple USB connection.

Specifications

Features
Housing material	Acrylonitrile butadiene styrene (ABS)
LED indicators	Yes
Product colour	Black
Plug and Play	Yes
Payment methods supported	EMV (Chip & PIN)
Product type	Universal smart card reader
Application area	Healthcare, Banking & payments, Government, Access control, Public transit
Technical details
Housing material	Acrylonitrile butadiene styrene (ABS)
Plug and Play	Yes
LED indicators	Yes
Product colour	Black
Compliance certificates	Federal Communications Commission (FCC), CE, RoHS, REACH, UKCA
Weight & dimensions
Package weight	84 g
Width	65 mm
Height	84 mm
Depth	15 mm
Weight	56 g
Design
Housing material	Acrylonitrile butadiene styrene (ABS)
LED indicators	Yes
Product colour	Black
Ports & interfaces
Interface	USB Type-A
Colour
Product colour	Black
Power
Operating voltage	5 V
Current consumption (max)	0.06 A
Power source	USB
Operational conditions
Storage temperature (T-T)	-35 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 85%
Indication
LED indicators	Yes
System requirements
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Packaging data
Package weight	84 g
