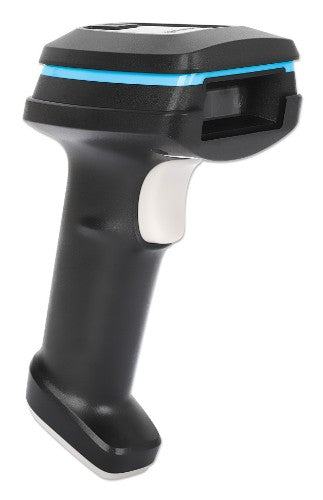

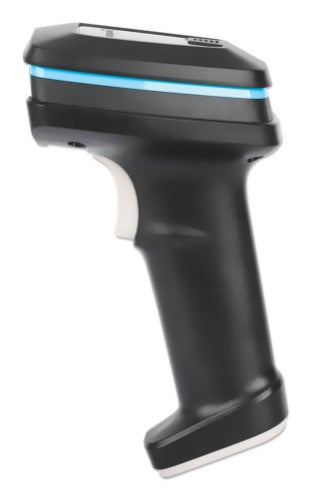

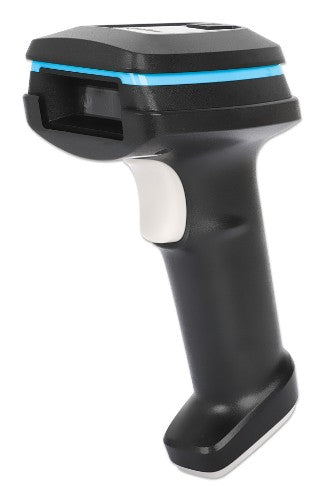

Manhattan Wireless 2D Handheld Barcode Scanner, 250mm Scan Depth, up to 80m effective range (line of sight), Max Ambient Light 100,000 lux (sunlight), Black, Charging cable (USB-A to USB-C into device) 1m included, Three Year Warranty

Wireless 2D Handheld Barcode Scanner, 250mm Scan Depth, up to 80m effective range (line of sight), Max Ambient Light 100,000 lux (sunlight), Black, Charging cable (USB-A to USB-C into device) 1m included, Three Year Warranty

Key Features

• Helps speed data entry, reduce errors and improve efficiency - ideal for retail transactions and automated processes
• Wide scan field providing quick, accurate reads up with a scan depth up to 450 mm (17.7 in.)
• Detects many popular 1D and 2D symbologies including UPC, EAN, QR Code, Data Matrix, PDF417, and many more
• IP52-rated housing to protect against dust and water in harsh environments
• Highest ambient light tolerance of 100,000 lux for reliable readings even in direct sunlight conditions
• Keyboard wedge decoder that enables scanned data to be displayed as if directly entered from keyboard
• Wireless working range up to 100 m (328 ft.) in line of sight from host device with 2.4 GHz RF dongle or up to 50 m (164 ft.) with Wireless 4.2
• Easy plug-and-play installation; no drivers or other software required
• Compatible with Windows®, Android™, iOS®, Chrome OS™, iPadOS®, and Linux®
• Built-in high-capacity lithium-ion battery for 80,000 reads with one charge
• Ideal for use with Manhattan Barcode Scanner Stand #154192 for convenient, hands-free operation

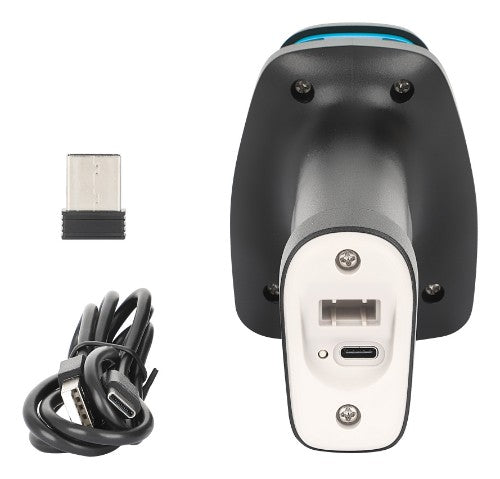

• 1 m (3 ft.) USB-A to USB-C charging cable included

Description

Rugged Cordless 1D / 2D USB Barcode Scanner that helps you improve Productivity in Retail, Hospitality, Warehousing, and Harsh Environments
The Manhattan Wireless 2D Long Range LED Barcode Scanner is your durable solution for streamlined data entry and enhanced efficiency to help improve routine transactions and automate paper-based processes. Capture barcodes from mobile devices, 1D and 2D Paper barcodes on items for sale, coupons, loyalty cards and more. This scanner is built for such different industries as retail/point-of-sale, healthcare, hospitality, warehousing or logistics.

Wireless Connectivity with Computers and Mobile Devices
For classic, simple USB plug-and-play installation, just connect the nano receiver to a USB-A port on your PC, MacBook, or similar device. Alternatively, pair the scanner directly via Wireless 4.2 with all devices, including your iPad® and Android tablet. The transmission range from your host device to the scanner is up to 100 m (328 ft.) with the included 2.4 GHz RF dongle or up to 50 m (164 ft.) with Wireless 4.2.

Quick and Accurate Reads Every Time
With its wide scan field and scan depth of up to 450 mm (17.7 in.) , it ensures quick and accurate reads every time. Significantly reduce errors and delays for seamless operations in your daily business.

Versatile Compatibility for Many Symbologies
Equipped with advanced technology, it detects a wide range of popular 1D and 2D symbologies, including UPC, EAN, QR Code, Data Matrix, PDF417, and many more. Whether it's barcodes or intricate QR codes, it handles it all with precision and speed.

Rugged Design for Harsh Environments
Featuring an IP52-rated housing, our scanner is built to withstand harsh environments with protection against dust and water ingress.

Reliable Performance in Any Lighting Condition
Experience maximum reliability even in the most challenging lighting conditions. With an exceptional ambient light tolerance of 100,000 lux, this scanner delivers reliable readings even in direct sunlight, ensuring uninterrupted workflow.

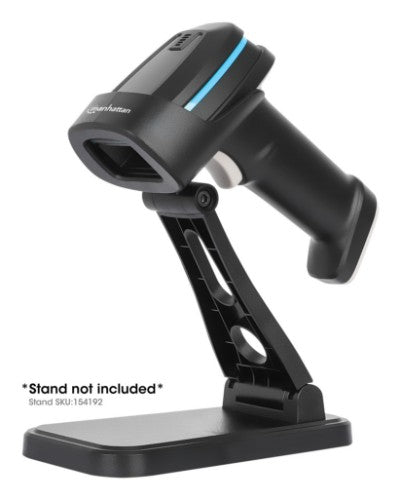

Enhanced Convenience with our Barcode Scanner Stand
For added convenience, pair our scanner with the Manhattan Barcode Scanner Stand #154192 for hands-free operation, ideal for busy retail environments and automated processes.

Specifications

Scanning
Type	Handheld bar code reader
Linear (1D) barcodes supported	China Post, Codabar, Code 11, Code 128, Code 39, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), ISSN, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Telepen, UPC-A, UPC-E, JAN-13, JAN-8
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Dot Code A, Grid Matrix Code, MaxiCode, MicroPDF417, PDF417, QR Code
Working distance	45 cm
Sensor type	LED
Scanner type	1D/2D
Read rate (max)	60 reads/s
Light levels (direct sunlight)	0 - 100000 lx
Optical sensor resolution (W x H)	1280 x 800 pixels
2D resolution (min)	0.18 mm
1D resolution (min)	0.076 mm
Horizontal field of view	45°
Vertical field of view	36°
Ports & interfaces
Wireless range	80 m
Connectivity technology	Wireless
Cable length	1 m
Standard interfaces	RF Wireless
Performance
Protection features	Drop resistant
Housing material	Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code	IP52
Product colour	Black
Print contrast	20%
Mean time between failures (MTBF)	50000 h
Light levels (direct sunlight)	0 - 100000 lx
Design
Type	Handheld bar code reader
Protection features	Drop resistant
Housing material	Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code	IP52
Product colour	Black
Power
Power consumption	280 mA
Power source type	Battery
Charging time	5 h
Battery voltage	3.7 V
Battery capacity	2000 mAh
Charging port type	USB Type-C
Weight & dimensions
Width	67 mm
Depth	87 mm
Height	172 mm
Weight	200 g
Package width	175 mm
Package depth	80 mm
Package height	108 mm
Package weight	320 g
Technical details
Type	Handheld bar code reader
Protection features	Drop resistant
Housing material	Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code	IP52
Product colour	Black
Warranty period	3 year(s)
Compliance certificates	CE, REACH, RoHS, UKCA, Federal Communications Commission (FCC)
Packaging data
Package width	175 mm
Package depth	80 mm
Package height	108 mm
Package weight	320 g
Cables included	USB Type-A to USB Type-C
Receiver type	Nano receiver
Receiver included	Yes
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 95%
Drop resistance	1.2 m
Light levels (direct sunlight)	0 - 100000 lx
Packaging content
Cables included	USB Type-A to USB Type-C
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case width	360 mm
Master (outer) case gross weight	12.8 kg
Master (outer) case length	565 mm
Master (outer) case height	400 mm
