Mercusys 8-Port 10/100/1,000 Mbps Desktop Switch

8 10/100/1000Mbps, IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD, 127 x 60.3 x 22 mm

Key Features

• Eight 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
• Easily wired network expansion
• Compact design for flexible arrangement
• Plug and play setup, no configuration required
• Green Ethernet technology saves power by up to 82%

Description

More Efficient Transmission
8-Port 10/100/1000 Mbps Desktop Switch

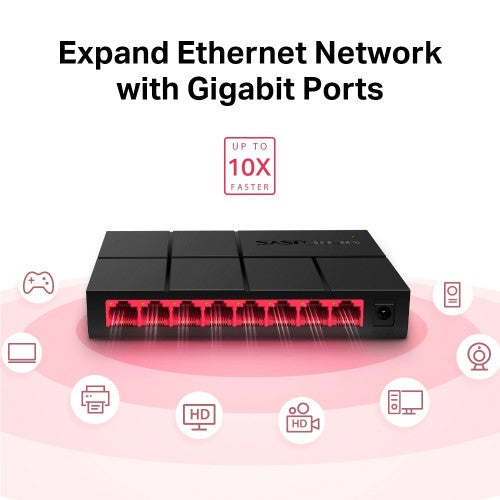

Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with eight 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS108G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.

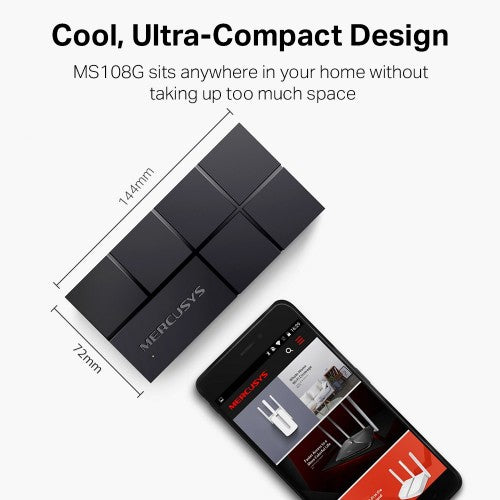

Cool, Ultra-Compact Design
A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS108G sits anywhere in your home without taking up too much space.

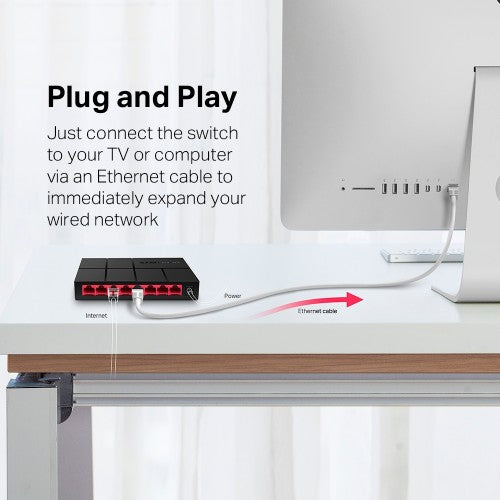

Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.

Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS108G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Specifications

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	8
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Half duplex	Yes
Data transmission
Jumbo frames	9000
Store-and-forward	Yes
Jumbo frames support	Yes
Design
Product colour	Black
Stackable	No
LED indicators	LAN, Power
Rack mounting	No
Power
Power supply included	Yes
Input voltage	9 V
Input current	0.6 A
Power source	DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Weight & dimensions
Width	144.8 mm
Depth	72.3 mm
Height	25 mm
Packaging data
Package width	149 mm
Package depth	93 mm
Package height	62 mm
Package weight	250 g
Performance
Stackable	No
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Technical details
Product colour	Black
Stackable	No
Rack mounting	No
Indication
LED indicators	LAN, Power
Other features
Input voltage	9 V
Logistics data
Harmonized System (HS) code	85176990
