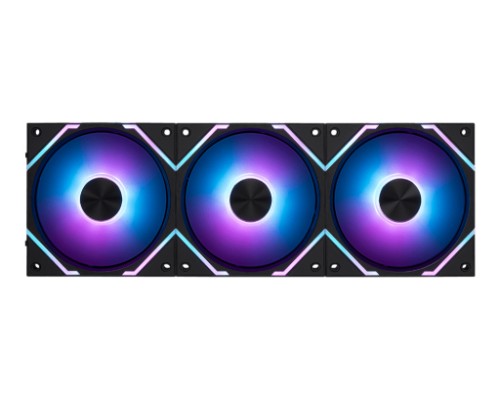

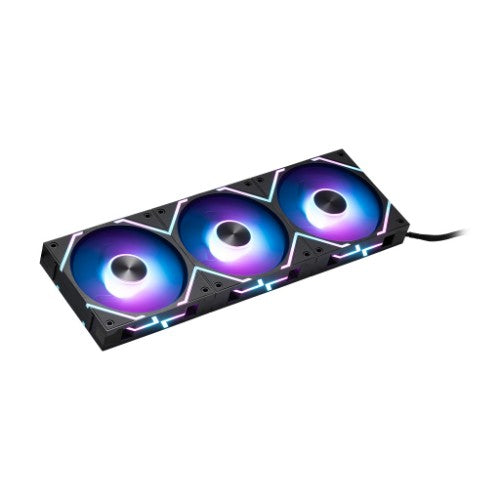

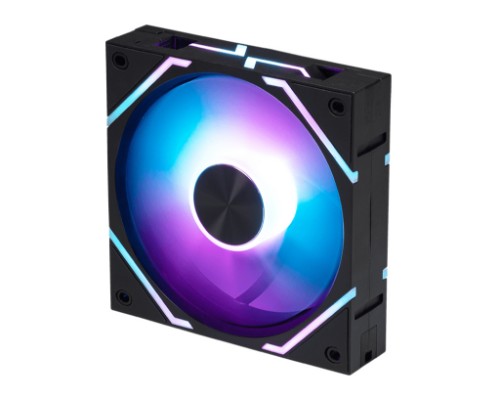

MSI MPG EZ120 ARGB Motherboard, Processor Liquid cooling kit 12 cm Black

0~1900 RPM, 28.82 dBA, 73.82 CFM, 2.56 mmH2O, DC 12 V (Fan) / 5 V (LED), Black

Key Features

• Patented Magnetic Connector Block
• Magnetic Design optimizes installation experience
• Exclusive Fluid Dynamic Bearing with Extra Nut Fixing
• Copper Tube

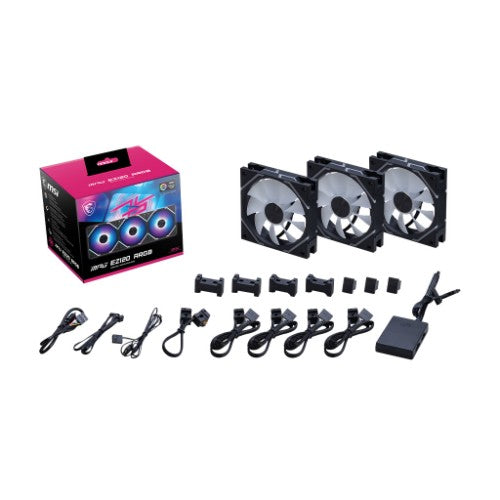

• Optional features: Fan hub & Daisy-chain cable are included in 3-fan/pack

Description

MPG EZ120 ARGB is a new fan product with an optimized assemble experience that reduces the effort and complexity of cable management for PC assembly. As simple as by connecting the fans together by magnetic blocks just like children building blocks. You can also set up the RGB lighting by syncing with the motherboard or customize the color and effects in MSI Center. Show off your relaxed vibe a breeze.

Magnetic Connector Blocks
The Connector Blocks replace the general fan and ARGB cables, making it cableless and more accessible to connect. There are two block connections, one for delivering fan power and speed control and the other for the ARGB signal and synchronization. The blocks do not only deliver power and signal but also strengthen the connection between the fans.

Magnetic Design
The embedded magnet of the fan frame assists the fans to connect well.
Every block of MPG EZ120 ARGB also has an embedded magnet that connects well to the fan and delivers power and signals.

Cable-less
No matter the chassis supports 2 x120 mm or 3 x 120 mm system fans at the same side, there is only one cable connecting to the motherboard or fan hub*.

Daisy-chain Connection
The daisy-chain cable connects fans on different sides of the chassis. It helps cable routing of the rear I/O fan in case there's no suitable fan header on the motherboard.

Versatile Fan Blade Design
While liquid cooler requires high air pressure but airflow is more important to chassis heat dispassion, MPG EZ120 ARGB is suitable for both usages. With the 9-blade design, it has maximum air pressure of 2.56 mmH2O and maximum airflow of 73.82 CFM, always cool your rig.

Fluid Dynamic Bearing with Extra Nut Fixing
The noise of traditional FDB structure is produced by vibration of the bearing. The vibration also affects the fan longevity.

The exclusive structural design optimizes the original fluid dynamic bearing (FDB) design that decreases noise level of bearing and enhances durability by extra nut fixing structure.

Copper Tube
Moreover, with the use of Copper Tube, it has excellent resistance to scaling, high mechanical strength and lifetime resistance.

Amplify Your Creation With Fan Hub
The hub features 4 expansion ports and supports up to 18 MPG EZ120 ARGB fans. It offers flexibility in both configuration and expansion, and maximizes airflow and lighting demands simultaneously.

Total Control In Your Hands
Everything ranging from MPG EZ120 ARB, fan speed to the ARGB lighting control can be adjusted through the MSI Center.

Specifications

Performance
Suitable location	Motherboard, Processor
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Type	Liquid cooling kit
Fan diameter	12 cm
Maximum airflow	73.82 cfm
Maximum air pressure	2.56 mmH2O
Number of fans	3 fan(s)
Pump connector	3-pin
Fan diameter 2	12 cm
Fan noise level (max)	28.8 dB
Fan speed (max)	1900 RPM
Design
Fan connector	4-pin
Number of fans	3 fan(s)
Product colour	Black
Illumination LED	Yes
Technical details
Type	Liquid cooling kit
Fan diameter	12 cm
Maximum airflow	73.82 cfm
Maximum air pressure	2.56 mmH2O
Number of fans	3 fan(s)
Fan connector	4-pin
Illumination LED	Yes
Ports & interfaces
Fan connector	4-pin
Pump connector	3-pin
Colour
Product colour	Black
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 28 mm
Other features
Pump connector	3-pin
