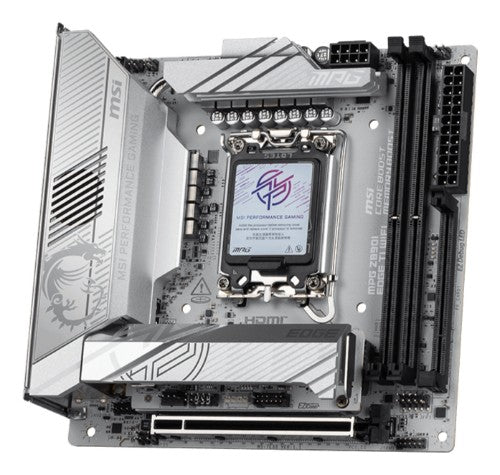

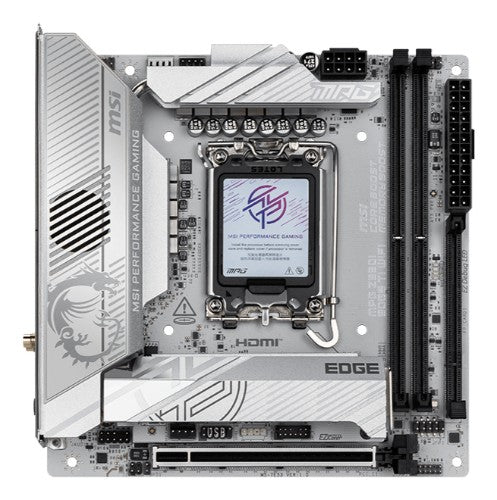

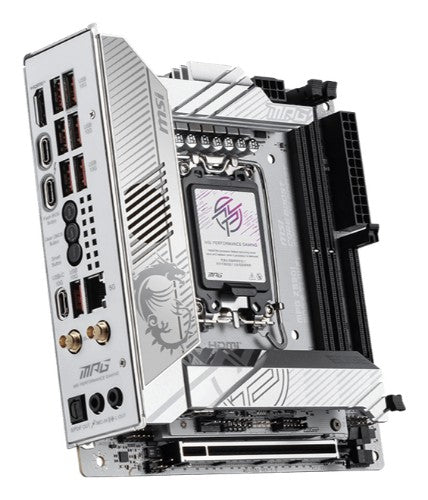

MSI MPG Z890I EDGE TI WIFI motherboard Intel Z890 LGA 1851 (Socket V1) mini ITX

Intel Z890, LGA 1851, 2x DDR5 8600 (OC) MT/s, 1x HDMI, 4x M.2, 2x SATA 6G, 2x Thunderbolt4, 5G LAN, Wi-Fi 7, Mini-ITX

Key Features

• Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, up to 8600+ MT/s (OC)
• Ultra Performance: Direct 10+1+1+1 Power Phases, Core Boost, Memory Boost, 14-layer PCB made by 1oz thickened copper and server-grade level material
• Frozr Guard: Enlarged heatsink with heat-pipe, Frozr Heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• EZ DIY: EZ M.2 Shield Frozr II, Smart Button and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
• Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

Description

mpg-z890i-edge-ti-wifi

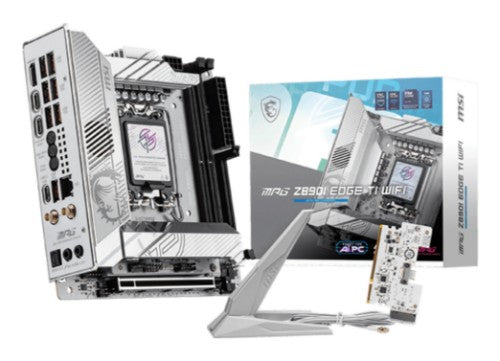

MPG Z890I EDGE TI WIFI is a mini-ITX Z890 motherboard with incredible power and expansion. It features robust power design, Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 connecitvity. The 5-in-1 Xpander brings this motherboard more connectivities. It is definetly the best mini-ITX motherboard for Intel Core Ultra processors.

MSI's premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

DIRECT 10+1+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 10+1+1+1 phases power design. Combining 110A Smart Power Stage, MPG Z890I EDGE TI WIFI is ready for the challenge of high-end processors.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

THE NEXT GEN WI-FI SOLUTION – WI-FI 7
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.

Intel KiLLER Performance Suite
Equipped with Intel Killer LAN / Killer Wi-Fi, you can use the Intel Killer Performance Suite. It not only prioritizes frequently used applications but also provides recommendations to optimize network quality.

Specifications

Internal I/O
Number of M.2 (M) slots	4
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Total number of SATA connectors	2
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
mSATA ports quantity	0
Number of SATA connectors	0
Number of SATA III connectors	2
Number of SATA II connectors	0
CPU fan connector	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Supported processor sockets	LGA 1851
On-board graphics card	No
HDMI version	2.1
Motherboard form factor	mini ITX
Component for	PC
Total number of SATA connectors	2
Maximum internal memory supported by processor	128 GB
Audio
Audio output channels	7.1 channels
Performance
Number of HDDs supported	6
Supported storage drive types	HDD & SSD
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
RAID levels	0, 5, 10
Supported processor sockets	LGA 1851
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Component for	PC
Processor
Processor manufacturer	Intel
Maximum internal memory supported by processor	128 GB
Compatible processor series	Intel Core Ultra (Series 2)
Supported processor sockets	LGA 1851
Processor socket	LGA 1851 (Socket V1)
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	4800,6400,8600 MHz
Maximum internal memory	128 GB
Supported memory clock speed (max)	8600 MHz
ECC сompatibility	Non-ECC
Storage controllers
Number of HDDs supported	6
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID levels	0, 5, 10
Number of storage drives supported	2
RAID support	Yes
Graphics
On-board graphics card	No

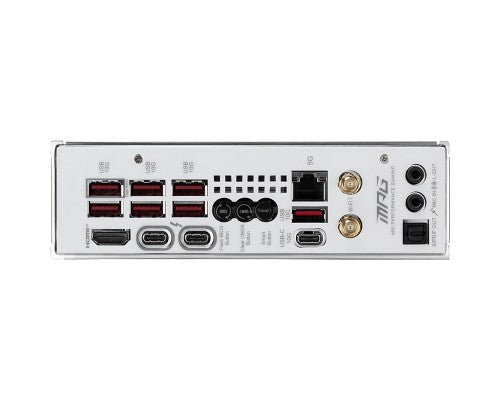

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	7
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	0
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	2
HDMI version	2.1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Ethernet interface type	5 Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	5.4
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller model	Killer Wi-Fi 7 BE1750
Features
Windows operating systems supported	Windows 11 x64
Motherboard chipset family	Intel
Motherboard chipset	Intel Z890
Supported processor sockets	LGA 1851
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Component for	PC
Audio chip	Realtek ALC4080
Product colour	White
Expansion slots
Number of M.2 (M) slots	4
PCI Express x16 slots	1
Software
Windows operating systems supported	Windows 11 x64
Weight & dimensions
Width	170 mm
Depth	170 mm
Other features
mSATA ports quantity	0
