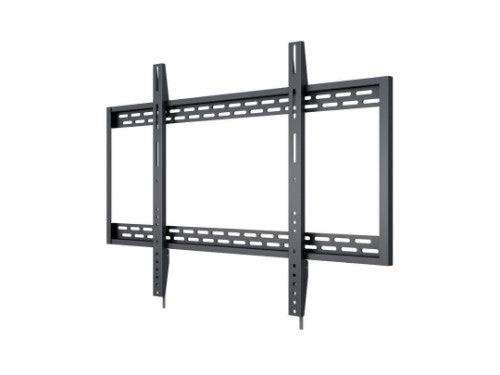

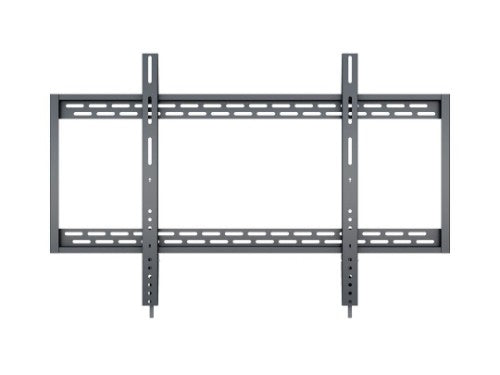

Multibrackets M Universal Wallmount HD 100kg 900x600

M Universal Wallmount HD 100kg 900x600 - Wall mount for LCD / LED panel - arms latch securely - 3mm cold-rolled steel - black - screen size: 60" - 100" - mounting interface: up to 900 x 600 mm

Key Features

• Create almost any Video Wall configurations imaginable
• Clean look & easy to install
• Perfect for digital signage, educational and corporate installations
• To be used in both landscape and portait installations
• Engineered for speed of installation and usability
• Slim 32 mm distance to wall
• Heavy Duty (HD) 100kg max load
• Superduty 3mm cold-rolled steel
• Arms latch securely
• Anti-theft: Lock and key (optional)

Description

The M Universal Wallmount Fixed and Tilt series has been developed to satisfy the growing demand for extra large screen installations into the commercial and public sectors.

Capable of supporting weights of 100kg, the new super-size wall mount is designed to support larger screens, such as heavy touch screens and extra large displays in public places. The universal interface fits screens with VESA mounting patterns up to 900x600 mm and has adjustment screws that enable the screen to be leveled once mounted.

The Multibrackets M Universal Fixed HD is a versatile wall mount for large display installations. With its smart design the mount can be used for both landscape and portrait installations. With a maxweight capacity of 100kg it can handle screens up to 100". With a wide VESA range of 900x600 it can also handle most VESA specifications large screens are using.

The Multibrackets M Universal Mount HD series of fixed, tilt and pull-out mounts from Multibrackets are engineered to solve tough installation problems such as leveling and stud location. Installerinspired features make installation and maintenance safe and easy. This series of mounts makes it easy to take control of your installation. Universal and with low-profile mounts they are engineeredfor speed of installation and usability. With a variety of products ranging from a single TV to a video wall matrix for digital signage, Multibrackets HD mounts are the perfect solution for many applications.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	152.4 cm (60")
Panel mounting interface	200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400,800 x 600,900 x 600
Number of displays supported	1
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	900 x 600 mm
Maximum screen size	2.54 m (100")
Maximum weight capacity	100 kg
Ergonomics
Distance to the wall (max)	3.2 cm
Technical details
Number of displays supported	1
Distance to the wall (max)	3.2 cm
Product colour	Black
Mounting type	Wall
Plastic packaging weight	25 g
Metal packaging weight	4.28 kg
Paper/cardboard packaging weight	1.5 kg
Design
Accepts padlock	Yes
Product colour	Black
Anti-theft function	Yes
Housing material	Steel
Packaging content
Mounting kit	Yes
Manual	Yes
Weight & dimensions
Width	1009 mm
Height	630 mm
Weight	5.9 kg
Depth (max)	3.2 cm
Packaging data
Package width	415 mm
Package depth	1115 mm
Package height	40 mm
Package weight	5.8 kg
Mounting kit	Yes
Manual	Yes
Other features
Mounting type	Wall
