Multibrackets M VESA Full Motion Medical Arm 2,5-6,5kg

M VESA Full Motion Medical Arm -  with flexible 4 joint arms, for medical environments, VESA 75, 100,  monitor weight 2.5-6.5kg, wallmount - white

Key Features

• Designed for medical environments
• Hold monitors 2.5-6.5kg weight
• Light weight & compact
• Great stability and reach
• Easy to stow away after use
• Simple to install
• Hardware kit included

Description

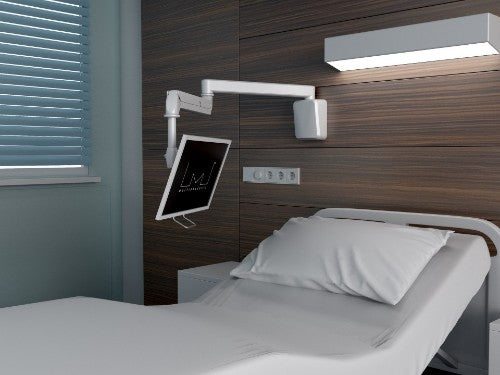

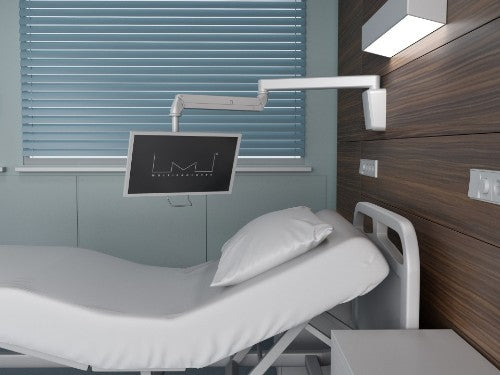

Meet our new wall-mounted articulated monitor arm for LCD’s and infotainment terminals - suitable for hospital environments. Holds monitors weights between 2.5-6.5kg._x000D_
Our M VESA Full Motion Medical Arm is designed for use with LCD’s or infotainment system found in Hospitals and other health related environments. _x000D_
The arm itself holds high medical quality levels in all areas and offer wide flexibility for installation at bedside in a typical hospital room or other such environments. _x000D_
Finally a perfect fit for any installation requiring good reach from a typical swivel arm still compact when stowed away._x000D_
This arm is both light-weight and compact which allows for an easy installation and even easier usage. It features a standard VESA mounting for maximum compatibility. _x000D_
An ingenious tilt mechanism developed by Multibrackets ensures the arm is very easy to maneuver, providing the user with the most comfortable position when using the screen or touch screen of the infotainment system. _x000D_
_x000D_
Flexible wallmount designed for medical environments._x000D_
_x000D_
_x000D_
_x000D_
Easy to install - simple to operate_x000D_
Our M VESA Full Motion Medical Arm was designed to be both light-weight and compact which could allow for a simple and fast installation. Featuring standard VESA 75 and 100 mounting for maximum compatibility to today’s small and medium sized TV’s and infotainment systems. With a flexible tilt function makes this arm easy to maneuver, providing the user with a comfortable position at all times. The design allows for very simple stow away after usage is over._x000D_
_x000D_
Designed for Hospital environments_x000D_
The M VESA Full Motion Medical Arm is designed for hospital environments, it is covered and easy to clean and disinfect to ensure patient safety._x000D_
H

Specifications

Mounting
Minimum screen size	38.1 cm (15")
Panel mounting interface	75 x 75,100 x 100 mm
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Maximum weight capacity	6.5 kg
Maximum screen size	68.6 cm (27")
Ergonomics
Cable management	Yes
Height adjustment	Yes
Height adjustment range	0 - 671 mm
Swivel angle range	-185 - 185°
Tilt angle range	-60 - 20°
Height adjustment type	Manual
Tilt adjustment	Yes
Design
Product colour	White
Housing material	Aluminium, Plastic, Steel
Technical details
Mounting type	Wall
Product colour	White
Cable management	Yes
Weight & dimensions
Width	342 mm
Height	1406.5 mm
Weight	11.4 kg
Package width	559 mm
Package depth	894 mm
Package height	183 mm
Package type	Box
Package weight	13.8 kg
Packaging data
Package width	559 mm
Package depth	894 mm
Package height	183 mm
Package type	Box
Package weight	13.8 kg
Logistics data
Shipping (inner) case width	55.9 cm
Shipping (inner) case length	89.4 cm
Shipping (inner) case height	18.3 cm
Shipping (inner) case gross weight	13.8 kg
Products per shipping (inner) case	1 pc(s)
Other features
Mounting type	Wall
