Multibrackets M VESA Full Motion Outdoor 50/75/100

M VESA Full Motion Outdoor 50/75/100 - Wall mount for LCD display - screen size: 13"-42" - max load: 20kg - VESA: 50x50 75x75 100x100 mm - black - Dacrotized ceramic

Key Features

• Made for indoor/outdoor usage with Dacrotized® corrosion resistant coating
• Easy lockable when into the wall
• The Flexarm’s nest for a slim 67 mm mounting profile
• Dual wall plates are included for easy moving the TV from point A to point B
• Flex, tilt and turn for an optimal viewing angle at any time
• Tilt easily to -2° ~ +12° to reduce glare
• Installation template and tool kit included for simple mounting
• One person tilt adjustment
• Outdoor mounts mounts are Dacrotized®
• A time-proven reliable coating for corrosion protection
• Superiority for high performance corrosion protection
• Superiority in Salt Spray Test and Cycle Corrosion Test
• Superiority of heat resistance and anti-corrosion performanc

Description

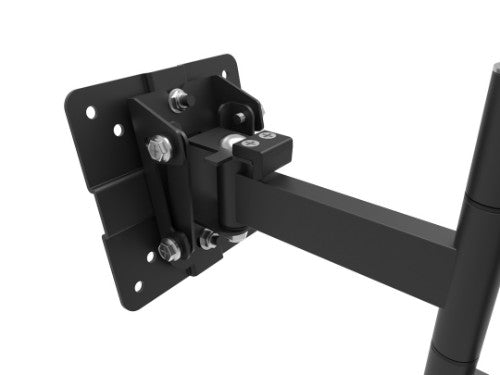

This uniquely designed low profile M VESA Full Motion Outdoor fits most 26" and up to 42" flat panels up to 20 kg. It is well-suited for those applications where seamless integration outdoors or in a moving environment counts the most. M VESA Full Motion Outdoor is part of the Flexarm mounts offering a unique design without compromising on functionality. Moreover, this wallmount has an extended profile of 322 mm from the wall. Specially designed for RVs and boats, this full motion mount features an easy-lock mechanism and adjustable rubber bumpers to prevent your TV from moving during transit. Galvanized and stainless steel parts are used to inhibit rust, while a durable powder coated finish protects against wear and tear. Along with a detachable arm assembly, the M VESA Full Motion Outdoor includes a secondary wall plate, giving you the freedom to easily transfer your TV between your home and vehicle. Velcro cable management straps and screw-on wall plate covers are also included to ensure a clean and organized setup.

Rustproof
To protect against rust and general wear and tear, the M VESA Full Motion Outdoor is constructed out of galvanized steel with a durable powder coated finish, and assembled with stainless steel hardware.

True full motion
Providing 32cm of extension, the articulating arm allows you to tilt, pan and swivel your TV for optimal viewing.

Keep it secure while moving
The M VESA Full Motion Outdoor quick release latch system keeps your TV secure while in transit. Adjustable rubber bumpers are also located behind the TV plate for added stability.

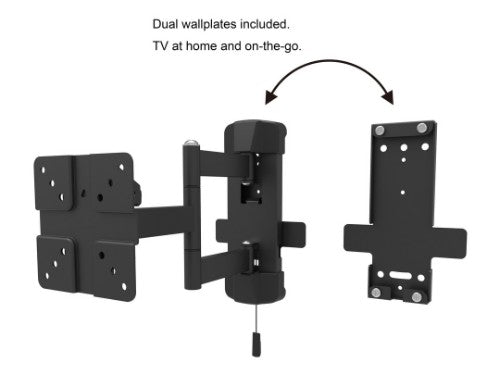

Use your TV in 2 locations
With two wall plates provided you enjoy your TV at home and on-the-go. Easily slide the extension arm off one wall plate and attach it to the other. Perfect when you park the RV or let your boat off for the season, a good and simple anti theft measurement.

All details are included
Not only is the mount rustproof, we also include details to fit almost any installation possibility possible.
Along with screw-on wall plate covers, the M VESA Full Motion Outdoor comes with Velcro straps to keep your cables organized and out-of-sight. Added a full pack of stainless steel screws and other parts are included for an easy to install design and thinking.

This mount is truly great for anyone searching an indoor/ outdoor mount or capabilities to stay secure while in movement.

Supports VESA 50x50, 75x75 and 100x100 mm .

Specifications

Mounting
Mounting type	Wall
Minimum screen size	33 cm (13")
Panel mounting interface	50 x 50,75 x 75,100 x 100
Number of displays supported	1
Minimum VESA mount	50 x 50 mm
Maximum VESA mount	100 x 100 mm
Maximum screen size	106.7 cm (42")
Maximum weight capacity	20 kg
Ergonomics
Tilt angle range	-2 - 12°
Distance to the wall (min)	6.7 cm
Distance to the wall (max)	32.2 cm
Tilt adjustment	Yes
Technical details
Number of displays supported	1
Distance to the wall (min)	6.7 cm
Distance to the wall (max)	32.2 cm
Product colour	Black
Mounting type	Wall
Plastic packaging weight	100 g
Metal packaging weight	2.92 kg
Paper/cardboard packaging weight	1 kg
Design
Product colour	Black
Weight & dimensions
Width	130 mm
Height	180 mm
Weight	3.8 kg
Depth (min)	6.7 cm
Packaging data
Package width	309 mm
Package depth	412 mm
Package height	73 mm
Package type	Box
Package weight	4.02 kg
Logistics data
Shipping (inner) case width	38.5 cm
Shipping (inner) case length	43.2 cm
Shipping (inner) case height	33.4 cm
Shipping (inner) case gross weight	20.7 kg
Products per shipping (inner) case	5 pc(s)
Products per pallet (EU)	20 pc(s)
Other features
Mounting type	Wall
