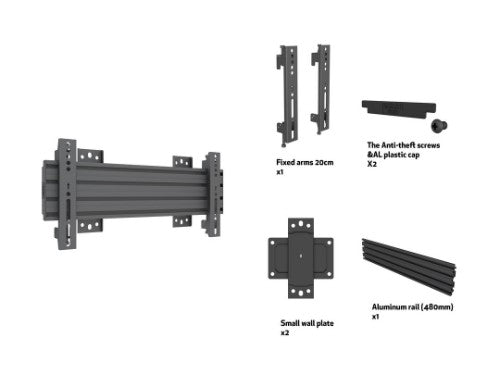

Multibrackets M Wallmount Pro MBSTH1U 400x200 Fixed Black

M Wallmount Pro MBSTH1U 400x200 Fixed Black - Wall mount for LCD display, steel, 1 screen, single side, fixed, VESA Max 400x200 - screen size: Samsung LH37SHFPLBB/EN Stretched - black

Key Features

• A flexible system product ideal for video walls and menuboards
• Includes VESA adapters for compatibility up to VESA 200x600
• Module based aluminum rails creates desirable length without cutting
• Integrated cable management throughout the entire solution
• Power click install for an easy, fast and safe installation
• Dual wallplates included
• Portrait or landscape position of screen possible
• Hardware kit included

Description

Multibrackets Pro Series M Wallmount Pro MBSTH1U 400x200 Fixed Black is our innovative - ready to be installed Single-Display Wallmount.

This mount is suited for Ultra-Stretch Digital Signage screens like Samsung LH37SHFPLBB/EN when landscape mounted.

The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Wallmount Pro MBSTH1UP is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.

With its modular construction installers have vast possibilities to change, create, update and reconfigure its design if ideas change over time, then Pro Series can follow.

Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.

The Pro Series possibilities to extend aluminum rail change brackets and add details by individual choice is vast so that one can tailor each mount to its location and function.

The Pro Series includes hardware so that a basic installation should not be a hassle.

Multibrackets Pro Series Public Wallmounts is ideal for any large screen digital signage wallmount application such as videowalls, menuboards and more.

Specifications

Mounting
Maximum weight capacity	50 kg
Panel mounting interface	100 x 100,200 x 200,400 x 200
Number of displays supported	1
Mounting type	Wall
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	400 x 200 mm
Maximum screen size	94 cm (37")
Ergonomics
Angle of rotation	8°
Cable management	Yes
Rotating	Yes
Design
Housing material	Aluminium, Plastic, Steel
Certification	CE
Product colour	Black
Weight & dimensions
Width	492 mm
Height	86 mm
Weight	2.77 kg
Depth (max)	16 cm
Aluminium content weight	0 g
Steel content weight	2.77 kg
Other metals content weight	0 g
Package width	176 mm
Package depth	495 mm
Package height	60 mm
Package weight	3 kg
Package type	Box
Packaging data
Package width	176 mm
Package depth	495 mm
Package height	60 mm
Package weight	3 kg
Package type	Box
Technical details
Angle of rotation	8°
Number of displays supported	1
Mounting type	Wall
Plastic packaging weight	30 g
Paper/cardboard packaging weight	200 g
Metal packaging weight	0 g
Certificates
Certification	CE
Logistics data
Products per shipping (inner) case	1 pc(s)
