Neomounts AV50-500BL PTZ/UC camera shelf kit 43-110" - VESA - max 5 kg - universal

Neomounts AV50-500BL PTZ/UC camera shelf kit 43-110" - max 5 kg - VESA 200x200-800x600 - top and bottom mounting - universal - black

Description

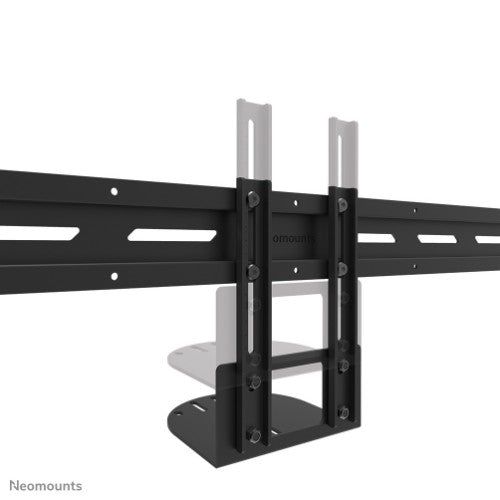

The Neomounts AV50-500BL is a universal PTZ/UC camera shelf kit designed for 43" displays and larger, with VESA hole patterns ranging from 200x200 up to 800x600 mm. Built for durability and versatility, the kit supports devices up to 5 kg and can be installed either above or below the display. Both the camera support and the backplate brackets are height-adjustable for maximum flexibility.

Compatible with virtually all* PTZ/UC cameras, the AV50-500BL guarantees broad applicability. The camera mounting allows both width and height variation, while the VESA frame adjusts in four positions (200/400/600/800). The kit is suitable for VESA orientated wall, floor, desk, and ceiling mounts. Despite its versatility, installation is simple and precise thanks to ruler-guided alignment.

* The Neomounts AV50-500BL kit is truly universal, compatible with any PTZ/UC camera that fits within the bracket?s range (see line drawing). In addition, it is specifically designed for the following models:

- Bose Professional VB-S
- Poly Studio R30/X30/X32 and Studio V12
- Logitech Meetup 2 and Rally Camera
- Yealink MeetingBar A30, UVC20/UVC30 Room/UVC34/UVC40 and MeetingEye 400/600
- Maxhub UC S05/S07/S10/S10 Pro/S15
- Predia Connect Camera

For detailed compatibility with specific models or mounting sizes, please refer to the online manual.

Specifications

Features
Product type	Camera mount
Panel mounting interface	200 x 200,200 x 300,200 x 400,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,800 x 800,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600
Minimum screen size	109.2 cm (43")
Maximum screen size	2.79 m (110")
Maximum weight capacity	5 kg
Number of displays supported	1
Height adjustment range	0 - 55 mm
Product colour	Black
Housing material	Steel
Harmonized System (HS) code	7326909890
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	800 x 600 mm
Technical details
Warranty period	5 year(s)
Country of origin	China
Weight & dimensions
Width	900 mm
Depth	158 mm
Height	552 mm
Weight	4.5 kg
Packaging data
Package width	175 mm
Package depth	958 mm
Package height	86 mm
Package weight	5.8 kg
Logistics data
Products per pallet (EU)	48 pc(s)
Master (outer) case width	273 mm
Master (outer) case length	978 mm
Master (outer) case height	195 mm
Master (outer) case gross weight	17.9 kg
Products per master (outer) case	3 pc(s)
Harmonized System (HS) code	7326909890
Master (outer) case net weight	13.5 kg
