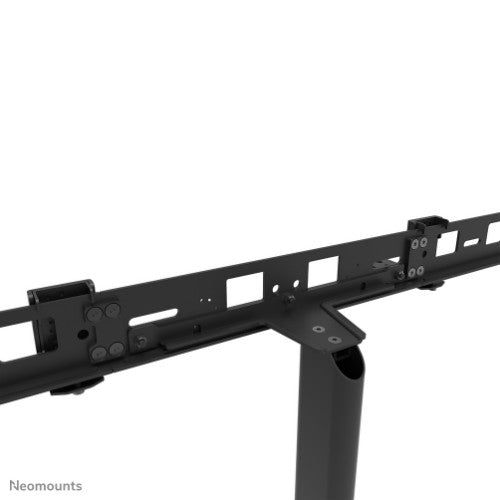

Neomounts AV80-500BL Videobar floor stand - VESA - max 10 kg - universal

Neomounts AV80-500BL Videobar floor stand - max 10 kg - universal - black

Description

The Neomounts AV80-500BL is a universal videobar floor stand built to support devices up to 10 kg, the stand can be placed freely in any space for maximum flexibility. With an adjustable height, ideal for boardrooms and Microsoft Signature Teams Rooms with Front Row layout, it ensures optimal visibility and professional presentation.

Compatible with most* videobars, PTZ cameras, and soundbars, including Logitech Rally speakers, the AV80-500BL offers broad applicability. The mounting holes allow both width and height adjustments, while the VESA frame adapts in four positions (200/400/600/800).

* The Neomounts AV80-500BL floor stand is truly universal, supporting any videobar that fits within the bracket?s range (see line drawing). It is specifically optimized for the following models:

- Bose Professional VB1
- Neat Bar (gen 1) and Bar Pro
- Poly Studio USB, Studio X50/X52/V52 and Studio X70/X72/V72
- Jabra Panacast 40/50
- Logitech Meetup, Meetup 2, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally speakers
- Cisco Webex Room Kit Plus
- Yealink MSpeaker II, MeetingBar A40/A50
- AVer VB350 and VB370A
- Barco ClickShare Bar (Pro)
- Maxhub Xbar U50/V50/W70
- Biamp Parlé ABC 2500(a), VBC 2500(a)/2800 and SBC 2
- Lenovo ThinkSmart One

For detailed compatibility with specific models or mounting sizes, please refer to the online manual.

Specifications

Features
Product type	Videobar mount
Mounting type	Floor
Panel mounting interface	200 x 200,200 x 300,200 x 400,300 x 900,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,460 x 640,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,700 x 400,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600
Minimum screen size	109.2 cm (43")
Maximum screen size	2.79 m (110")
Maximum weight capacity	10 kg
Height adjustment range	0 - 55 mm
Product colour	Black
Housing material	Steel
Harmonized System (HS) code	7326909890
Cable management	Yes
Depth adjustment range	730 - 1230 mm
Minimum VESA mount	200 x 200 mm
Maximum VESA mount	800 x 600 mm
Technical details
Warranty period	5 year(s)
Country of origin	China
Weight & dimensions
Width	900 mm
Depth	362 mm
Height	1264 mm
Packaging data
Package width	376 mm
Package depth	727 mm
Package height	94 mm
Package weight	11 kg
Logistics data
Products per pallet (EU)	40 pc(s)
Master (outer) case width	205 mm
Master (outer) case length	747 mm
Master (outer) case height	396 mm
Master (outer) case gross weight	22.7 kg
Products per master (outer) case	2 pc(s)
Harmonized System (HS) code	7326909890
Master (outer) case net weight	18.6 kg
