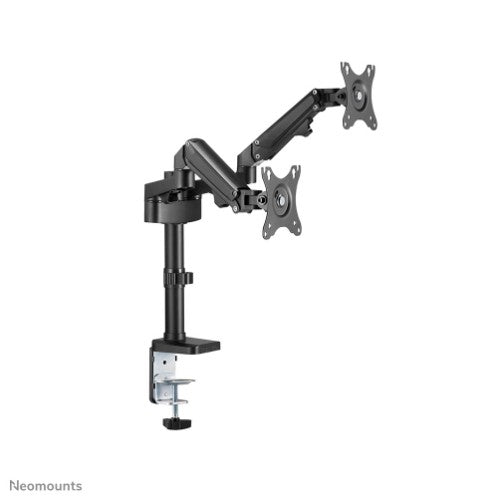

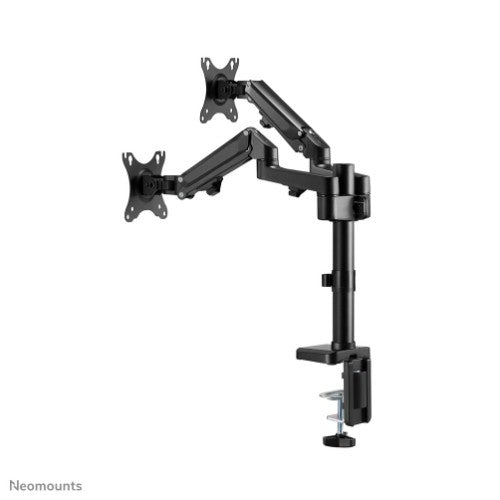

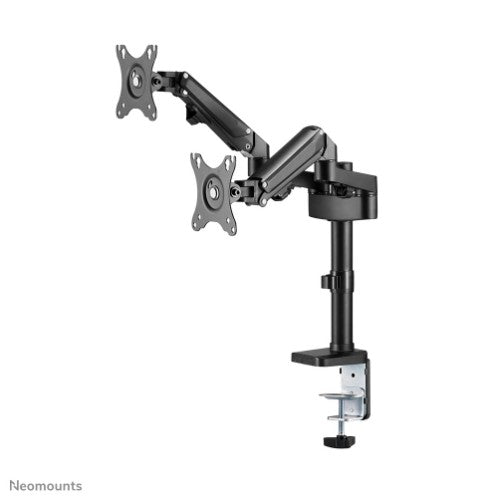

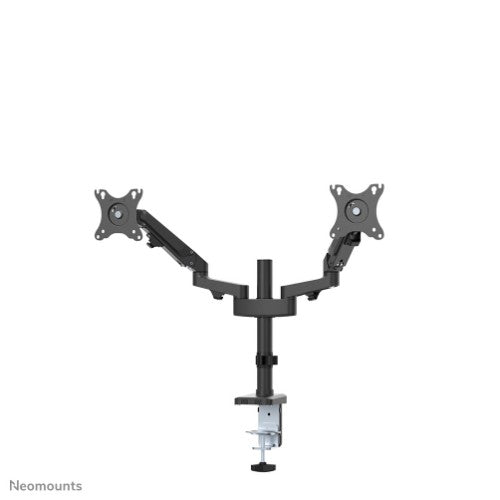

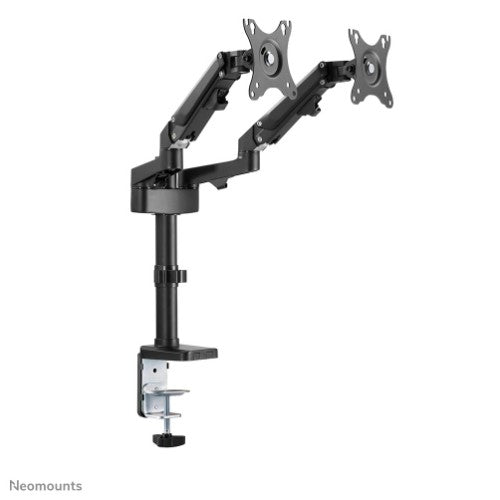

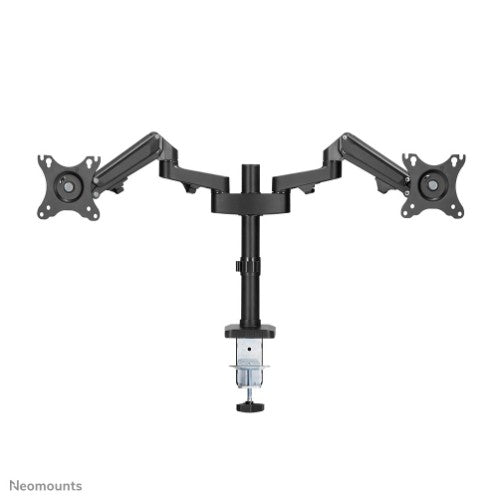

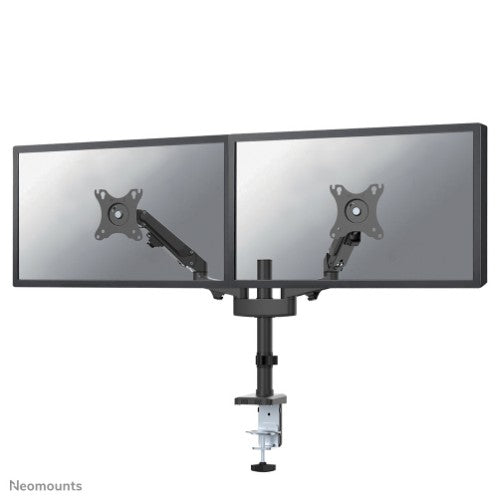

Neomounts DS70-750BL2 Monitor arm 17-27" - gas spring

Neomounts DS70-750BL2 Dual monitor arm - 17-27" - 2-7 kg/screen - gas spring - black

Description

The Neomounts DS70-750BL2 is a full motion desk mount for two flat screens up to 27" with a maximum weight capacity of 7 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (7,3-48,1 cm) and depth adjustment (0-37,8 cm), to create the perfect working position.

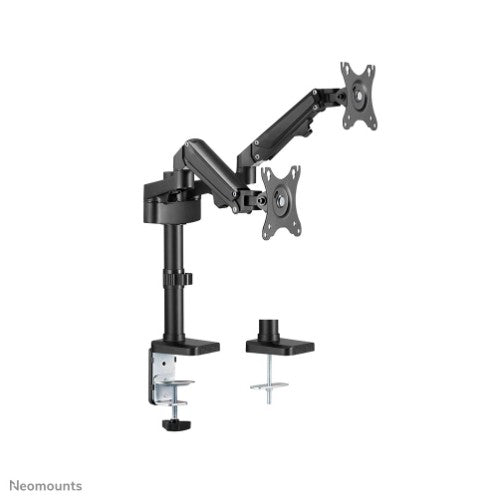

The DS70-750BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-750BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.

Specifications

Mounting
Maximum weight capacity (per display)	7 kg
Desk thickness (min)	1 cm
Desk thickness (max)	8.5 cm
Minimum screen size	43.2 cm (17")
Panel mounting interface	100 x 100,75 x 75 mm
Number of displays supported	2
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Grommet
Maximum weight capacity	7 kg
Maximum screen size	68.6 cm (27")
Ergonomics
Cable management	Yes
Adjustable depth	Yes
Depth adjustment range	0 - 378 mm
Height adjustment	Yes
Height adjustment range	73 - 481 mm
Pivot angle	-180 - 180°
Swivel angle range	-90 - 90°
Tilt angle range	-45 - 45°
Angle of rotation	360°
Height adjustment type	Gas spring
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	Black
Housing material	Steel
Orientation	Landscape/Portrait
Technical details
Mounting type	Desk
Minimum weight	2 kg
Product colour	Black
Width adjustment range	0 - 825 mm
Cable management	Yes
Weight & dimensions
Width	825 mm
Depth	440 mm
Height	679 mm
Weight	3.6 kg
Package width	266 mm
Package depth	132 mm
Package height	425 mm
Package weight	4.4 kg
Package net weight	4.4 kg
Packaging data
Package width	266 mm
Package depth	132 mm
Package height	425 mm
Package weight	4.4 kg
Package net weight	4.4 kg
Quantity per pack	1 pc(s)
Other features
Minimum weight	2 kg
Width adjustment range	0 - 825 mm
Mounting type	Desk
Mounting	Clamp/Grommet
Country of origin	China
Logistics data
Master (outer) case width	440 mm
Master (outer) case length	280 mm
Master (outer) case height	550 mm
Master (outer) case gross weight	18.2 kg
Products per master (outer) case	4 pc(s)
Country of origin	China
Products per pallet (EU)	64 pc(s)
Master (outer) case net weight	14.4 kg
Harmonized System (HS) code	7326909890
