Neomounts NM-D775DX3BLACK Monitor arm 17-27" - gas spring - Topfix - 180°-stop

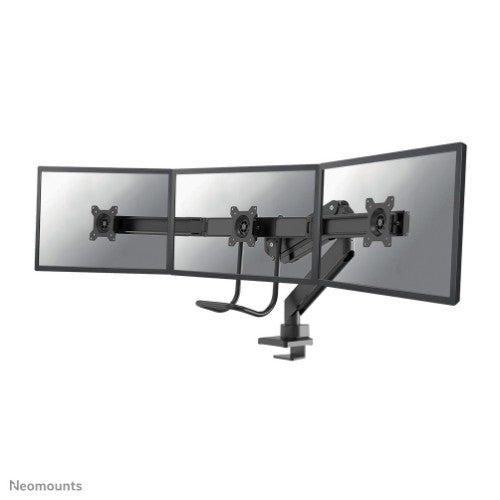

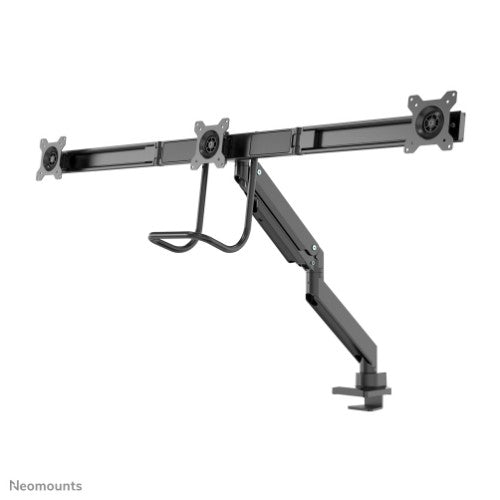

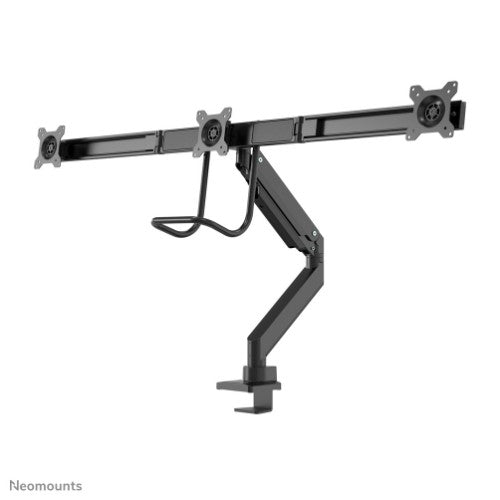

Neomounts NM-D775DX3BLACK Triple crossbar monitor arm - 17-27" - 1-6 kg/screen - gas spring - 180°-stop - Topfix - black

Description

The Neomounts NM-D775DX3BLACK is a tilt-, swivel and rotatable desk mount with crossbar and handle for three flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

Neomounts unique tilt (20°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.

Neomounts NM-D775DX3BLACK with handle has three pivot points and is suitable for most screens up to 27" (68,6 cm). The weight capacity of this product is 1-6 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.

Specifications

Mounting
Maximum weight capacity (per display)	6 kg
Desk thickness (min)	1 cm
Desk thickness (max)	4.5 cm
Minimum screen size	43.2 cm (17")
Panel mounting interface	100 x 100,75 x 75 mm
Number of displays supported	3
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Mounting	Clamp/Grommet
Maximum weight capacity	6 kg
Maximum screen size	68.6 cm (27")
Ergonomics

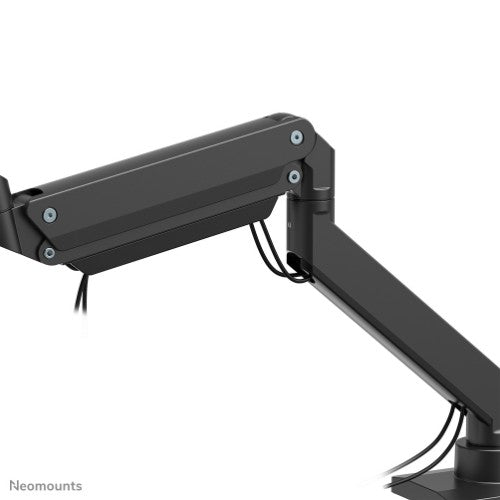

Cable management	Yes
Adjustable depth	Yes
Depth adjustment range	0 - 630 mm
Height adjustment	Yes
Height adjustment range	270 - 600 mm
Swivel angle range	0 - 360°
Swivel angle	360°
Tilt angle range	0 - 20°
Angle of rotation	360°
Height adjustment type	Gas spring
Rotating	Yes
Tilt adjustment	Yes
Swivelling	Yes
Design
Product colour	Black
Housing material	Aluminium
Technical details
Mounting type	Desk
Minimum weight	1 kg
Product colour	Black
Cable management	Yes
Weight & dimensions
Height	600 mm
Weight	8.58 kg
Package width	320 mm
Package depth	145 mm
Package height	623 mm
Package weight	10.2 kg
Package net weight	10.2 kg
Packaging data
Package width	320 mm
Package depth	145 mm
Package height	623 mm
Package weight	10.2 kg
Package net weight	10.2 kg
Other features
Minimum weight	1 kg
Mounting type	Desk
Mounting	Clamp/Grommet
Country of origin	China
Logistics data
Master (outer) case width	340 mm
Master (outer) case length	310 mm
Master (outer) case height	640 mm
Master (outer) case gross weight	10.2 kg
Products per master (outer) case	2 pc(s)
Country of origin	China
Products per pallet (EU)	30 pc(s)
Master (outer) case net weight	10.2 kg
Harmonized System (HS) code	7616991099
