Neomounts WL35S-950BL19 Heavy duty wall mount 55-115" - tiltable - lockable - landscape and portrait

Neomounts WL35S-950BL19 Tiltable heavy duty wall mount - 55-115" screen - max 160 kg - VESA 100x100-1500x900 - d 9 cm - level adjustment - lockable (incl. security screw, excl. lock) - landscape and portrait - black

Description

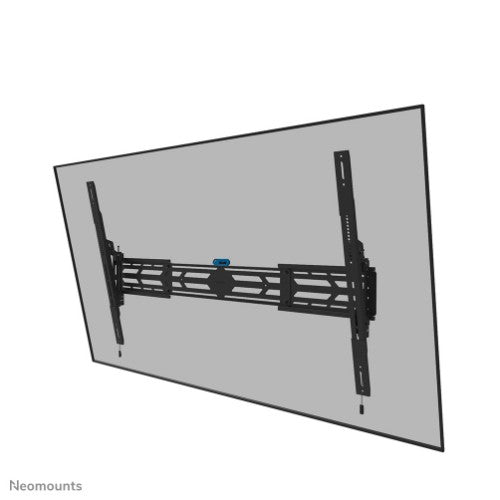

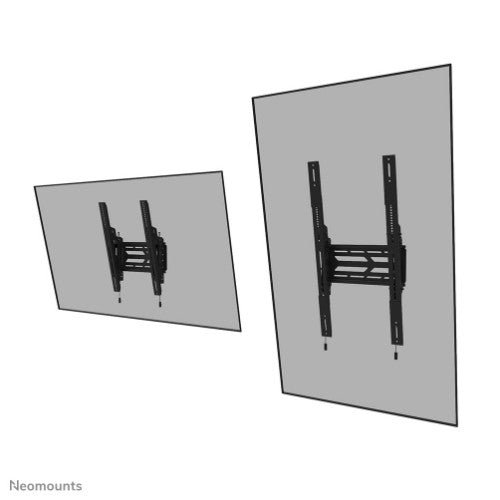

The Neomounts WL35S-950BL19 is a tiltable heavy-duty wall mount for flat screens up to 115" with a maximum weight capacity of 160 kg. The versatile tilt technology, with 3 lockable tilt presets (4°, 8° and 12°), allows you to create the optimum viewing angle. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.

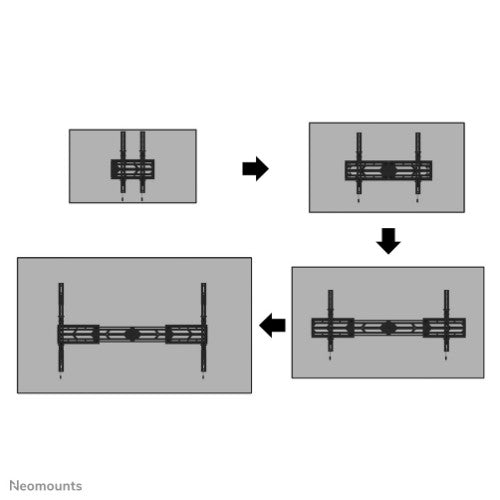

The WL35S-950BL19 has a depth of 8,8 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 115". It is possible to lock the mount using a padlock (not included).

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.

Specifications

Mounting
Maximum weight capacity (per display)	160 kg
Mounting type	Wall
Minimum screen size	139.7 cm (55")
Panel mounting interface	1000 x 400,1000 x 600,1000 x 800,1000 x 700,100 x 200,100 x 100,100 x 150,1200 x 600,1200 x 800,1200 x 900,1400 x 800,1500 x 900,1500 x 600,200 x 100,200 x 200,200 x 300,200 x 400,300 x 900,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,460 x 640,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,800 x 800,800 x 200,800 x 400,800 x 500,800 x 600,900 x 600
Number of displays supported	1
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	1500 x 900 mm
Maximum screen size	2.92 m (115")
Maximum weight capacity	160 kg
Ergonomics
Height adjustment	Yes
Height adjustment range	0 - 20 mm
Tilt angle range	0 - 12°
Angle of rotation	6°
Pivot angle	-3 - 3°
Distance to the wall (max)	9 cm
Tilt adjustment	Yes
Technical details
Angle of rotation	6°
Pivot angle	-3 - 3°
Number of displays supported	1
Distance to the wall (max)	9 cm
Product colour	Black
Mounting type	Wall
Width adjustment range	893 - 1600 mm
Country of origin	China
Package net weight	12.5 kg
Master (outer) case net weight	22.1 kg
Warranty period	5 year(s)
Lockable	Security screw included
Design
Accepts padlock	Yes
Product colour	Black
Housing material	Steel
Weight & dimensions
Width	1600 mm
Depth	90 mm
Height	936 mm
Weight	11.1 kg
Depth (max)	9 cm
Packaging data
Package width	222 mm
Package depth	98 mm
Package height	918 mm
Package weight	12.5 kg
Logistics data
Master (outer) case width	211 mm
Master (outer) case length	242 mm
Master (outer) case height	938 mm
Master (outer) case gross weight	25.7 kg
Products per master (outer) case	2 pc(s)
Master (outer) case net weight	22.1 kg
Products per pallet (EU)	36 pc(s)
Harmonized System (HS) code	7326909890
Other features
Mounting type	Wall
Width adjustment range	893 - 1600 mm
Country of origin	China
