Netgear | SKU:
GS748PP-100EUS

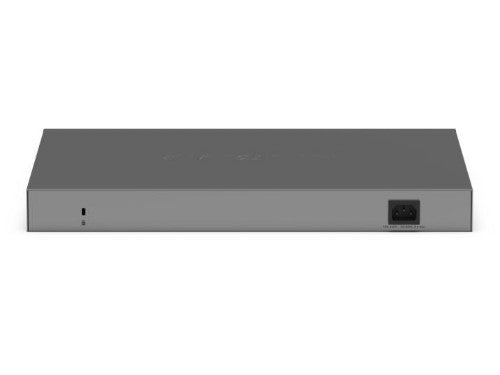

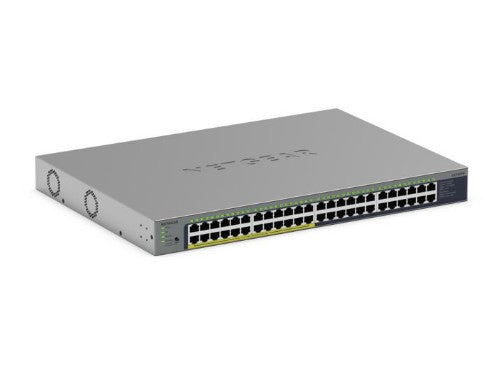

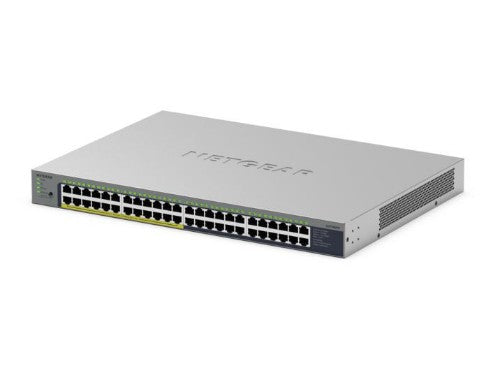

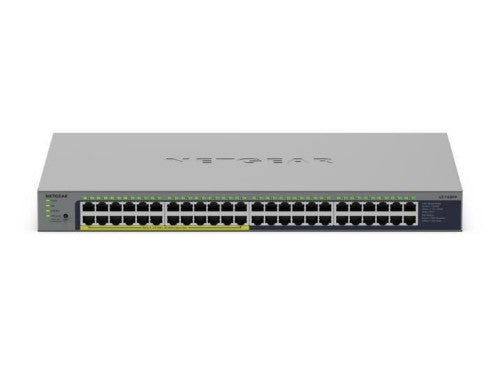

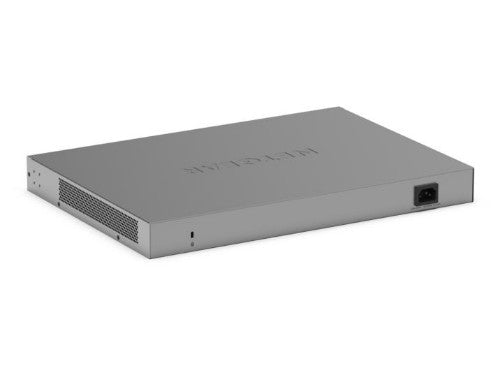

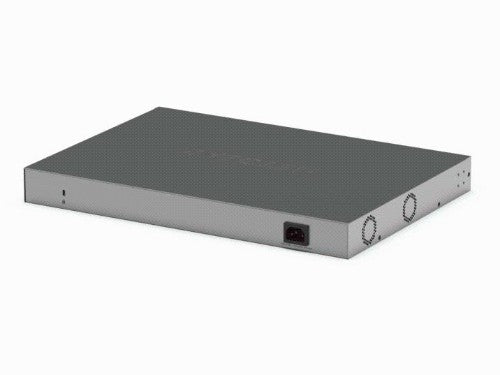

NETGEAR GS748PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
€577.62
Unit price
/
Unavailable
Shipping calculated at checkout.
NETGEAR GS748PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
48-Port, 1 Gbit/s, 8K, 1.5 MB, 380 W, 0-50°C, Grey, 440 x 310 x 43 mm, 4.6 kg
24 PoE+ ports delivering up to 30W per port with a 380W total power budget for wireless APs, IP Cameras, IP Phones and much more. Dynamic PoE maximizes usage of PoE budget.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
DYNAMIC FANS
Optimal balance between noise and performance.
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your rack with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Key Features
- 48 x Gigabit Ethernet ports with 24 ports of PoE+
- Plug and play switch, no management required
- Energy Efficient Ethernet for maximum power savings
- Dynamic fans for quiet operation
- Rackmount or desktop
Description
POWER-OVER-ETHERNET24 PoE+ ports delivering up to 30W per port with a 380W total power budget for wireless APs, IP Cameras, IP Phones and much more. Dynamic PoE maximizes usage of PoE budget.
PLUG-AND-PLAY
Simple set up with no software to install or configuration needed
NON-BLOCKING SWITCHING
Non-blocking switching architecture for maximum throughput at wire speed
DYNAMIC FANS
Optimal balance between noise and performance.
VERSATILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your rack with the hardware provided in the box
ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| MIB support | RFC 1213 MIB II, RFC 1643, RFC 1493 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology | 10BASE-T |
| I/O ports | 48 x 10/100/1000 Mbps 4 x SFP |
| Network | |
| Copper ethernet cabling technology | 10BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3az |
| Full duplex | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Data transmission | |
| Jumbo frames | 12.288 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Design | |
| Safety | CE mark, cUL IEC950/EN60950 |
| Product colour | Grey |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Redundant fans support | Yes |
| Performance | |
| Mean time between failures (MTBF) | 570972 h |
| Packet buffer memory | 1.5 MB |
| Power | |
| Power consumption (max) | 410 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 8 A |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 380 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Latency | 2,900ns |
| Connectivity technology | Wired |
| Bandwidth | 96 Gbit/s |
| Authentication method | 802.1x |
| I/O ports | 48 x 10/100/1000 Mbps 4 x SFP |
| Electromagnetic emissions | CE mark, FCC Part 15 Class A, VCCI Class A, C-Tick |
| Warranty period | 2 year(s) |
| Ethernet LAN data rates | 1000 Mbit/s |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 34.2 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 310 mm |
| Height | 43 mm |
| Weight | 4.6 kg |
| Technical details | |
| Product colour | Grey |
| Mean time between failures (MTBF) | 570972 h |
| Rack mounting | Yes |
| Warranty period | 2 year(s) |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), KC, Low Voltage Directive (LVD), RCM, UL, VCCI |
| Certificates | |
| Safety | CE mark, cUL IEC950/EN60950 |
| Electromagnetic emissions | CE mark, FCC Part 15 Class A, VCCI Class A, C-Tick |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), KC, Low Voltage Directive (LVD), RCM, UL, VCCI |
| Memory | |
| Packet buffer memory | 1.5 MB |
