Newland | SKU:
NLS-FM3080V2-20

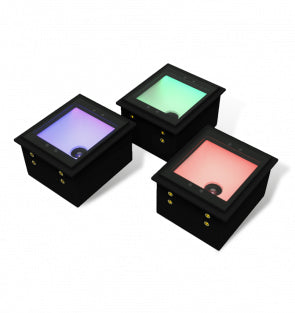

Newland FM30 Fixed bar code reader 1D/2D CMOS Black
€105.13
Unit price
/
Unavailable
Shipping calculated at checkout.
Newland FM30 Fixed bar code reader 1D/2D CMOS Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Products shipped within 2 working days from date of order.
Costs
0-24.99kg €14.50
25kg – 50kg €35.00
50kg and Up €60.00
No Customs Charges
No Customs Charges
Deliveries from Ireland & EU meaning no unwanted customs charges. No hidden charges.
800 x 800, CMOS, 1D/2D, USB, IP65, 78.7 x 67.7 x 47.5 mm, 132g
The FM3080 Hind is armed with Newland’s sixth-generation of UIMG® technology. This CPU-based scanner excels at reading on-screen barcodes that contain a large amount of data.
Instant visual feedback.
With up to 4 color options available, the white scanning window of the FM3080 Hind can light up each scan. It can be programmed for different barcodes, a successful read, or to match your company brand.
Small form factor.
Dimensions of 78.7 x 67.7 x 47.5mm make the FM3080 Hind the smallest of the FM30 series. As a result, it takes up minimal space in a kiosk or at the POS.
IR and light sensors.
In order to achieve higher productivity, the FM3080 Hind has a combination of an IR sensor and light sensor. This combination creates improved sensitivity in activating the scanner to scan the presented barcode.
IP65 sealing.
The FM3080 Hind possesses a high IP-rating of IP65, making it resistant to water and dust.
Anti Reflection
The updated FM3080 Hind has a coating on the underside of the glass to reduce the reflection and glare, making reading barcodes from screens, even snappier and user friendly.
Key Features
- 1D & 2D
- Mobile Reading
- Visual Feedback
- CMOS
- Dual Interface
- IP65
- Infrared
- EasySet
Description
Snappy on-screen barcode capture.The FM3080 Hind is armed with Newland’s sixth-generation of UIMG® technology. This CPU-based scanner excels at reading on-screen barcodes that contain a large amount of data.
Instant visual feedback.
With up to 4 color options available, the white scanning window of the FM3080 Hind can light up each scan. It can be programmed for different barcodes, a successful read, or to match your company brand.
Small form factor.
Dimensions of 78.7 x 67.7 x 47.5mm make the FM3080 Hind the smallest of the FM30 series. As a result, it takes up minimal space in a kiosk or at the POS.
IR and light sensors.
In order to achieve higher productivity, the FM3080 Hind has a combination of an IR sensor and light sensor. This combination creates improved sensitivity in activating the scanner to scan the presented barcode.
IP65 sealing.
The FM3080 Hind possesses a high IP-rating of IP65, making it resistant to water and dust.
Anti Reflection
The updated FM3080 Hind has a coating on the underside of the glass to reduce the reflection and glare, making reading barcodes from screens, even snappier and user friendly.
Specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Plessey, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Micro QR Code, PDF417, QR Code |
| Yaw reading angle | 0 - 360° |
| Sensor type | CMOS |
| Scanner type | 1D/2D |
| Pitch reading angle | -40 - 40° |
| Optical sensor resolution (W x H) | 800 x 800 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
| Protection features | Electrostatic Discharge (ESD) protection |
| LED indicators | Yes |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Certification | FCC Part15 Class B, CE EMC Class B |
| Buzzer | Yes |
| Design | |
| Type | Fixed bar code reader |
| Protection features | Electrostatic Discharge (ESD) protection |
| LED indicators | Yes |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Certification | FCC Part15 Class B, CE EMC Class B |
| Power | |
| Power consumption | 250 mA |
| Power source type | USB |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 78.7 mm |
| Depth | 67.7 mm |
| Height | 47.5 mm |
| Weight | 132 g |
| Technical details | |
| Type | Fixed bar code reader |
| Protection features | Electrostatic Discharge (ESD) protection |
| LED indicators | Yes |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Certification | FCC Part15 Class B, CE EMC Class B |
| Buzzer | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
